LC PC Single Mode Fiber Connectors High Credibility Simplex Fiber Optic Connector
Product Details
| Type: | Fiber Optic Connector | Connector Type: | LC/UPC,PC |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network | Color: | Bule |
| Connector: | LC | Certification: | CE RoHS SGS |
| Highlight |
LC PC Single Mode Fiber Connectors,Simplex Single Mode Fiber Connectors,High Credibility Simplex Fiber Optic Connector |
||
Product Description

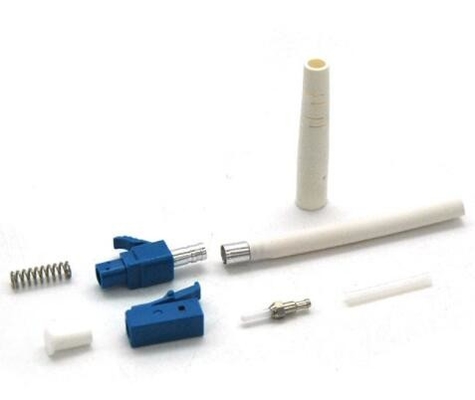

LC/PC Singlemode Simplex Fiber Optic Connector with 0.9/2.0/3.0mm boot
Feature
1. High quality zirconium dioxide ceramic ferrule.
2. Mature production technology and facility, stable interchangeability and repeatability.
3. The length, outer diameter, ferrule end face and adapter customizable.
4. Low insertion loss, high return loss
5. High dense connection, easy for operation
6. High credibility and stability
7. Good in repeatability and exchangeability
8. 100% test before shipment
Specifications
|
Parameter |
Unit |
FC,SC,LC |
ST,MU |
MT-RJ,MPO |
|||||||
|
SM |
MM |
SM |
MM |
SM |
MM |
||||||
|
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
||
|
Insertion loss |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
|
Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥50 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
|
Operating Wavelength |
nm |
1310,1550 |
1310,1550 |
1310,1550 |
|||||||
|
Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
|||||||
|
Vibration |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
|||||||
|
Operating temperature |
℃ |
-40～+75 |
-40～+75 |
-40～+75 |
|||||||
|
Storage temperature |
℃ |
-40～+85 |
-45～+85 |
-45～+85 |
|||||||
|
Cable diameter |
mm |
φ3.0,φ2.0,φ0.9 |
φ3.0,φ2.0,φ0.9 |
φ3.0,φ2.0,φ0.9 |
|||||||
Connector Installation Steps
Application
Telecommunication System
Fiber Optic Access
LAN
Fiber data transmission
CATV Networks
