LC 0.9 Fiber Patch Cord Connectors OM4 OM3 SM MM Low Insertion Loss
Product Details
| Product Name: | Optical Fiber Pigtail Optic LC 0.9 Connector Parts | Connector Type: | LC |
|---|---|---|---|
| Type: | Fiber Optic Connectors | Fiber Type: | SM OM1 OM2 OM3 OM4 |
| Custom Design: | Welcome | Application: | FTTX,CATV Metro,LAN |
| Use: | Patch Cord,PLC Splitter,Pigtail | Advantage: | Best Price,Best Service |
| Highlight |
LC 0.9 Fiber Patch Cord Connectors,OM4 OM3 Fiber Patch Cord Connectors,SM MM Fiber Optic Pigtail Connector |
||
Product Description

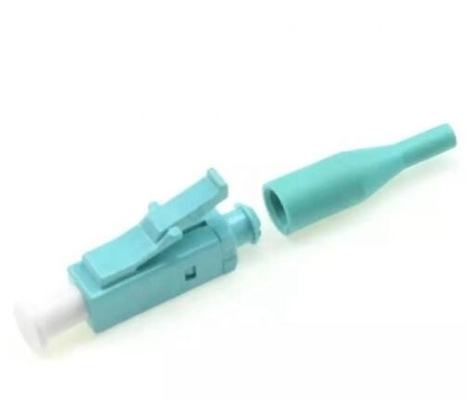

Optical fiber pigtail optic LC 0.9 connector parts OM4 OM3 SM MM LC 0.9 boot connector
Feature
• Low insertion loss,high return loss
• Excellent Temperature stability
• Good repeatability and exchangeability
• Excellent mechanical endurance
• Strict curing time and temperature control
• Strict testing standards and methods for quality
• Environment protection (ROHS Compliance)
• The fiber optical patch cord can be customized according to customers'specific
requirements (Customized Connector/Length/package...)
• 100% NEW raw material and well quality control ensure the best life time.
Description
|
Product Name |
Optical fiber pigtail optic LC 0.9 Connector Parts |
|
Model Number |
LC 0.9 fiber optic connector |
|
Fiber Type |
SM OM1 OM2 OM3 OM4 |
|
Connector Type |
LC |
|
Insertion Loss |
≤0.3dB |
|
Return Loss |
≥50dB |
|
Application |
FTTX,CATV Metro,LAN |
|
Form of sale |
OEM/ODM |
|
Use |
Patch cord,PLC splitter,Pigtail |
|
Custom Design |
Welcome |
|
Sample Lead Time |
1 day |
|
Sample Price |
As per sample details |
|
Certificate |
ROHS,SGS,CE |
|
Advantage |
Best price,Best service |
|
Feature |
1. pass high&low temperature test |
Specifications
|
Parameter |
Unit |
FC,SC,LC |
ST,MU |
MT-RJ,MPO |
|||||||
|
SM |
MM |
SM |
MM |
SM |
MM |
||||||
|
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
||
|
Insertion loss |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
|
Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥50 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
|
Operating Wavelength |
nm |
1310,1550 |
1310,1550 |
1310,1550 |
|||||||
|
Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
|||||||
|
Vibration |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
|||||||
|
Operating temperature |
℃ |
-40～+75 |
-40～+75 |
-40～+75 |
|||||||
|
Storage temperature |
℃ |
-40～+85 |
-45～+85 |
-45～+85 |
|||||||
|
Cable diameter |
mm |
φ3.0,φ2.0,φ0.9 |
φ3.0,φ2.0,φ0.9 |
φ3.0,φ2.0,φ0.9 |
|||||||
