80rpm Patchcords Making Fiber Optic Polisher With High Efficiency
Product Details
| Pressure Source: | Coil Spring | Input Voltage(V): | 100-120 AC/220-240 AC |
|---|---|---|---|
| Capacity: | 48(LC UPC)；36(SC,FC）;24(MPO And MTRJ) | Dimensions(mm): | 390*310*370 |
| Weight(Kg): | 28.5 | Noice: | Unloading Less 50 DB |
| Highlight |
SS Fiber Optic Polisher,50dB Fiber Optic Polisher,80rpm Fiber Optic Connector Polishing Machine |
||
Product Description

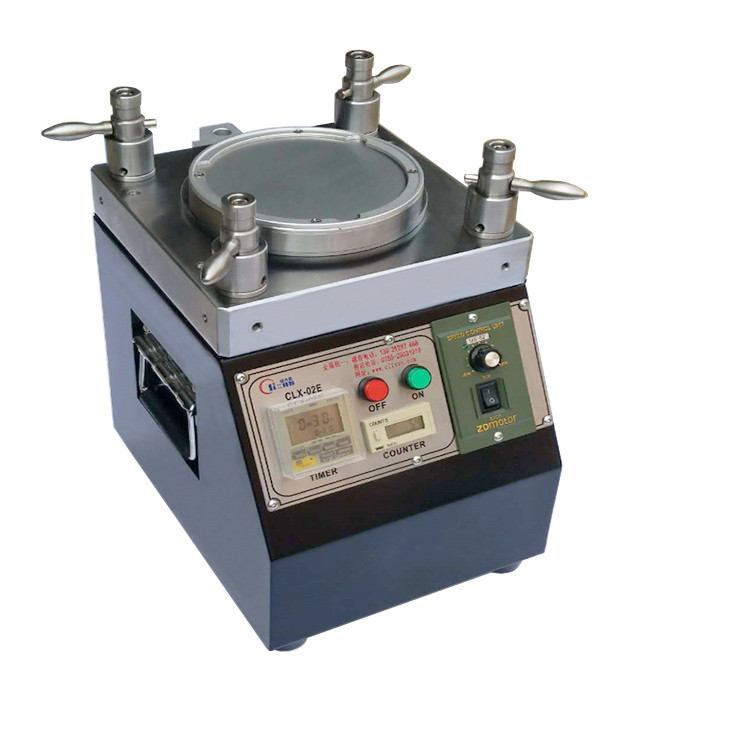

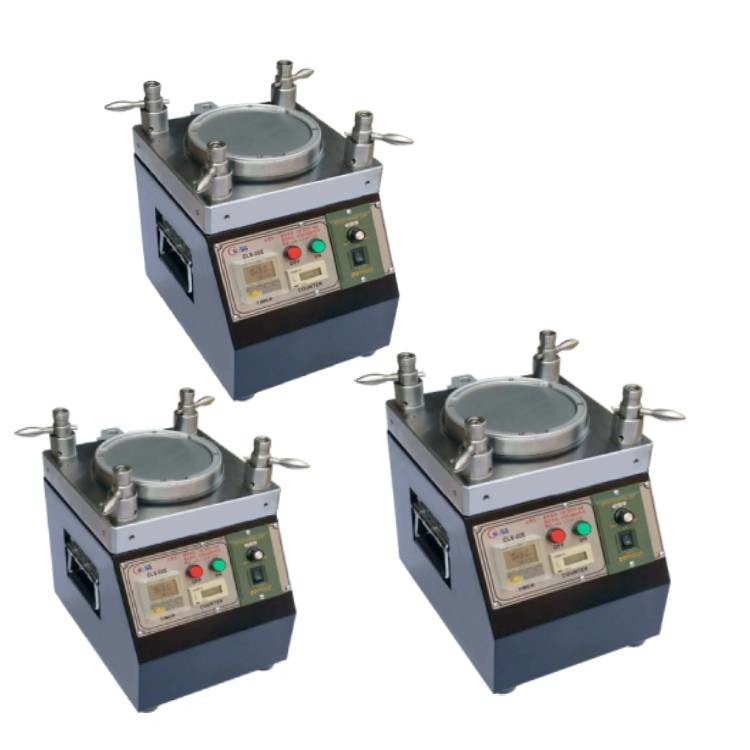

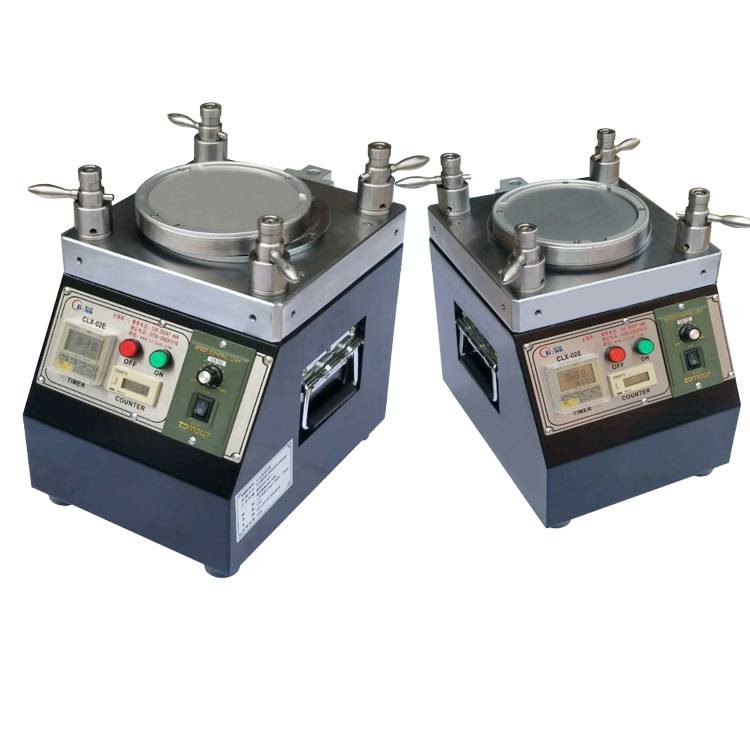

Fiber Optic Polisher,CLX-02E is corner pressure polishing machine for fiber connectors
Factory Price Fiber Optic Grinding Equipment Fiber Optical Polishing Machine
Model:CLX-02E
Place of Origin:ShenZhen,China
Product Description of Fiber Jumper Polishing Machine
Polishing Machine Fiber Optic Features
1. The high quality stainless steel material after heat-treatment ensures the high precision & durability of the machine,Excellent stability, Eight or ten years lifetime
2. APC return loss ≥60dB , PC(UPC)return loss ≥55dB , Insertion loss ≤0.20dB ( typical)
3. The polishing trails obey the planet orbit. Polishing rotation speed is adjustable with normally 140RPM.
4. The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber optic connector polishing 3D pass rate> = 98% (100% Typical, according to IEC),
5. High efficiency, The first pass yield for end face quality reach 98%～100%.
Specifications of Fiber Optic Polishing Machine
| 1. Model Number | CLX-02E |
| 2. Machine Size | 285*220*338mm |
| 3. O.D. of Rotation Plate | 127 mm(5 inch) |
| 4. Time Settings | 99 min 99 sec (Max) |
| 5. Speed for Rotation Plate | 80 rpm |
| 6. Height of Plate Jumpiness | <10 um |
| 7. Pressure Configuration | 21 ~ 36 N/cm2 |
| 8. Work Temperature | 10℃~40℃ |
| 9. Relative Humidity | 15%~85% |
| 10. Noice | unloading Less 50 dB |
| 11. Libration | Working Status 0.25g 5~100Hz 10min |
| 12. Stopping Status | 0.50g 5~100Hz 10min |
| 13. Power Input | 110~230 VAC 50Hz/60Hz |
| 14. Electric Power | 126W |
| 15. Net Weight | 27kg |
| 16. Materials | stainless steel |
| 17. Lnsertion Loss | ≤0.20dB |
| 18. Return Loss | ≥55dB(UPC,PC) ≥60dB (APC) |
About shipping
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity
FAQ
1. Are you a factory or a trader?
......we are factory.
2. What is your MOQ?
......MOQ 1 piece.
3. Do you provide sample services?
......Yes, we will provide samples.
4. How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity
5. How do we pay?
......Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
......Yes, we provide customized services, According to customer requirements and description.
Features
1. Square-pressure type polishing machines ensures adjustable,precise and even polishing.
2. Adjustable speed,direction and pressure.
3. Pucks available in most connectors type and for APC.
