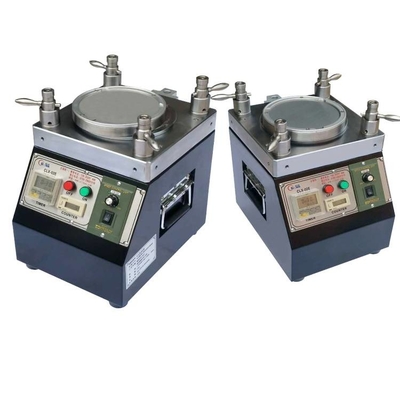

High Efficiency Fiber Optic Polishing Machine For Patchcords Making 110W
Product Details
| Brand: | Chuanglixun | Model: | CLX-02E |
|---|---|---|---|
| Weight(Kg): | 28.5 | Application: | Optical Fiber Patch Cord Manufacturing |
| Product Name: | Fiber Optic Polisher | Power Consumption: | 110W |
| Highlight |
Adjustable Speed Fiber Optic Polishing Machine,110W Fiber Optic Polishing Machine,110W Fiber Optic Polisher |
||
Product Description
Fiber Optic Polisher,CLX-02E is corner pressure polishing machine for fiber connectors
Factory Price Fiber Optic Grinding Equipment Fiber Optical Polishing Machine
Model:CLX-02E
Place of Origin:ShenZhen,China
Product Description of Fiber Optic Polishing Machine
Polishing Machine Fiber Optic Features
1. Made of durable material, long service life
2. Fast speed, adjustable speed
3. Cooperate with our grinding fixture, one-time pass rate is high
4. Supports polishing of various types of optical connectors, such as SC,LC,FC,ST,MPO, and bare core
Specifications of Fiber Optic Polishing Machine
| 1. Model Number | CLX-02E |
| 2. Machine Size | 285*220*338mm |
| 3. O.D. of Rotation Plate | 127 mm(5 inch) |
| 4. Time Settings | 99 min 99 sec (Max) |
| 5. Speed for Rotation Plate | 80 rpm |
| 6. Height of Plate Jumpiness | <10 um |
| 7. Pressure Configuration | 21 ~ 36 N/cm2 |
| 8. Work Temperature | 10℃~40℃ |
| 9. Relative Humidity | 15%~85% |
| 10. Noice | unloading Less 50 dB |
| 11. Libration | Working Status 0.25g 5~100Hz 10min |
| 12. Stopping Status | 0.50g 5~100Hz 10min |
| 13. Power Input | 110~230 VAC 50Hz/60Hz |
| 14. Electric Power | 126W |
| 15. Net Weight | 27kg |
| 16. Materials | stainless steel |
| 17. Lnsertion Loss | ≤0.20dB |
| 18. Return Loss | ≥55dB(UPC,PC) ≥60dB (APC) |
FAQ
1. Are you a factory or a trader?
......we are factory.
2. What is your MOQ?
......MOQ 1 piece.
3. How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity
4. How do we pay?
......Book in advance or multiple payment methods such as T / T and T / L.
5. How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
6. Do you provide customized services?
......Yes, we provide customized services, According to customer requirements and description.
