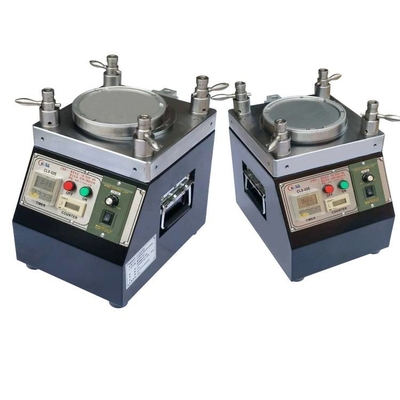

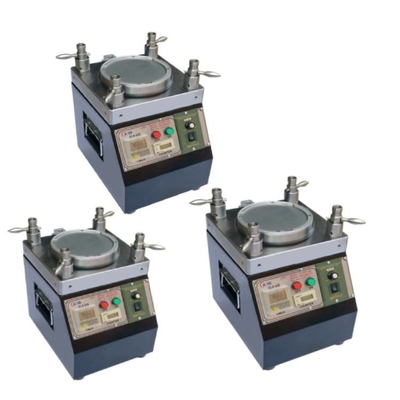

Seikoh Giken Grinder Patch Cords Fiber Optic Polishing Machine 50Hz / 60Hz
Product Details
| Product Name: | Fiber Optic Polishing Machine | Use: | Fiber Patch Cord Manufacture |
|---|---|---|---|
| Warranty Time: | 1 Years | Polishing Plate Size: | 127 Mm(5 Inch) |
| Polishing Capacity: | SC 36 Max, LC 52 Max | Net Weight: | 28 Kg |
| Highlight |
IEC Fiber Optic Polishing Machine,Fiber Optic Polishing Machine 50Hz,60Hz Fiber Optic Polisher |
||
Product Description
120w High Precision Fiber Optic Polishing Machine ClX-02E Patchcord Manufacturing Equipment
Seikoh Giken Grinder Patch Cords Polish Optical Polisher Fiber Optic Polishing Machine
Model:CLX-02E
Place of Origin:ShenZhen,China
Description
>CLX CE certified products
Specifications
| 1. Machine Size | 285*220*320mm |
| 2. O.D. of Rotation Plate | 127 mm(5 inch) |
| 3. Time Settings | 99 min 99 sec (Max) |
| 4. Speed for Rotation Plate | 80 rpm |
| 5. Height of Plate Jumpiness | <10 um |
| 6. Pressure Configuration | 21 ~ 36 N/cm2 |
| 7. Work Temperature | 10℃~40℃ |
| 8. Relative Humidity | 15%~85% |
| 9. Noice | unloading Less 50 dB |
| 10. Libration | Working Status 0.25g 5~100Hz 10min |
| 11. Stopping Status | 0.50g 5~100Hz 10min |
| 12. Power Input | 220~230 VAC 50Hz/60Hz |
| 13. Electric Power | 120W |
| 14. Net Weight | 28kg |
| 15. Materials | stainless steel |
Applications
1. ZrO2 Ceramic Ferrules
2. Quartz capillary
3. Glass materials
4. Stainless steel and titanium alloy
5. Colophony material
FAQ
1.About the fixture of CLX-02E, does it works perfect with the Seikoh Giken 550 fiber optic polishing machine ?
2.Polisher can’t work?
(1)Confirm power, and examine speed adjusting knob.
(2)Whether the timer stop at ZERO.
(3)Whether fuse is OK or not.
3.Polished ferrules could not reach required shape or quality.
(1)Film is used over 40 times.
(2)Water doesn’t be used.
(3)Films are not cleaned completely.
(4)Ferrules and jig are not fixed correctly.
(5)The distance adjustment between screw top and Plane A is not correct.
4.Bad quality for the polished surface.
(1)Film is used over 40 times.
(2)Polishing liquid is not used.
(3)Film is dirty.
(4)Ferrules are not cleaned completely.
(5)Scraped by film when pulling out the ferrules.
5.How can we guarantee quality?
(1)Always a pre-production sample before mass production;
(2)Always final Inspection before shipment;
6.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
