Patch Cord Production Line Fiber Optic Polisher High Precision 110-230VAC
Product Details
| Product Name: | Fiber Optic Production Machine | Application: | Fiber Optic Patchcord Manufacturing |
|---|---|---|---|
| Machine Size: | L 240(mm) X W 240(mm) X H 260(mm) | Electric Power: | 126W |
| Net Weight: | 28 Kg | Power Input: | 110~230 VAC 50Hz/60Hz |
| Highlight |
230V Fiber Optic Polisher,High Precision Fiber Optic Polisher,110V Fiber Optic Polishing Machine |
||
Product Description
120w High Precision Fiber Optic Polishing Machine ClX-02E Patchcord Manufacturing Equipment
Model:CLX-02E
Place of Origin:ShenZhen,China
Quick Detail
1. High-precision Fiber Optic Polishing Equipment.

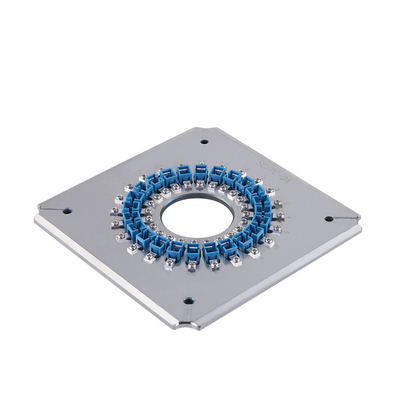

2. Can Quickly change polishing jigs.
3. The polishing trails obey the planet orbit. Polishing rotation speed is adjustable with normally 140RPM.
4. Maximum polishing capacity reaches 48 pcs for MU and LC connectors. And for SC, FC, ST. it reaches 36 pcs.
5. High efficiency, The first pass yield for end face quality reach 98%～100%
Specifications
| 1. Machine Size | 285*220*320mm |
| 2. O.D. of Rotation Plate | 127 mm(5 inch) |
| 3. Time Settings | 99 min 99 sec (Max) |
| 4. Speed for Rotation Plate | 80 rpm |
| 5. Height of Plate Jumpiness | <10 um |
| 6. Pressure Configuration | 21 ~ 36 N/cm2 |
| 7. Work Temperature | 10℃~40℃ |
| 8. Relative Humidity | 15%~85% |
| 9. Noice | unloading Less 50 dB |
| 10. Libration | Working Status 0.25g 5~100Hz 10min |
| 11. Stopping Status | 0.50g 5~100Hz 10min |
| 12. Power Input | 220~230 VAC 50Hz/60Hz |
| 13. Electric Power | 120W |
| 14. Net Weight | 28kg |
| 15. Materials | stainless steel |
Applications
1. ZrO2 Ceramic Ferrules
2. Quartz capillary
3. Glass materials
4. Stainless steel and titanium alloy
5. Colophony material
FAQ
1. Are you a factory or a trader?
......we are factory.
2. What is your MOQ?
......MOQ 1 piece.
3. Do you provide sample services?
......Yes, we will provide samples(Samples at prices announced by chuanglixun).
4. How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity
5. How do we pay
......Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
......Yes, we provide customized services, According to customer requirements and description
