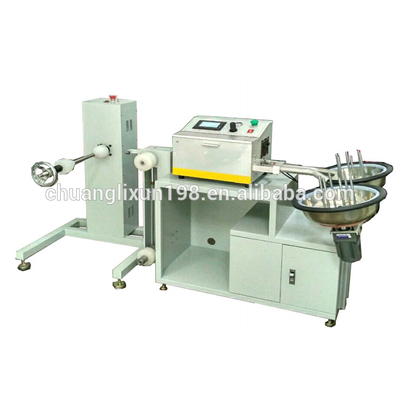

Fiber Optic Cable Automatic Cutting Machine For Fibre Patch Cords Production Line
Product Details
| Type: | Fiber Optic Production Machine | Power Input: | 220V,50/60Hz |
|---|---|---|---|
| Weight: | 175kg | Dimension::: | 190cm X 73cm X 125cm |
| Warranty Time: | 1 Year | Power: | 450W |
| Highlight |
Fiber Optic Cable Automatic Cutting Machine,220V Fiber Optic Automatic Cutting Machine,450W Fibre Patch Cords Manufacturing Machine |
||
Product Description
China Supplier Fiber Optic Cable automatic Cutting Machine for Fibre Patch Cords Production Line
Model:CLX-94
Place of Origin:ShenZhen,China
Drop Wire Optical Cable Cutting Machine Key Features:
1, High Automation: Auto running for full process from raw cable to final section.
2, High Length Accuracy: Meter Wheel to count length, no length deviation from cable twist, slip during feeding. By high precision measurement of compensation to measure.
3, High Efficiency: Less than 15 sections for typical 10m.
4, Easy Operation: Single button to start/stop/pause running. Two Separated instruments for length and quantity setup. Performance manual buttons down all kinds of movements, convenient for specific assignment.
5, Stable performance: Robust mechanical structre intellectual controller for super reliable movement.
6, Efficient Cut: Patented design for super reliable and complete trim of super fine fiber.
7, Correction Function: Convenient for the length of the staff college checked.
8, Protecting Fiber: Maximum reduce the work process of stress on the optic cable.(Vertical and horizontal cut up).
9. Customized language: Chinese / English / Korea or other.
10. Easy to handle and Low noise.
optic cable cutting MachineTechnical Parameters:
|
Capacity |
| Operation System | Chinese & English, Touch Screen |
| Cutting Length | 1 to 999 mtrs |
| Cable Diameter | Φ0.9mm to Φ6.0 mm(max) |
| Cable Type | Jacket fiber, Ribbon Fiber, UTP, CAT6 |
| Running Speed(m/s) | 0.5 - 1.6 meters per second |
| Length Accuracy | no more than 3% |
| Power Consumption | 450 Watt, 220V AC, 50/60Hz |
| Pressure Source | 0.4 to 0.6Mpa |
| Load Weight | Less than 40 kgs |
| Cable Drum OD | Φ500 mm (max) |
| Cable Drum ID | 23 ~ 80 mm |
| Cable Collection Bowl Size | Φ180*110 mm |
| Assembled Machine Size | 190cm * 73cm * 125cm |
| Net & Gross Weight | 134 kgs / 175kgs |
Remark: If you have special requirement, please feel free to contact us.
FAQ
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
-MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples.
4. How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay?
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
