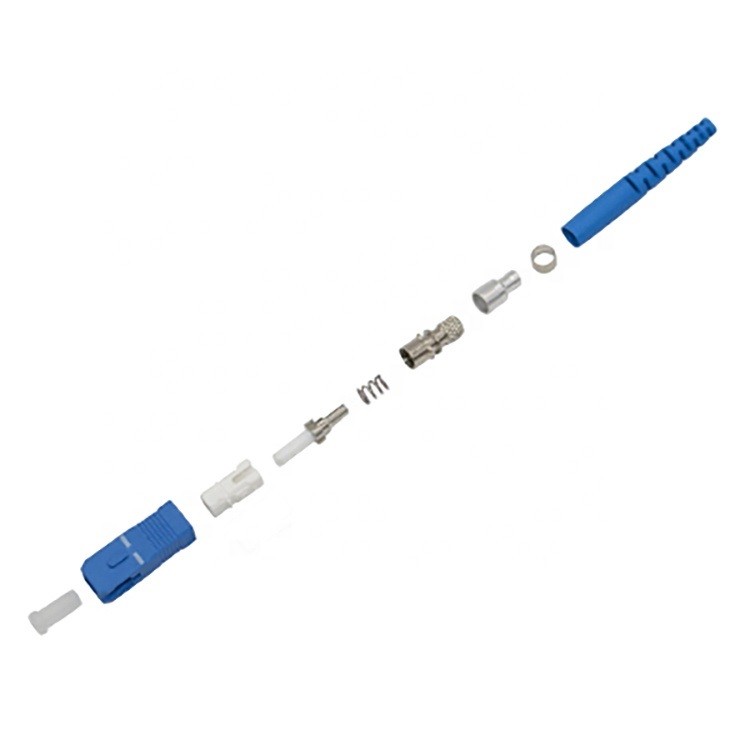

FTTH Singlemode Simplex SC PC Fiber Optic Connector 2.0mm / 3.0mm
Product Details
| Type: | Fiber Optic Connector | Application: | Optical Fiber Patch Cords Manufacturing |
|---|---|---|---|
| Fiber Type: | SM MM | Return Loss: | PC≥45dB, UPC≥50dB,APC≥60dB |
| Insertion Loss: | 0.2dB(SM), 0.3dB(MM) | Material: | PBT |
| Highlight |
FTTH Fiber Optic Connector,2.0mm Fiber Optic Connector,3.0mm Fiber Patch Cord Connectors |
||
Product Description
FTTH 2.0mm/3.0mm singlemode simplex SC PC Fiber Optic Connector
Fiber Optical Connector SC Product Description:
1. Environmentally friendly materials: aluminum and plastic.
and MTRJ applications. Both pre-assembled connector and connector kits are available. Each fiber optic connector is functionally
tested before shipping.
0.9mm Singlemode Simplex SC UPC Connector Specifications:
| Parameter | Unit | FC,SC,LC | ST,MU | MT-RJ,MPO | |||||||
| SM | MM | SM | MM | SM | MM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
| Insertion loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥50 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 |
| Operating Wavelength | nm | 1310,1550 | 1310,1550 | 1310,1550 | |||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Operating temperature | ℃ | -40～+75 | -40～+75 | -40～+75 | |||||||
| Storage temperature | ℃ | -40～+85 | -45～+85 | -45～+85 | |||||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 |
|||||||
SC Optical Fiber Connector Feature:
● Low insertion loss
● Good repeatability
● Good compatibility
● Minimum number of inserts 500 times
● All parts compliant with RoHs/REACH
● IEC standard compatible
● UL Flame Rating of 94V-0
● The color of the boot can be customized
Fiber Optic Connector Application:
● Anti-corrosion
● Cable TV network
● Durable
● In active device equipment
● Low insertion loss
● Optical fiber communication system.
● A variety of tail sleeve types and colors
● Optical fiber communication system.
● SC can provide 45 ° or 90 ° bend.
● Telecommunication network
● Local Area Networks (LANs)
● Wide Area Networks (WANs)
● System debugging
1.Are you a factory or a trader?
2.What is your MOQ?
......MOQ 1 piece.
3.Do you provide sample services?
......Yes, we will provide samples.
4.How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity .
......Book in advance or multiple payment methods such as T / T and T / L.
6.How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7.Do you provide customized services?
......Yes, we provide customized services, According to customer requirements and description.
