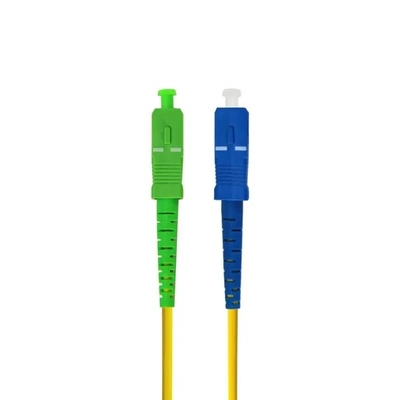

3.0mm Simplex LC LC Patch Cord SC APC To SC UPC PVC LZSH Jacket
SC/APC-SC/UPC Simplex 3.0mm Simplex Lc-Lc Optical Fiber Patch Cord
Model Number:SC/UPC-LC/UPC-SM-SX Patch Cord
Packaging Details:100pcs/carton for SC/APC-SC/UPC Simplex 3.0mm simplex lc-lc optical fiber patch cord
Port :Shenzhen/Guangzhou
Place of Origin:ShenZhen,China
Factory Manufacture
Description:
Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. Fiber Optic Patch Cable is important of optical network. They have same or different connectors which are installed on the end of fiber optic cable. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Product Features:
Screw-thread coupling mechanism
Ceramic ferrules
Low insertion loss, high return loss
Good in repeatability and exchangeability
100% Insertion, Return Loss, End Face and Interference inspection
Excellent mechanical endurance
High credibility and stability
Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard
How to choose right fiber cable?
PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
|
Designation |
Fiber Dia.(μm) |
Type |
Fast Ethernet 100BASE-FX |
1 Gigabit Ethernet 1000BASE-SX |
1 Gigabit Ethernet 1000BASE-LX |
10Gbps Ethernet 10GBASE |
40Gbps Ethernet 40GBASE SR4 |
|
OM1 |
62.5/125 |
Multimode |
2000 Meters |
275 Meters |
550 Meters |
33 Meters |
Not supported |
|
OM2 |
50/125 |
Multimode |
2000 Meters |
550 Meters |
550 Meters |
82 Meters |
Not supported |
|
OM3(Laser Optimized) |
50/125 |
Multimode |
2000 Meters |
550 Meters |
550 Meters |
300 Meters |
100 Meters(SR4) |
|
OM4(Laser Optimized) |
50/125 |
Multimode |
2000 Meters |
550 Meters |
550 Meters |
400Meters |
150 Meters(SR4) |
|
Singlemode |
9/125 |
Singlemode |
2000 Meters |
5km at 1310nm |
5km at 1310nm |
10km at 1310nm |
N/A |
How to correctly choose between PVC LSZH and OFNP?
Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks ,campuses and so on.
Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.
PVC cables: PVC cables have numerous advantages such as resistance to oxidation and degradation and are usually used for horizontal runs between flat floors.
LSZH cable: LSZH cable comes with a special flame retardant coating and has excellent fire safety properties with low smoke, toxicity and corrosion. It is used, like PVC cable, for horizontal runs between flat substrates.
OFNP cable: OFNP cable is the highest rated cable and is typically installed in air return pressurization systems used in ventilation ducts or air handling equipment in accordance with NFPA fire safety regulations. It is typically used for vertical runs between floors.

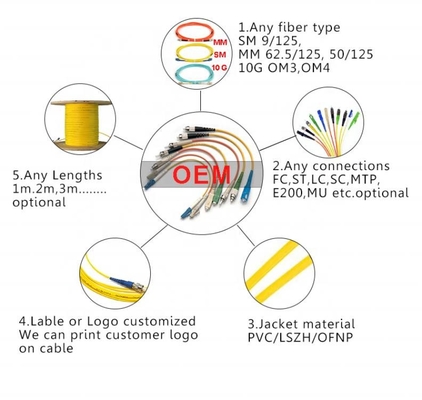

Ordering options

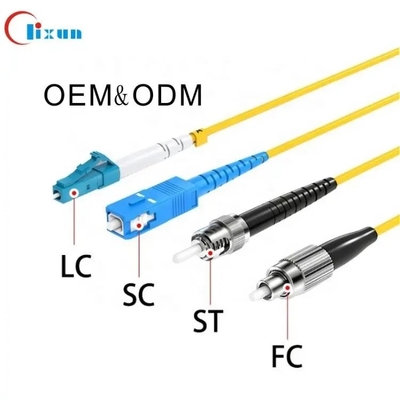

1) Connector type: FC, SC, LC, ST
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH.
