0.9mm 2.0mm 3.0mm Fiber Patch Cord Connectors SC APC Type For FTTX

200 Piece
MOQ
Negotiable
Price
0.9mm 2.0mm 3.0mm Fiber Patch Cord Connectors SC APC Type For FTTX
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Adapter & Connectors
Model Number: SC-APC
Application: Optical Fiber Patch Cords Manufacturing
Use: FTTX
Fiber Type: SM MM
Return Loss: PC≥45dB, UPC≥50dB,APC≥60dB
Insertion Loss: 0.2dB(SM), 0.3dB(MM)
Warranty Time & Connectors: 12 MONTHS
High Light:

0.9mm Fiber Patch Cord Connectors

,

SC APC Fiber Patch Cord Connectors

,

0.9mm SC APC Fiber Connector

Basic Infomation
Place of Origin: Guangdong,China
Brand Name: CLX
Model Number: SC-SM-SX-PC
Payment & Shipping Terms
Packaging Details: Bags packed by Carton ,OEM bag/Carton optional
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 1000000 Piece/week
Product Description

0.9mm 2.0mm 3.0mm Fiber Patch Cord Connectors SC APC Type For FTTX



Wirenet 0.9mm 2.0mm 3.0mm SC APC optical fiber connector



Fiber Optical Connector SC​ Product Description:

1. Environmentally friendly materials: aluminum and plastic.

2. other series:SC MU DIN APC Single-mode & multi-mode, SX & DX.
3. Lightweight, durable, and easy to use .
4. Insertion loss ≤ 0.2dB (SM & MM); Return loss: ≥55dB(UPC).
5. develop molds and produce various of kinds of Single Mode and Multi-mode fiber optic connectors for ST, SC, FC, LC, E2000, MPO, MU
and MTRJ applications. Both pre-assembled connector and connector kits are available. Each fiber optic connector is functionally
tested before shipping.



0.9mm 2.0mm 3.0mm Singlemode Simplex SC APC Connector Specifications:

Connector Type FC,SC,ST,LC,MPO,MTRJ etc
Operating Wavelength 850~1300nm, 1260-1650nm
Insertion Loss ≤0.20dB, Max 0.3dB
Return Loss PC45dB, UPC50dB,APC≥60dB
ferrule ceramic ferrule
Durability <0.1dB typical change,500 matings
Storage Temperature -40℃~+75
Operating Temperature -40℃~+75℃

Detailed Images

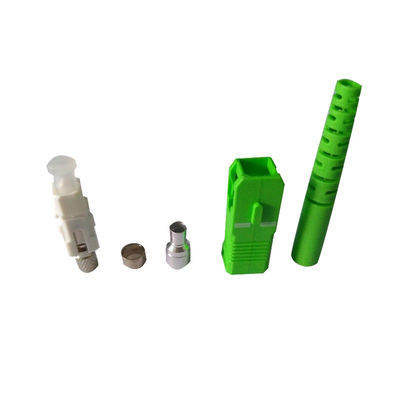

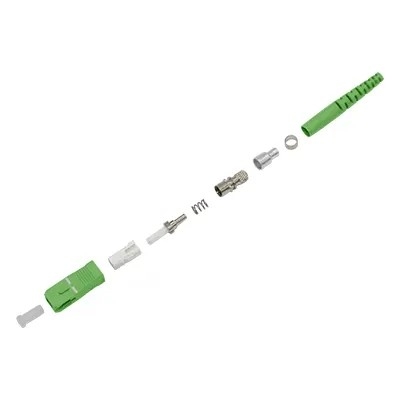

0.9mm 2.0mm 3.0mm Fiber Patch Cord Connectors SC APC Type For FTTX 00.9mm 2.0mm 3.0mm Fiber Patch Cord Connectors SC APC Type For FTTX 1

0.9mm 2.0mm 3.0mm Fiber Patch Cord Connectors SC APC Type For FTTX 2

Other Choice

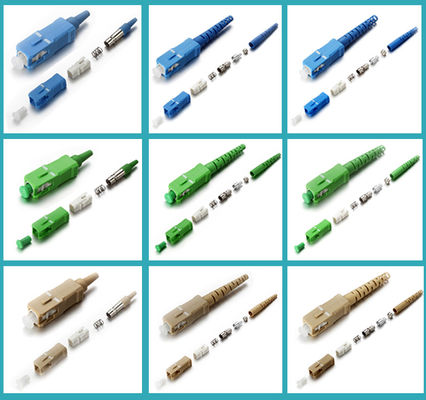

0.9mm 2.0mm 3.0mm Fiber Patch Cord Connectors SC APC Type For FTTX 3

SC Optical Fiber Connector Feature:
---Low insertion Loss and Back reflection loss
---RJ-45 style interface-
---Polarized and color coded (TIA568-A&ISO 11801)
---UL-rated plastic housing and boot
---Compact, pull-proof design
---Behind-the-Wall style short connector



Fiber Optic Connector​ Application:

•CATV
•Telecom Network
•Metro
•Multimedia
•Data processing
•Premise installation
•Gigabit Ethernet

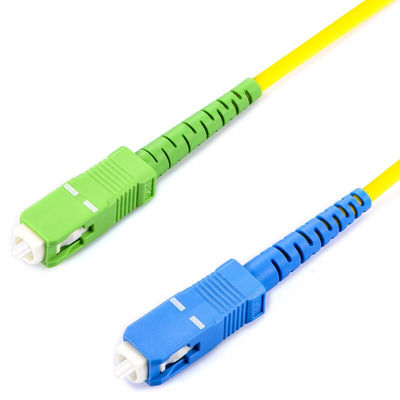

0.9mm 2.0mm 3.0mm Fiber Patch Cord Connectors SC APC Type For FTTX 40.9mm 2.0mm 3.0mm Fiber Patch Cord Connectors SC APC Type For FTTX 50.9mm 2.0mm 3.0mm Fiber Patch Cord Connectors SC APC Type For FTTX 60.9mm 2.0mm 3.0mm Fiber Patch Cord Connectors SC APC Type For FTTX 7

0.9mm 2.0mm 3.0mm Fiber Patch Cord Connectors SC APC Type For FTTX 8

0.9mm 2.0mm 3.0mm Fiber Patch Cord Connectors SC APC Type For FTTX 9

1.Are you a factory or a trader?

......we are factory.
2.What is your MOQ?
......MOQ 1 piece.
3.Do you provide sample services?
......Yes, we will provide samples.
4.How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity .
5.How do we pay?
......Book in advance or multiple payment methods such as T / T and T / L.
6.How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7.Do you provide customized services?
......Yes, we provide customized services, According to customer requirements and description.
0.9mm 2.0mm 3.0mm Fiber Patch Cord Connectors SC APC Type For FTTX 10
About shipping:

We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity
