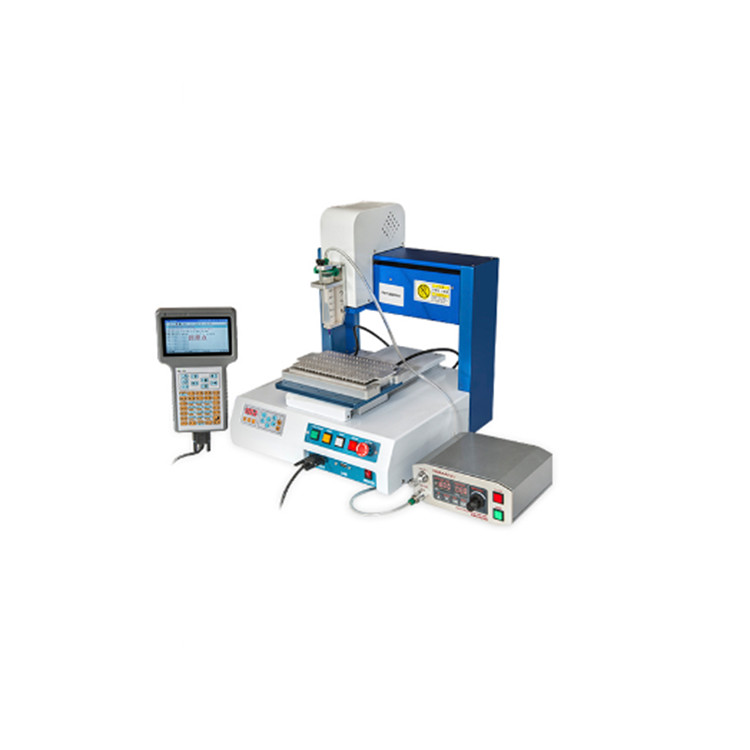

FTTH Fiber Patch Cord Manufacturing Machine Epoxy Injection Equipment

FTTH Fiber Patch Cord Manufacturing Machine Epoxy Injection Equipment

High Precision Efficiency Fiber Optic Equipment Automatic Fiber Optic Epoxy Injection Machine

Model:CLX-DJ02

Place of Origin:ShenZhen,China

Description

CLX-DJ02 semi-automatic dispenser is controlled by a film tap switch.Can adjust manual, semi-automatic state, the use of digital timing controller accurate to seconds, the correct control of flow, will not waste liquid material, it is easy to change each infusion volume and infusion time.It can solve many problems in stock development. It is simple to use and easy to operate. Equipped with vacuum suction function, it is not easy to fatigue, no waste, and has a wide range of use.

1. Microcomputer automatic control system is adopted for easy operation.
2. Uniquely designed tooling fixture, finishing the material in an instant
2. The XYZ axis adopts Japanese dispensing technology, and the dual guide rails support in parallel, with high transmission accuracy and stable performance.
3.The main steps of the movement adopt Japanese motor + American synchronous belt, Taiwan linear guide, high accuracy and long life.
4. Mainly applicable to most of the core insert injection of SC / LC / FC. The injection speed is fast (3600PCS / H), the consistency of the injection amount is strong, the glue amount is stable, saving manpower and material resources.

Specifications

Matching fixture

Acrylic sheet 1 Pieces

Ceramic ferrule discharge 3 Pieces

Cover 1 Pieces

Attention and maintenance:

1, Air pressure cant be more than 7bar(10psi), working air pressure cant be more than 5.5bar (78psi), if the working air pressurer is more than 4 bar, pls use the original parts from the manufacter.

2, The liquid material must be stired evenly before putting to the cyliner needle. It will be better if the liquid material can be stored at the stable temperature of 5 degree centigrade to make sure there is no big change in the density of the liquid material. If the density of the liquid is so high, ( it means the liquid is so viscous, it may be hard to spit out). If the liquid need to be diluted, pls compliant to the instruction of the liquid material manufacture.

3, Dont sharply increase the Vacuum, otherwise, the liquid will be pulled in the catheter by the vacuum. The qty of the vacuum pumpback rely on the air pressure level, working cycle, qty of the liquid to spit. If the qty of the vacuum is too much, the piston will be overset, disturbing the normal work.

4, Avoid to overset the liquid cylinder, otherwise, the liquid will flow to the air cylinder to destroy the internal aprt.

5, Pls clear the stuff left in the cylinder needel when needed. Otherwise the stuff will become hard, then disturbing the vacuum pumpback and stop the cylinder needle.

6, After using the machine, the cylinder needle need to be cleaned every time, otherwise, it is difficult to unload the needle when the liquid becomes hard. Normally, it is easy to remove the liquid from the inside of the cylinder needle, just dipping the parts in the hand water for 5~10minutes, all the part will be cleaned.

7, Pls disposal the used needle and cylinder needle at appropriate place to avoide some i nappropriate liquid pollution

FAQ

1.Are you a factory or a trader?

......we are factory.

2.What is your MOQ?

......MOQ 1 piece.

3.Do you provide sample services?

......Yes, we will provide samples(Samples at prices announced by chuanglixun).

4.How will you ship to me?

....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity

5.How do we pay

......Book in advance or multiple payment methods such as T / T and T / L.

6.How long is your product warranty?

......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.

7.Do you provide customized services?

......Yes, we provide customized services, According to customer requirements and description
