Rolling Drop Fiber Cable Cutting Machine , Automatic Fiber Cutting Machine

1 set
MOQ
Negotiable
Price
Rolling Drop Fiber Cable Cutting Machine , Automatic Fiber Cutting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Production Machine
Dimension::: 190cm X 73cm X 125cm
Power: 450W
Cable Diameter: 1.00mm To 9.00mm(max)
Cutting Length: 1 To 2000 Mtrs
Power Input: 220V,50/60Hz
Weight: 175kg
Operation System: Chinese & English, Touch Screen
Warranty Time: 1 Year
High Light:

1.00mm Fiber Cable Cutting Machine

,

CAT6 Fiber Cutting Machine

,

UTP Fiber Cutting Machine

Basic Infomation
Place of Origin: Guangdong,China
Brand Name: CLX
Model Number: CLX-94
Payment & Shipping Terms
Packaging Details: Export Wooden Packing
Delivery Time: 6-12 work days
Payment Terms: T/T
Supply Ability: 30 set/month
Product Description

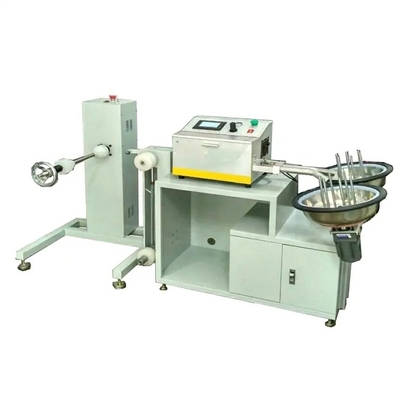

Rolling Automatic Fiber Drop Cable Cutting Machine Automatic Fiber Cutting Machines


Model:CLX-94

Place of Origin:ShenZhen,China



Desctiption

CLX-95 cable cutting machine is a type of multi function machine. It is designed for optical cable, CAT6 and UTP cable cutting. Its cable diameter range is 1.0 mm to 6.0 mm.



Drop Wire Optical Cable Cutting Machine​​ Key Features:
1, High Automation: Auto running for full process from raw cable to final section.
2, High Length Accuracy: Meter Wheel to count length, no length deviation from cable twist, slip during feeding. By high precision measurement of compensation to measure.
3, High Efficiency: Less than 15 sections for typical 10m.
4, Easy Operation: Single button to start/stop/pause running. Two Separated instruments for length and quantity setup. Performance manual buttons down all kinds of movements, convenient for specific assignment.
5, Stable performance: Robust mechanical structre intellectual controller for super reliable movement.
6, Efficient Cut: Patented design for super reliable and complete trim of super fine fiber.
7, Correction Function: Convenient for the length of the staff college checked.
8, Protecting Fiber: Maximum reduce the work process of stress on the optic cable.(Vertical and horizontal cut up).
9. Customized language: Chinese / English / Korea or other.
10. Easy to handle and Low noise.



Rolling Drop Fiber Cable Cutting Machine , Automatic Fiber Cutting Machine 0Rolling Drop Fiber Cable Cutting Machine , Automatic Fiber Cutting Machine 1

optic cable cutting MachineTechnical Parameters:



  1. Description
    Capacity
    Operation System
    Chinese & English, Touch Screen
    Cutting Length
    1 to 2000 mtrs
    Cable Diameter
    Φ1.00mm to Φ9.00mm(max)
    Cable Type
    Jacket fiber, Ribbon Fiber, UTP, CAT6
    Running Speed (m/s)
    0.5 - 1.6 meters per second
    Length Accuracy
    no more than 3%
    Power Consumption
    110V~230V AC, 50/60Hz 1500W
    Pressure Source
    0.4 to 0.6Mpa
    Load Weight
    CSM: 75 kgs, CRM:45 kgs
    Cable Drum OD
    Φ500 mm (max)
    Cable Drum ID
    50 ~ 80 mm
    Cable Collection Bowl Size
    Φ180*110 mm
    Assembled Machine Size
    200cm * 50cm * 125cm
    Net & Gross Weight
    150 kgs / 180 kgs
    Remark: If you have special requirement, please feel free to contact us.



FAQ

1. Are you a factory or a trader?

-we are factory.

2. What is your MOQ?

-MOQ 1 piece.

3. Do you provide sample services?

-Yes, we will provide samples.

4. How will you ship to me?

-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.

5. How do we pay?

-Book in advance or multiple payment methods such as T / T and T / L.

6. How long is your product warranty?

-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.

7. Do you provide customized services?

-Yes, we provide customized services, According to customer requirements and description.
