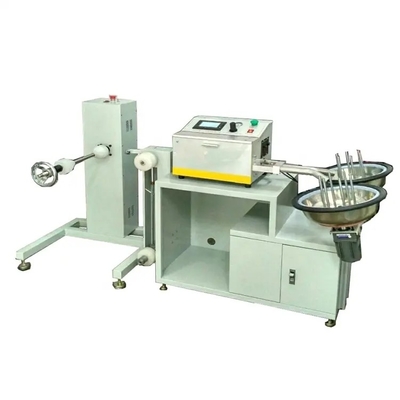

OEM ODM Rolling Automatic Fiber Optic Cutting Machines For Patch Cord Making
Model:CLX-94
Place of Origin:ShenZhen,China
Desctiption
1.High Automation: auto running for full process from raw cable to final section
2.High Efficiency: less than 15 sections for typical 10m
3.Easy Operation: single button to start/stop/pause running
4.Efficient Cut: patented design for super reliable and complete trim
Drop Wire Optical Cable Cutting Machine Key Features:
- High Automation: Auto running for full process from raw cable to final section.
- High Length Accuracy: Meter Wheel to count length, no length deviation from cable twist, slip during feeding. By high precision measurement of compensation to measure.
- High Efficiency: Less than 15 sections for typical 10m.
- Easy Operation: Single button to start/stop/pause running. Two Separated instruments for length and quantity setup. Performance manual buttons down all kinds of movements, convenient for specific assignment.
- Stable performance: Robust mechanical structre intellectual controller for super reliable movement.
- Efficient Cut: Patented design for super reliable and complete trim of super fine fiber.
- Correction Function: Convenient for the length of the staff college checked.
- Protecting Fiber: Maximum reduce the work process of stress on the optic cable.(Vertical and horizontal cut up).
- Customized language: Chinese / English / Korea or other.
- Easy to handle and Low noise.
optic cable cutting MachineTechnical Parameters:
-
|
Description
|
Capacity
|
|
Operation System
|
Chinese & English, Touch Screen
|
|
Cutting Length
|
1 to 2000 mtrs
|
|
Cable Diameter
|
Φ1.00mm to Φ9.00mm(max)
|
|
Cable Type
|
Jacket fiber, Ribbon Fiber, UTP, CAT6
|
|
Running Speed (m/s)
|
0.5 - 1.6 meters per second
|
|
Length Accuracy
|
no more than 3%
|
|
Power Consumption
|
110V~230V AC, 50/60Hz 1500W
|
|
Pressure Source
|
0.4 to 0.6Mpa
|
|
Load Weight
|
CSM: 75 kgs, CRM:45 kgs
|
|
Cable Drum OD
|
Φ500 mm (max)
|
|
Cable Drum ID
|
50 ~ 80 mm
|
|
Cable Collection Bowl Size
|
Φ180*110 mm
|
|
Assembled Machine Size
|
200cm * 50cm * 125cm
|
|
Net & Gross Weight
|
150 kgs / 180 kgs
|
Remark: If you have special requirement, please feel free to contact us.
|
|
Company Information
Why cooperate with Chuanglixun?
Experiences: More than 10 years professional experiences in fiber optic patch cord industry.
Product serialization: form extensible product series that covers the market.
Flexibility: The modular design support high scalability and a flexible combination and collocation. Fast delivery.
Practicality: Close to customer's requirement and reduce the operating costs.
Adaptability: Customer-oriented, providing highly adaptable customized development solutions to meet customer's specific applications.
Market foresight: Closely link to the upstream and downstream of the industry chain, follow up and master the newest technology and development trend, provide the most competitive products and solutions.
FAQ
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
-MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples.
4. How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay?
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
