SM And MM Optic Fiber Insertion Loss Tester High Precision ILRL-6001

1 piece
MOQ
Negotiable
Price
SM And MM Optic Fiber Insertion Loss Tester High Precision ILRL-6001
Features Gallery Product Description Request A Quote
Features
Specifications
Certification: RoHS
Model Number: ILRL-6001(SM&MM)
Use: Insertion Return Loss Tester
Calibration Waveleng: 1310/1550nm
Power Supply: AC 90-260 V
Measurement Tolera: ±0.4dB
Output Stability: 0.02dB /hour(@250C)
Measurement Range: 0~75dB
Light Source Wavelength: MM:850nm SM:1310/1550nm
Material: ABS Plastic
High Light:

1550nm Insertion Loss Tester

,

1310nm Insertion Loss Tester

,

High Precision Insertion Return Loss Tester

Basic Infomation
Place of Origin: Guangdong,China
Brand Name: CLX
Payment & Shipping Terms
Packaging Details: 33.5X26.5X23 cm,5.0kg,Cushions and cartons
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 piece/week
Product Description

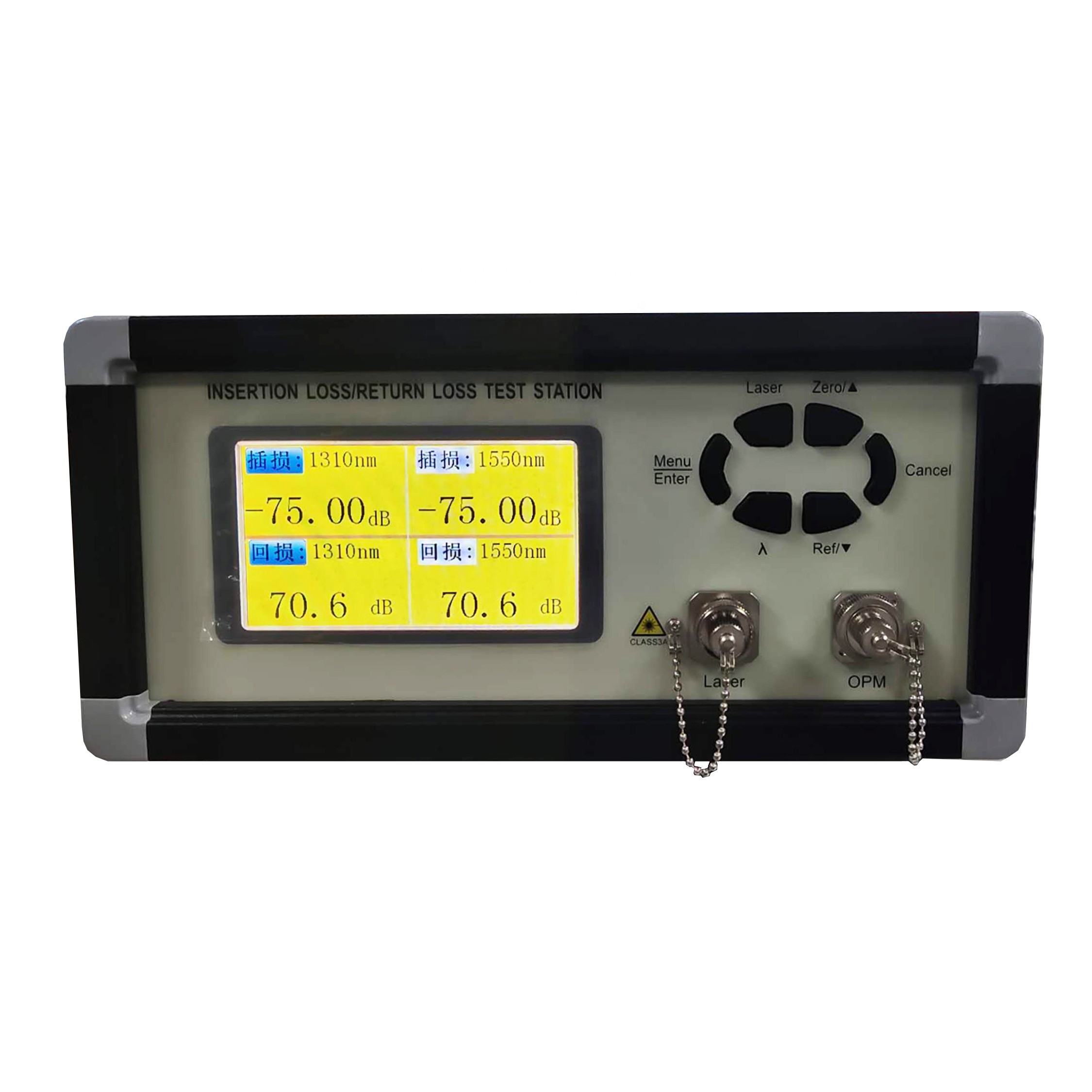

High Precision ILRL-6001 SM&MM Optic Fiber Insertion Return Loss Tester Machine


Model:ILRL-6001

Place of Origin:ShenZhen,China


Product description

SM Insertion Loss and Return Loss Test Station for Fiber Optic Patch Cord Production
This I/R loss tester is depended on the rich experience in the production and test of the passive components and test instrument, fully absorbing the advantages of the international instrument, Our designs and develops Return Loss/ Insertion Loss Test Station to meet the growing customers’ requirements from the domestic and international markets.Return Loss/Insertion Loss Test Stations are widely used to test the insertion loss and return loss of the fiber cables, fiber optical active components and fiber optical passive components.It is essential and ideal tool for the test, research, development, construction and maintenance of the manufacturers, research institutions and network service providers and carriers.

Feature

1. High measurement accuracy
It has the stable output power, fast test and wide test range by adopting the built-in laser isolator, advanced microelectronics technology, optical test instrument and software.
2. Synchronously auto-setting wavelength
In return loss test mode, the unit will automatically and synchronously set the same wavelength for the light source and power meter. In power meter mode, the wavelength of power meter could be set separately.
3. Multiple working modes
This unit integrates three working modes in one, they are return loss test, optical power test and insertion loss test.
4. Easy Operation
Insertion loss /return loss will test synchronously without switching the button. The return loss value and insertion loss value are displayed separately on the two LCD screen of the unit. By the “zero” and “ref” keys, this unit will store the corresponding calibration value and keep it valid when the unit is turned on again next time and even the power supply is suddenly cut off.
5. Human Engineering Design
By adopting the high-quality mental material, this refrains the unit from the electrical interference under the production
condition. The button is durable in use and smooth and pleasant to the touch.
6. Universal optical connector, easy cleaning
The connectors of light source and power meter are all movable and easily took out to clean the detector of power meter or inside APC adaptor of the light source, or replaced with another type of connector.(Note:While detaching,revolving optical connector adapters of OPM&OLS only and then pull out connecctor adapters would be okay)
7.USB Port
The test results could be sent to the computer or printer through the USB port. On-line displaying current measurements and measurement results can be saved by foot switch.


Applications

1. Used in pigtails and patch cords.

2. Used in optical connections in optical communication equipment rooms and optical distribution frames.

3. Used in optical connections in optical apparatus and equipments.


Specification

Product Name
Insertion and Return Loss test Satation ILRL-6001
Optical Return Loss Test
Wavelength
1310/1550nm
Optic Connector
FC/APC
Return Loss measurement Range
14.8 ~ 75dB
Output Stability of laser source
0.05dB(1 hour@25°C)
Measurement accuracy
0.25dB
Resolution
±0.3dB
Optical Power and Insertion Loss Test
Wavelength Range
800~1700nm
Calibrated wavelength
850/1300/1310/1550nm, more other wavelengths can be optional
Optic Connector(Power Meter)
Interchangeable FC/SC/ST/2.5mm Universal /1.25mm adaptors
Photo detector
InGaAs
Display modes
dBm/dB/xW
Measurement range
+3 ~ -75dBm
Resolution
Non-linear 0.001dB ;Linear:0.001nw/µW/mW
Measurement accuracy
±5%
Other Specification
Communication Port
USB
Power Supply
AC 90-260V,50~60Hz
Operation Temperature
-5℃~+55℃
Storage Temperature
-25℃~+70℃
Dimensions
360X240X130mm
Weight(kg)
2.8

SM And MM Optic Fiber Insertion Loss Tester High Precision ILRL-6001 0

SM And MM Optic Fiber Insertion Loss Tester High Precision ILRL-6001 1SM And MM Optic Fiber Insertion Loss Tester High Precision ILRL-6001 2SM And MM Optic Fiber Insertion Loss Tester High Precision ILRL-6001 3SM And MM Optic Fiber Insertion Loss Tester High Precision ILRL-6001 4


FAQ

1.Are you a factory or a trader?

-we are factory.

2.What is your MOQ?

-MOQ 1 piece.

3.Do you provide sample services?

-Yes, we will provide samples(Samples at prices announced by chuanglixun).

4.How will you ship to me?

-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.

5.How do we pay

-Book in advance or multiple payment methods such as T / T and T / L.

6.How long is your product warranty?

-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.

7.Do you provide customized services?

-Yes, we provide customized services, According to customer requirements and description.
