Stainless Steel FTTH Fiber Pigtail Patch Cord Machine Sc Fc St Connector
Product Details
| Product Name: | Fiber Optic Connector Curing Oven | Machine Size: | 420*320*140(mm) |
|---|---|---|---|
| Net Weight: | 9kg | Heating Temperature: | 40 ~ 300 ℃ |
| Connector: | FC, ST, SC, LC,D4 | Power: | 800 W |
| Power Input: | 50/60Hz 1000W | Warranty Time: | One Year |
| Materials: | Stainless Steel | ||
| Highlight |
St Connector Patch Cord Machine,Stainless Steel Patch Cord Machine,FTTH Fiber Epoxy Curing Oven |
||
Product Description

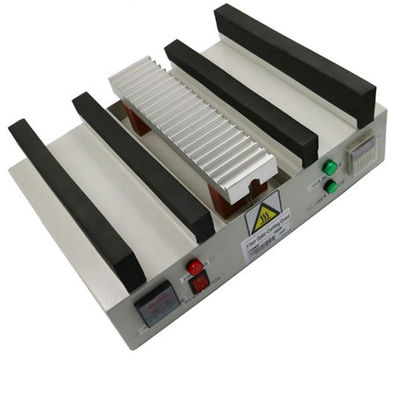

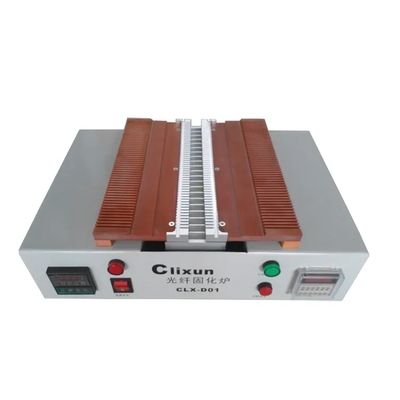

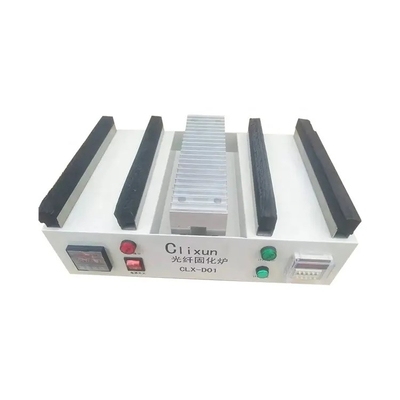

Stainless Steel FTTH Fiber Pigtail Patch Cord Machine Sc Fc St Connector Epoxy Curing Oven
Model:CLX-D01
Place of Origin:ShenZhen,China
Description
- fiber curing oven is used to cure various types of fiber optical connectors, such as FC, SC, LC, MU, MTRJ, ST, MPO etc.
- 96pcs connectors can be cured at one time.
- Use high precision temperature control system. Temperature adjustable from 0-160℃ with tolerance of ±1℃.
- Indication of time and temperature control is available.
- Fixture is exchangeable. Operation is easy. It is proper for various connectors with epoxy glue.
- Cores and pates can be customized.
Quick Detail
According to the specific needs of the production of optical fiber connectors and specially elaborate design, to avoid fiber breaking, fiber drawing and inconvenient inspection and other problems.
Free setting of reference temperature, humidity automatic adjustment, controllable temperature 0℃ ~ 300℃, temperature control accuracy up to 1℃ heating time adjustable.
Two control modes are available
A, continuous heating mode for a long time continuous heating, constant temperature, controlled by the main switch of the power supply.
B. Timing alarm mode Timing buzzing alarm, keep heating.Controlled by the time switch, press the reset button and reschedule.
Features
1.High productivity with 100 ferrules heated at Max.
2.Precise control system for both temperature and time
3.Simply operation and perfect solidified effect
4.Self regulating (PID) function
5.No additional heating board, economic benefits
Specifications
| 1.Machine Size |
150mm*280mm*440mm
|
| 2.Heating Temperature | 40 ~ 300 ℃ |
| 3.Accuracy | +/- 2 ℃ |
| 4.Input Voltage | 100~120VAC, 50Hz / 200-240VAC, 50Hz |
| 5.Power Consumption | 800 W |
| 6.Warm-up Time (approx.) | 15 min |
| 7.Heating time | 99.99 hours adjustable |
| 8.Capacity | 100, 80 connectors |
| 9.Net Weight | 15 Kg |
| 10.Materials | stainless steel |
FAQ
1. Are you a factory or a trader?
......we are factory.
2. What is your MOQ?
......MOQ 1 piece.
3. Do you provide sample services?
......Yes, we will provide samples(Samples at prices announced by chuanglixun).
4. How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity
5. How do we pay
......Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
......Yes, we provide customized services, According to customer requirements and description.
