CLX-Y1E 750W Fiber Optical Connector Crimping Machine High Accuracy
Product Details
| Type: | Fiber Optic Production Machine | Use: | Fiber Patch Cord Manufacture |
|---|---|---|---|
| Function: | Single End Crimping | Power Supply: | 220V/AC/50Hz/450W |
| Dimensions: | 600*400*650mm | Weight: | 25KG |
| Work Temperature: | 10℃~40℃ | Crimp Force: | 2.0T |
| Maximum Pressure: | 300Kgf | Material: | Metal |
| Highlight |
300Kgf Connector Crimping Machine,High Accuracy Connector Crimping Machine,Fiber Patch Cord Manufacturing Machine 750W |
||
Product Description

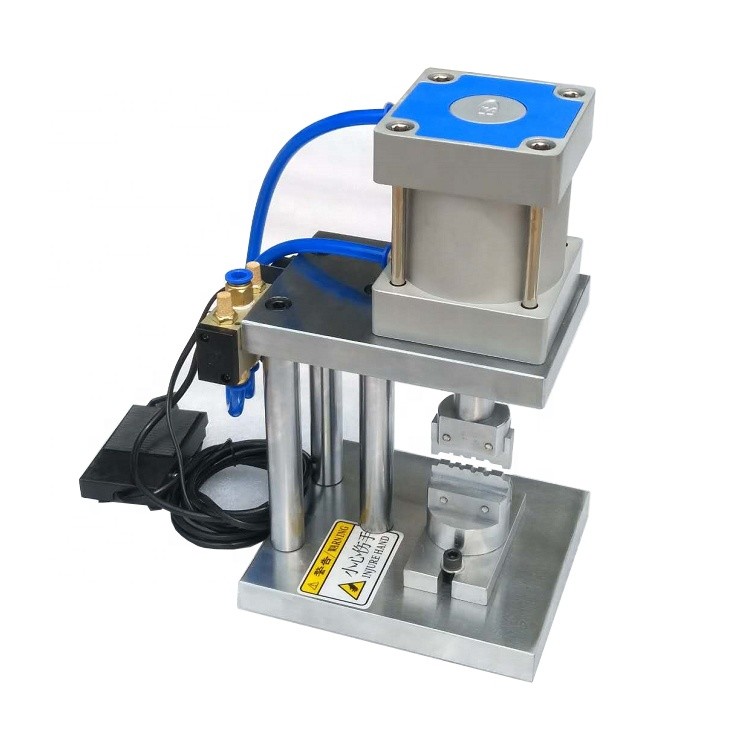

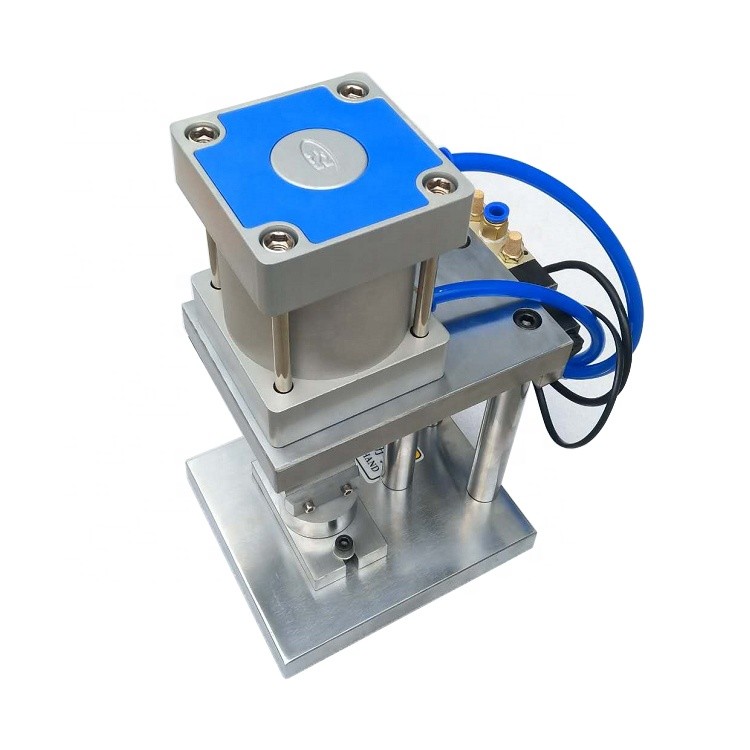

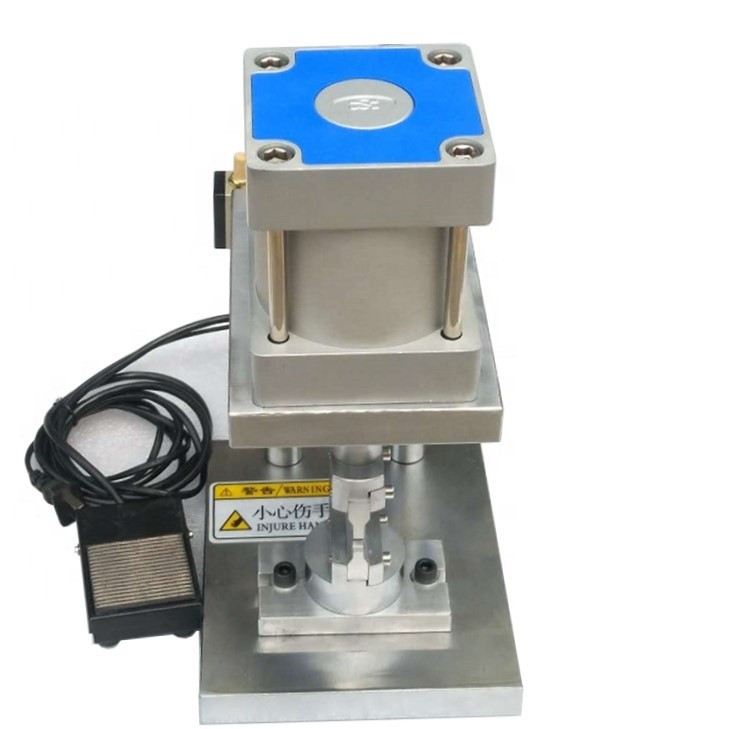

High Accuracy CLX-Y1E 750W Fiber Optical Connector Crimping Machine
Model:CLX-Y1E
Place of Origin:ShenZhen,China
Product description:
1.One-time crimping: ceramic lock pin and metal tail pipe can be crimped at one time, faster and more convenient
2.ST, SC (upc, apc), LC (upc, apc), FC (upc, apc) can be used universally, different types of fiber ports are suitable for
different types of fiber optic connector assembly and crimping
3.The product is made through multiple special processes, which is wear-resistant, rust-proof, and not easily deformed
4.Simple and reliable operation, high processing efficiency

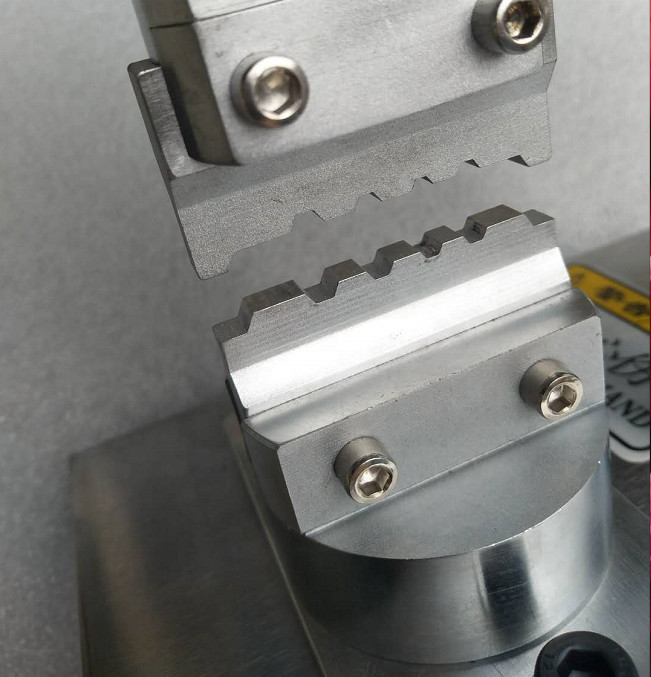

5.Can provide customized crimp adapter teeth according to customer needs
Specification
Feature
>Especially suitable for small batch crimping operation
Specification
| Product Name | Semi-automatic flat cable crimp terminal machine |
| Model | CLX-Y1E |
| Function | Single end crimping |
| Power supply | AC220V, 50/60Hz |
| Power | 750W |
| Wire size | 1~3mm |
|
Standard P number |
2-20P |
| Split line length | ≥45mm |
| Crimp force | 2.0T |
| Dimensions | 600*400*650mm |
| Weight | 65KG |
1.Applied for assembling fiber optic connectors, ceramic ferrules and fiber optic adapters
FAQ
1.Are you a factory or a trader?
-we are factory.
2.What is your MOQ?
-MOQ 1 piece.
3.Do you provide sample services?
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4.How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5.How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6.How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7.Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
