Home /Products/Fiber Optic Adapters/Field Assembly Fiber Fast Connector Single Mode Fiber Optic SC APC UPC

Field Assembly Fiber Fast Connector Single Mode Fiber Optic SC APC UPC

100 pcs
MOQ
Negotiable
Price
Field Assembly Fiber Fast Connector Single Mode Fiber Optic SC APC UPC
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Fiber Fast Connector
Type: Fast Connector
Fiber Mode: Single Mode
Network: None, 4g, 3G
Use: FTTH
Applicable Cable: 2*3mm
Coating Diameter: 250um
Insertion Loss: PC: ≤0.2dB (max. 0.4dB); APC: ≤0.2dB (max. 0.4dB)
Pull Test: "<0.2dB, 4N Load (0.125 Fiber); <0.2dB, 40N Load (2.0*3.
Fiber Opitc Adapter, PC/UPC/APC,SM/MM: 1 Year
Highlight:

FTTH Fiber Fast Connector

,

UPC Fiber Fast Connector

,

250um Fiber Optic Adapters
Basic Infomation
Place of Origin: Guangdong,China
Brand Name: CLX
Model Number: CLX-SC-01
Payment & Shipping Terms
Packaging Details: Carton Packing
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 10000pcs/day
Product Description

Fast Connector Adapter Field Assembly Connector Single Mode Fiber Optic SC APC UPC



Model:CLX-SC-01



Place of Origin:ShenZhen,China

Packaging & delivery
Packaging Details
Carton
Port
shenzhen port
Picture Example:
Lead time:
Quantity(pieces) 1 - 200 201 - 20000 >20000
Lead time (days) 10 25 To be negotiated

Product Description

Telecommunications/Optical Network/Testing / Measurement Instruments/Fiber To the Home

High size precision;Good repeatability;Good changeability;Good temperature stabilization.High wearable.



Product name
Fiber Optic SC APC Square Fast Connector Quick Connector Adapter Cold Connector Field Assembly LW-FAFC-SC-01
Applicable Cable
2*3mm
Fiber Diameter
125um
Coating Diameter
250um
Fiber Mode
Single Mode
Insertion Loss
PC: ≤0.2dB (max. 0.4dB); APC: ≤0.2dB (max. 0.4dB)
Return Loss
PC: ≥40dB (typical ≥45dB); APC: ≥50dB (typical ≥55dB)
Pull Test
<0.2dB, 4N load (0.125 fiber);
Impact Test
<0.2dB, 40N load (2.0*3.0mm, 3.0mm)
Durability Test
<0.2dB, Typical 0.1 dB1.5m, 10 repetitions

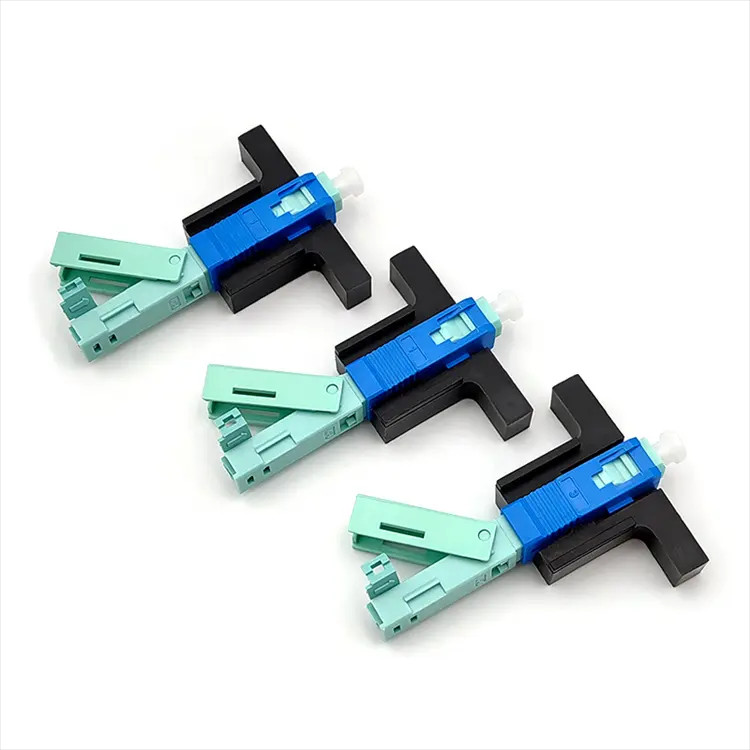

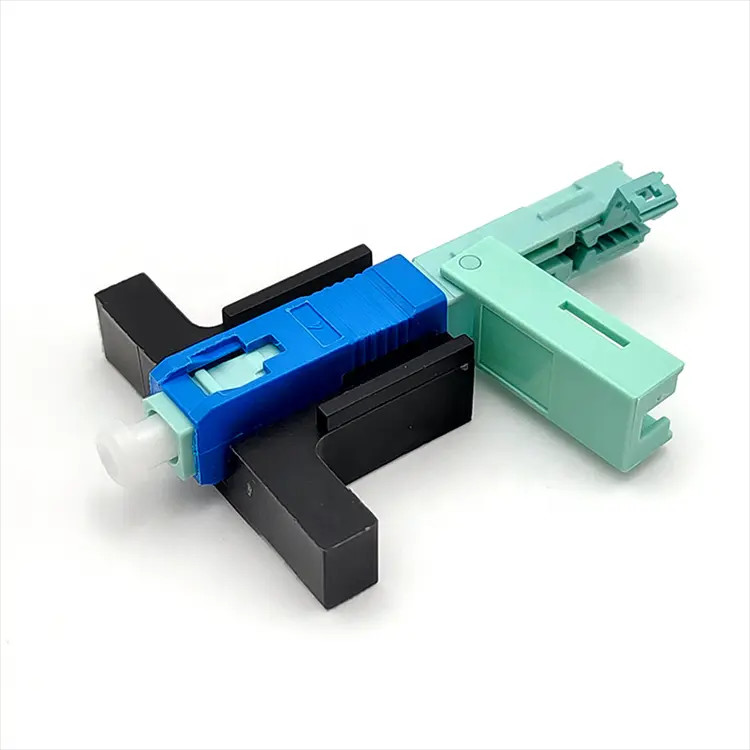

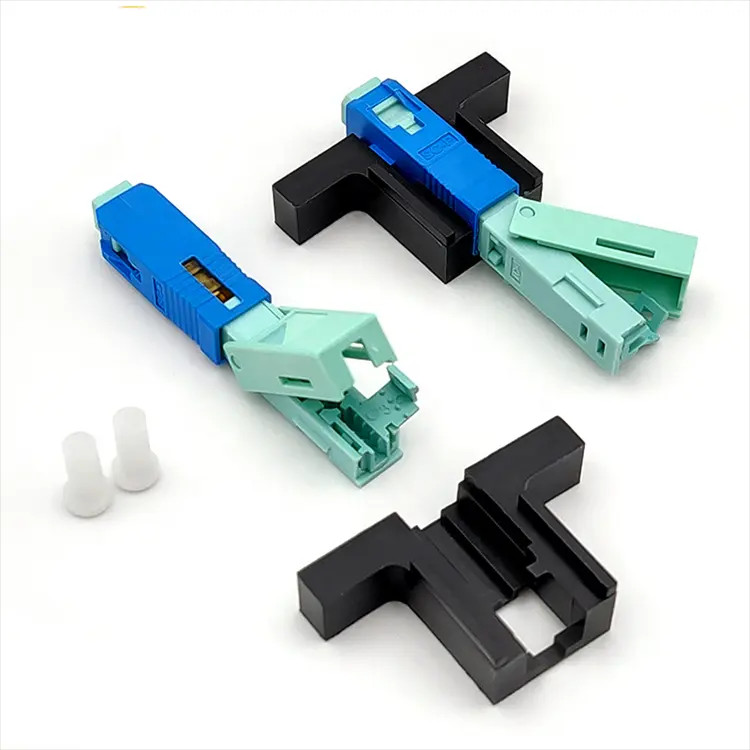

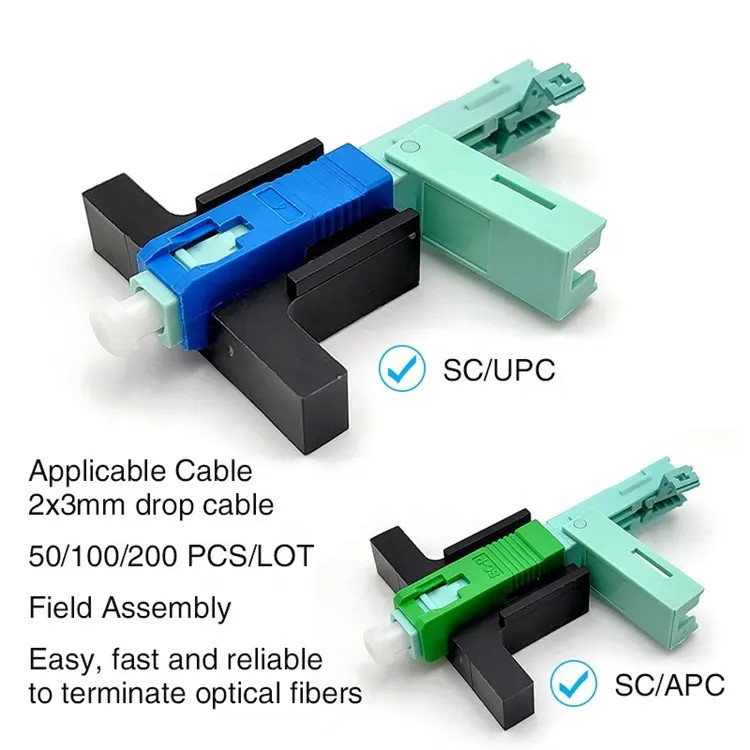

Field Assembly Fiber Fast Connector Single Mode Fiber Optic SC APC UPC 2Field Assembly Fiber Fast Connector Single Mode Fiber Optic SC APC UPC 3Field Assembly Fiber Fast Connector Single Mode Fiber Optic SC APC UPC 4

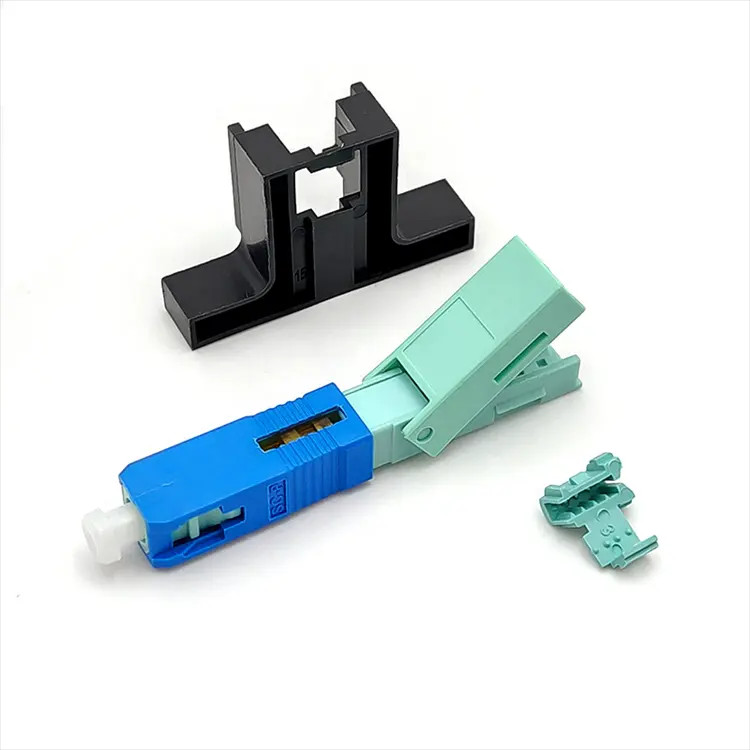

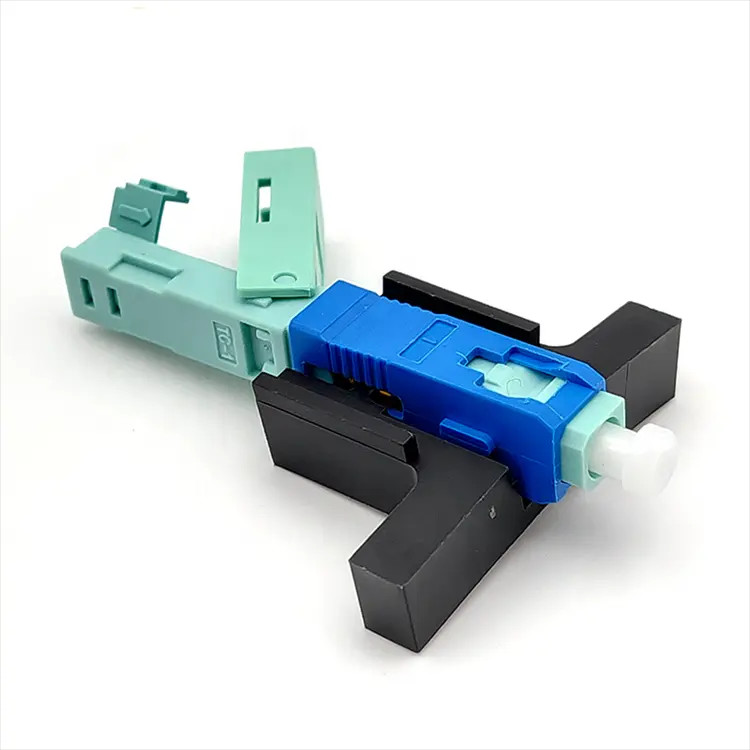

Field Assembly Fiber Fast Connector Single Mode Fiber Optic SC APC UPC 5Field Assembly Fiber Fast Connector Single Mode Fiber Optic SC APC UPC 6
