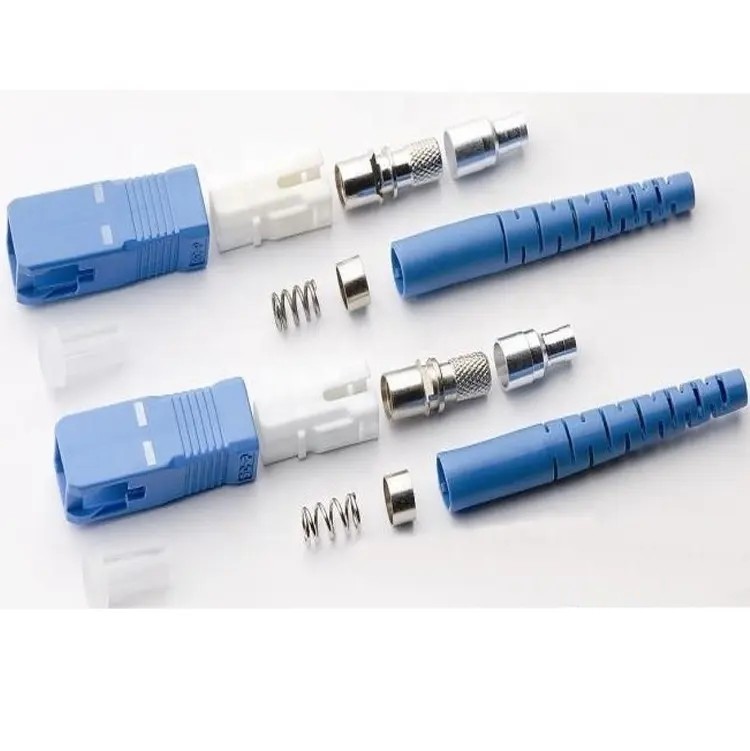

High Quality Factory Price FTTH OEM 3mm Optical Fiber Connector Simplex Dual SC UPC APC
Fiber Optical Connector SC Product Description:
1. Environmentally friendly materials: aluminum and plastic.
2. other series:SC MU DIN APC Single-mode & multi-mode, SX & DX.
3. Lightweight, durable, and easy to use .
4. Insertion loss ≤ 0.2dB (SM & MM); Return loss: ≥55dB(UPC).
5. develop molds and produce various of kinds of Single Mode and Multi-mode fiber optic connectors for ST, SC, FC, LC, E2000, MPO, MU
and MTRJ applications. Both pre-assembled connector and connector kits are available. Each fiber optic connector is functionally
tested before shipping.
Brief introduction :
Optical fiber connector is one of the most basic components in optical fiber communication. The original FC, SC and MU connectors were developed by NTT Company of Japan, while DIN 47256 was developed by Germany. In order to reduce volume and save space, Bell Institute developed LC connectors. After decades of development, these connectors have been widely used all over the world.
Connectors are made of ceramic, metal, plastic and so on. Each connector has a different color frame and tail sleeve for selection. Through solidification grinding and other processes, optical fiber connectors are used to make jumpers or tail fibers with various types of optical cables. They are widely used in communication rooms, home-to-home optical fibers, local area networks, optical fiber sensors, optical fiber communication systems, optical fiber connection transmission equipment, national defense preparedness and so on.
0.9mm Singlemode Simplex SC UPC Connector Specifications:
| Parameter | Unit | FC,SC,LC | ST,MU | MT-RJ,MPO | |||||||
| SM | MM | SM | MM | SM | MM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
| Insertion loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥50 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 |
| Operating Wavelength | nm | 1310,1550 | 1310,1550 | 1310,1550 | |||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Operating temperature | ℃ | -40～+75 | -40～+75 | -40～+75 | |||||||
| Storage temperature | ℃ | -40～+85 | -45～+85 | -45～+85 | |||||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 |
|||||||

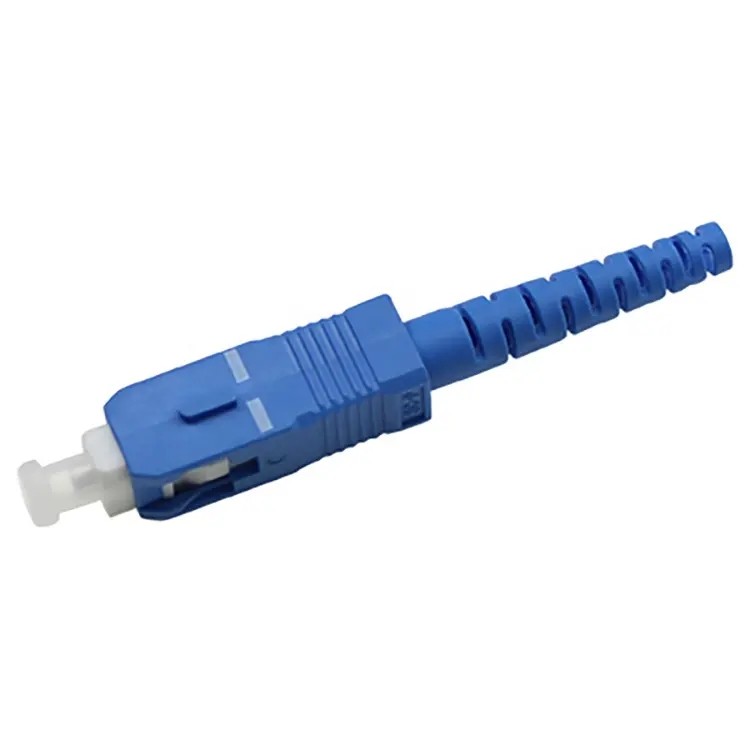

Simplex SC UPC Connector
SC Optical Fiber Connector Feature:
● Corrosion resistance and durability
● Low insertion loss
● Various types and colors of tail covers
● Conforms to IEC 874-10 and ECCBFOC/2.5 and AT&T-ST II standards.
● Compliance with IEC-61754
● Types available: assembled sets of connectors or unassembled pieces of connectors.
Fiber Optic Connector Application:
● Anti-corrosion
● Cable TV network
● Durable
● In active device equipment
● Low insertion loss
● Optical fiber communication system.
● A variety of tail sleeve types and colors
● Optical fiber communication system.
● SC can provide 45 ° or 90 ° bend.
● Telecommunication network
● Local Area Networks (LANs)
● Wide Area Networks (WANs)
● System debugging
