Optical Pigtail Production Line Fiber Patch Cord Making Machine Square Polishing

1 Set
MOQ
Negotiable
Price
Optical Pigtail Production Line Fiber Patch Cord Making Machine Square Polishing
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Fibre Optic Patch Cord Polishing Machine
Application: Fiber Optic Patch Cord Production
Materials: Synthetic Steel
Electric Power: 126W
Net Weight: 28 Kg
Dimensions: 285*220*338mm
Voltage: 110~220V AC 50Hz/60Hz
Insert Loss: 0.3 DB (SM) 0.2 DB (MM)
Return Loss: 50 DB (PC) 60 DB (APC)
Warranty Time: 2Year
High Light:

Fiber Optic Polishing Machine 220V

,

Polishing Fiber Patch Cord Making Machine

,

Square Fiber Optic Polishing Machine

Basic Infomation
Place of Origin: Guangdong,China
Brand Name: CLX
Certification: RoHS
Model Number: CLX-02E
Payment & Shipping Terms
Packaging Details: Carton Packing:400*320*450mm
Delivery Time: 3-5 work day
Payment Terms: T/T
Supply Ability: 20 set /week
Product Description

Square Polishing Optical Pigtail Production Line Fiber Patch Cord Making Machine



FTTH OEM Fiber Optic Polishing Machine High Efficient Adjustable Speed


Product description of Fibre Optic Connector Polished MachineThe Fiber Optical Polishing Machine on The Base of The Fiber Optical Polishing Machine on The Base of International Universal Standards and Long-Term Hands-On Experience, It Exceeds Requirements for Gr-326 End Face Geometry, And This Fiber Optical Polishing Machine Adapt To Four Corners Compression And New I. P. C. Holder Technology Yields The Best Results In The Industry. No Variability in Result When Polishing 1 Or 24 Connectors, Jig Will Be Installed Stable, And Compact Size. This machine is designed for mass production needs, and can process excellent connector end-face of LC, SC, ST, FC, MTRJ, E2000 and ect as well as angle polishing.


Patch Cord Production Machine Product features
1. own high-tech technology, 14 years of continuous research
2. Can Quickly change polishing jigs.
3. The polishing trails obey the planet orbit. Polishing rotation speed is adjustable with normally 140RPM.
4. Maximum polishing capacity reaches 48 pcs for MU and LC connectors. And for SC, FC, ST. it reaches 36 pcs.
5. High efficiency, The first pass yield for end face quality reach 98%~100%
6. The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber optic connector polishing 3D pass rate> = 98% (100% Typical, according to IEC),
7. APC return loss ≥60dB , PC(UPC)return loss ≥55dB , Insertion loss ≤0.20dB ( typical)
8. The high quality stainless steel material after heat-treatment ensures the high precision & durability of the machine,Excellent stability, Eight or ten years lifetime

9.Customizable, you can customize personalized LOGO to establish your own brand, bigger and stronger.



Fiber Patch Cord Polishing Machine Specifications

1. Machine Type
CLX-02E
2. Machine Size
290mm(L)*220mm(W)*340mm(H)
3. Net Weight
28 kg
4. Power Input
110~120VAC 220~230VAC 50Hz/60Hz
5. Electric Power
126 W
6. Relative Humidity
15%~85%
7. Work Temperature
8℃~45℃
8. O.D. of Rotation Plate
127 mm(5 inch)
9. Time Settings
99 min 99 sec (Max)
10. Speed for Rotation Plate
140 rpm/min
11. Height of Plate Jumpiness
< 10 um
12. Pressure Configuration
50 dB Libration
13. Noice unloading Less
50 dB Libration
14. Working Status
0.25g 5~100Hz 10min
15. Stopping Status
0.50g 5~100Hz 10min

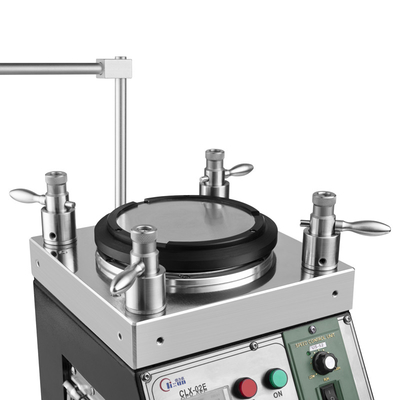

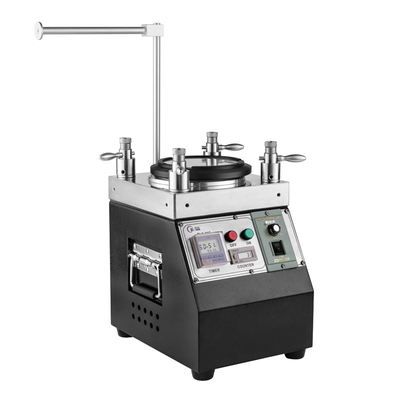

Optical Pigtail Production Line Fiber Patch Cord Making Machine Square Polishing 0Optical Pigtail Production Line Fiber Patch Cord Making Machine Square Polishing 1Optical Pigtail Production Line Fiber Patch Cord Making Machine Square Polishing 2
Optical Pigtail Production Line Fiber Patch Cord Making Machine Square Polishing 3
Optical Pigtail Production Line Fiber Patch Cord Making Machine Square Polishing 4



Optical Pigtail Production Line Fiber Patch Cord Making Machine Square Polishing 5

About shipping
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity
FAQ
1. Are you a factory or a trader?
......we are factory.
2. What is your MOQ?
......MOQ 1 piece.
3. Do you provide sample services?
......Yes, we will provide samples.
4. How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity
5. How do we pay
......Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
......Yes, we provide customized services, According to customer requirements and description
