Fiber Optic Ferrules Electric Composite Epoxy Curing Oven High Temperature
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Optical Fiber Epoxy Curing Oven
Type: Fiber Optic Production Machine
Use: Fiber Optic Curing Oven
Material: Steel And Aluminum
Power Supply: 220VAC
Connector: FC, ST, SC, LC,D4
Size: 425X325X145MM
Network: None
Warranty: 1 Year
High Light:

Fiber Optic Ferrules Epoxy Curing Oven

,

Multi Functional Fiber Optic Curing Oven

,

Electric Composite Fiber Optic Curing Oven

Basic Infomation
Place of Origin: Guangdong,China
Brand Name: CLX
Model Number: CLX-D01
Payment & Shipping Terms
Packaging Details: 48X39X22 cm,10.0kg,48X39X22 cm
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 piece/week
Product Description

Multi Functional High Temperature Fiber Optic Ferrules Electric Composite Curing Oven Patch Cord Making Machine


Description

CLX-D01 Curing Oven is a type of universal curing oven for fiber optic connectors, it is available for general connectors (such as FC/SC/ST, MU/LC) after glue injecting. The heating board could contain 100 connector ferrules at most. There is indicator light, timer and temperature indicator. Simply operation and perfect solidified effect.


Key Features

1>Input voltage: 220 VAC 50 Hz, or 110 VAC 50 Hz;

2> Horizontal Heating Board, convenient for putting ferrules and connectors;

3> High efficiency, 100 ferrules heating synchronously;

4> Indicator shows temperature and time, high precision for temperature control;

5> Automatically timing, and buzzer alarm reminding after time is up;.

6> Without additional heating board, economic benefits.


Operating Instructions

Connected to single-phase power supply , 200V AC, 5A;

Switch power to ON, the red LED lights;


Program settings:

Press SETUP to display the corresponding control button into the program settings, there are two settings, one for time, another one for temperature;

Temperature control: set the curing requires constant temperature, press UP and DWON to add and subtract, display the desired temperature then press OK button to enter the time control. Factory settings default temperature: 100℃;

Time control: when it shows entry time control, press UP and DWON to adjust the time, time is the time required for curing continued at a constant temperature. After adjusted the desired time, press OK to enter operation. Factory setting: 30 minutes;

Curing, put the fiber connector into curing fixture, placing it in oven, heating board then covered with dust cover;

Press OK, curing, curing furnace heating temperatures to the specified time, timer automatic timer, temperature should keeping constant, arrived at the designated time, curing oven stopped heating, curing cycle ends;

If need cure again, time and temperature still stay the same then put connectors into fixture, placing it in oven, press AGAIN for next cycle of cure;

If you need to change the time and temperature, enter SETUP, adjust them.


Technical parameters

Dimension (mm)
420 x 320 x 140
Weight (kg)
8.5 kg
Heating Temperature
40 ~ 200 Celsius degree
Accuracy
+/- 1 Celsius degree
Input Voltage
100~120VAC, 50Hz / 200-240VAC, 50Hz
Power Consumption
800 W
Warm-up Time (approx.)
10 mins
Connector Type
1.25 mm / 2.50 mm ferrule, FC/ST/SC/MU/LC
Capacity
100, 80

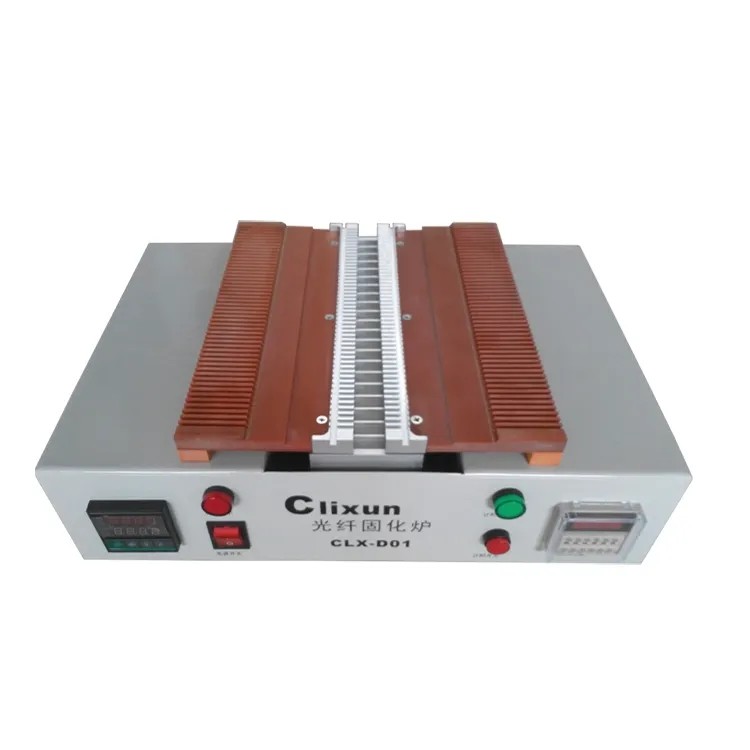

Fiber Optic Ferrules Electric Composite Epoxy Curing Oven High Temperature 0

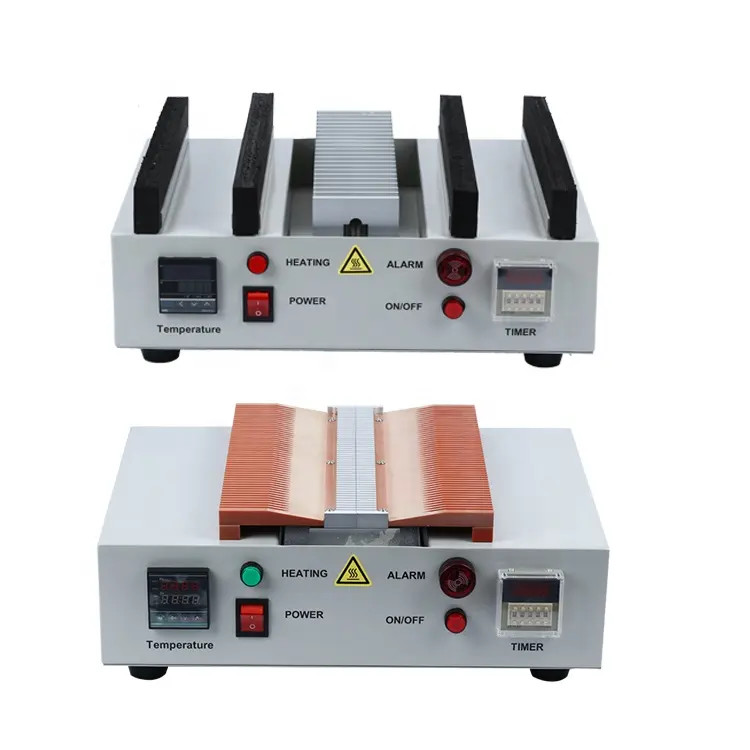

Fiber Optic Ferrules Electric Composite Epoxy Curing Oven High Temperature 1

Attention

This device uses high-precision integrated circuit design, with PID function, need to prevent too hard and damage components during the processing.

If the device has any abnormal display, please notify the supplier for repair in time.

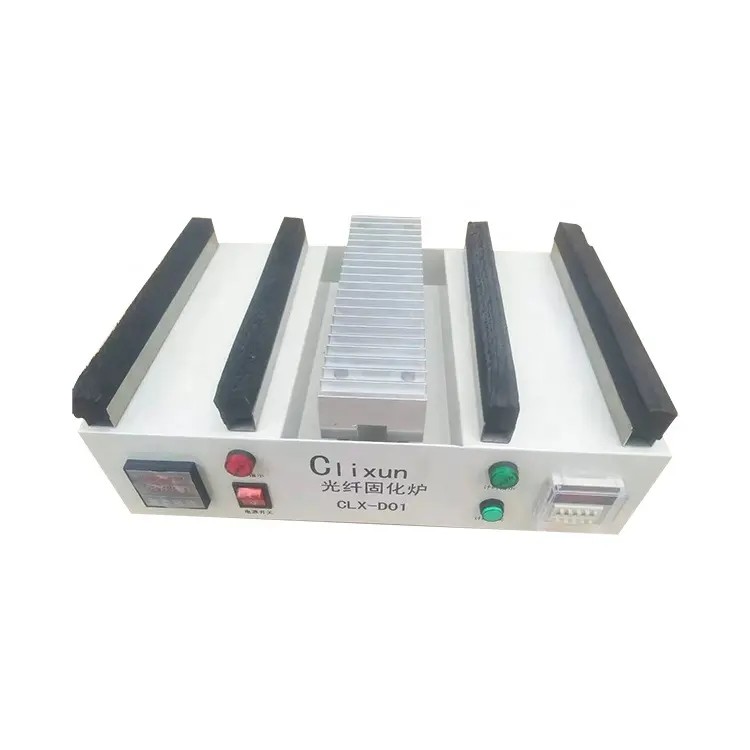

Fiber Optic Ferrules Electric Composite Epoxy Curing Oven High Temperature 2
