AutoCheck offers IEC and customized
criteria for fiber optic endface inspection. The latest IEC standard is configured as the default criteria. Just select the criteria as you want, click the Measure button, then you can get the testing results with high accuracy, reliability and repeatability.CLX-400 Integrated Fiber Endface Inspector , Endface Fiber Optic Inspection Microscope
Brand Name:
CLX
Model Number:
CLX-400
Place of Origin:
Guangdong,China
Minimum Order Quantity:
1 Piece
Price:
Negotiable
Supply Ability:
100 Piece/month
Product Details
| Type: | Fiber Optic Inspection Microscope | Use: | Fiber Endface Inspector |
|---|---|---|---|
| Specification: | 200X 400X | Color: | Blue |
| Power Consumption: | 3W | Focusing: | Manual |
| Power Supply: | DC12V | Warranty: | One Year |
| Highlight |
DC12V Fiber Endface Inspector,Integrated Fiber Endface Inspector,200X Fiber Optic Inspection Microscope |
||
Product Description
CLX-400 Integrated Fiber Endface Inspector Optical Fiber Endface Microscope Inspector
Model:CLX-400
Place of Origin:ShenZhen,China
Description

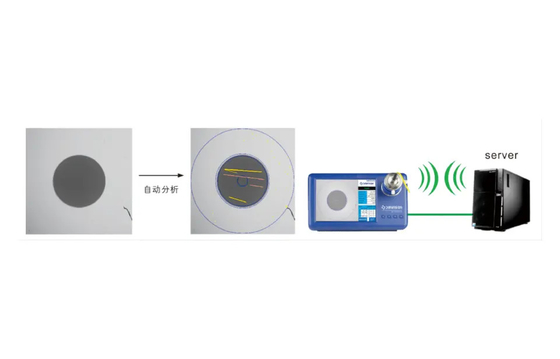

1.Automatic Analysis,Automatic Reporting,Android Embedded System,Built-in IEC Criteria
2.Wireless and Wired Internet Access,AutoCheck can detect the tiny defects, marks and scratches on the images totally ,automatically and precisely without human intervention.
3.AutoCheck is a stand-alone Android embedded system. No extra parts are required to perform inspection and reporting . Systemmonitoringand upgrading are convenient and simple.
4.The testing reports will be saved on SD card or server by wireless or wired internet. It’s convenient to document the testing results for reference in the future.
5.The universal interface design has more capability and compatibility to inspect different Fiber optic connectors( FC SC ST LC ) and modules.
Specifications
AUTOCHECK has different configurations like 200x or 400x magnification, fixed or adjustable X/Y positions. Refer the bellowing table for the details.
Remark: “Y” indicates function enabled; “-” indicates function disabled
Pre-set IEC Criteria
FAQ
1. who are we?
We are based in Guangdong, China, start from 2010,sell to Southeast Asia(38.00%),North America(38.00%),Northern Europe(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Optical fiber connector manufacturing equipment,Fiber Jumper,Fiber optic connector manufacturing tools and supplies,Fiber Optic Connector Adapter,Optical fiber jumper manufacturing technology service
4. why should you buy from us not from other suppliers?
We have eleven years of R & D, design experience and technical reserves. Not only must we sell good products and provide good after-sales service, we also provide customers with free technical support (technical documents or videos)
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FAS；
Accepted Payment Currency:USD,CAD;
Accepted Payment Type: T/T,MoneyGram,Western Union;
Language Spoken:English,Chinese
