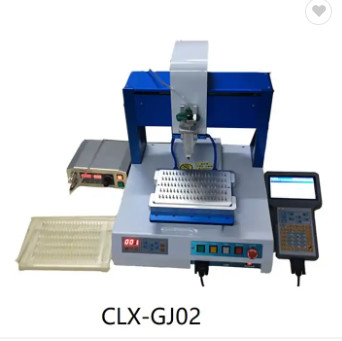

Automatic Epoxy Injection Machine For Fiber Optic Ferrules

1 Set
MOQ
Negotiable
Price
Automatic Epoxy Injection Machine For Fiber Optic Ferrules
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Fiber Optic Glue Injection Machine
Keywords: Fiber Optic Ceramic Ferrule Dispensing
Use: FTTH
Weight: 33 KG
Size: 235mmX225mmX63mm
Material: Steel And Aluminum
Adhesive: Early Plastic, Glue, Glue Advance Off Switch Delay
Warranty: 1 Years
High Light:

Automatic Epoxy Injection Machine

,

Fiber Optic Ferrules Epoxy Injection Machine

,

FTTH Epoxy Injection Machine

Basic Infomation
Place of Origin: Guangdong,China
Brand Name: CLX
Model Number: CLX-DJ02
Payment & Shipping Terms
Packaging Details: Pe bag + outer box, or customized requirements
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 set/week
Product Description

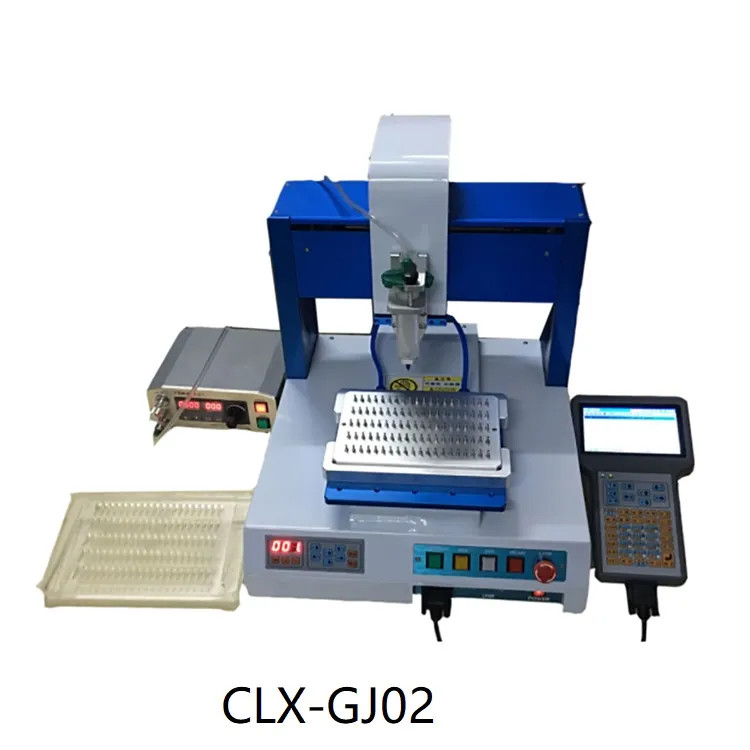

Automatic Fiber Optic Epoxy Injecting Machine For Fiber Optic Ferrules​



High Precision Efficiency Fiber Optic Equipment Automatic Fiber Optic Epoxy Injection Machine



Model:CLX-DJ02



Place of Origin:ShenZhen,China



Description

CLX-DJ02 semi-automatic dispenser is controlled by a film tap switch.Can adjust manual, semi-automatic state, the use of digital timing controller accurate to seconds, the correct control of flow, will not waste liquid material, it is easy to change each infusion volume and infusion time.It can solve many problems in stock development. It is simple to use and easy to operate. Equipped with vacuum suction function, it is not easy to fatigue, no waste, and has a wide range of use.



1. Uniquely designed tooling fixture, finishing the material in an instant
2. The XYZ axis adopts Japanese dispensing technology, and the dual guide rails support in parallel, with high transmission accuracy and stable performance.
3.The main steps of the movement adopt Japanese motor + American synchronous belt, Taiwan linear guide, high accuracy and long life.
4. Mainly applicable to most of the core insert injection of SC / LC / FC. The injection speed is fast (3600PCS / H), the consistency of the injection amount is strong, the glue amount is stable, saving manpower and material resources.



Specifications

Dispensing travel X/Y/Z(mm) 200/200/50mm
Maximum Load Y-AXIS / Z-AXIS: 8kg / 3kg
Travel speed X&Y / Z (mm/sec) 0.1-800 / 350mm/sec
Repeatability +/- 0.02 mm/200
Program recording mode 100 groups, 4000 points per group (U disk COPY)
Teaching handle LCD (320×240mm),English Interface
I/O Signal I/O 8 Inputs / 8 Outputs
Input power supply AC110/220V (internal switch conversion) 350W
Transmission method Timing belt + precision linear guide
Dimensions (WxDxH mm) 413×439×535mm
Body weight (kg) 33KG



Packaging & Shipping

Professional packaging: 1pc with poly bag.
wooden case and canton box are available.
make sure the machine safe.
Shipping :7 working days after order confirmed

Automatic Epoxy Injection Machine For Fiber Optic Ferrules 0Automatic Epoxy Injection Machine For Fiber Optic Ferrules 1

Matching fixture

Automatic Epoxy Injection Machine For Fiber Optic Ferrules 2

Acrylic sheet 1 Pieces

Automatic Epoxy Injection Machine For Fiber Optic Ferrules 3

Ceramic ferrule discharge 3 Pieces

Automatic Epoxy Injection Machine For Fiber Optic Ferrules 4

Cover 1 Pieces



Attention and maintenance:

1, Air pressure cant be more than 7bar(10psi), working air pressure cant be more than 5.5bar (78psi), if the working air pressurer is more than 4 bar, pls use the original parts from the manufacter.

2, The liquid material must be stired evenly before putting to the cyliner needle. It will be better if the liquid material can be stored at the stable temperature of 5 degree centigrade to make sure there is no big change in the density of the liquid material. If the density of the liquid is so high, ( it means the liquid is so viscous, it may be hard to spit out). If the liquid need to be diluted, pls compliant to the instruction of the liquid material manufacture.

3, Dont sharply increase the Vacuum, otherwise, the liquid will be pulled in the catheter by the vacuum. The qty of the vacuum pumpback rely on the air pressure level, working cycle, qty of the liquid to spit. If the qty of the vacuum is too much, the piston will be overset, disturbing the normal work.

4, Avoid to overset the liquid cylinder, otherwise, the liquid will flow to the air cylinder to destroy the internal aprt.

5, Pls clear the stuff left in the cylinder needel when needed. Otherwise the stuff will become hard, then disturbing the vacuum pumpback and stop the cylinder needle.

6, After using the machine, the cylinder needle need to be cleaned every time, otherwise, it is difficult to unload the needle when the liquid becomes hard. Normally, it is easy to remove the liquid from the inside of the cylinder needle, just dipping the parts in the hand water for 5~10minutes, all the part will be cleaned.

7, Pls disposal the used needle and cylinder needle at appropriate place to avoide some i nappropriate liquid pollution

Automatic Epoxy Injection Machine For Fiber Optic Ferrules 5

FAQ

1.Are you a factory or a trader?

......we are factory.

2.What is your MOQ?

......MOQ 1 piece.

3.Do you provide sample services?

......Yes, we will provide samples(Samples at prices announced by chuanglixun).

4.How will you ship to me?

....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity

5.How do we pay

......Book in advance or multiple payment methods such as T / T and T / L.

6.How long is your product warranty?

......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.

7.Do you provide customized services?

......Yes, we provide customized services, According to customer requirements and description
