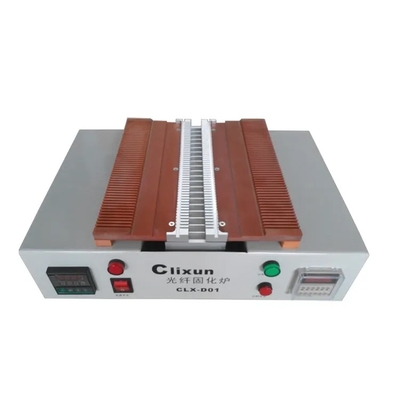

100 Ports Epoxy Fiber Optic Curing Oven For ST FC SC LC SMA Connectors

1 set
100 Ports Epoxy Fiber Optic Curing Oven For ST FC SC LC SMA Connectors
Features Gallery Product Description Request A Quote
Model Number: CLX-D01
Product Name: Fiber Optic Connector Curing Oven
Application: Optical Fiber Patchcord Making
Machine Size: 420*320*140(mm)
Net Weight: 9kg
Heating Temperature: 40 ~ 300 ℃
Power Supply: 220VAC
Warranty Time: 1 Year
High Light:

Epoxy Fiber Optic Curing Oven


100 Ports Fiber Optic Curing Oven


220VAC Fiber Optic Oven

Basic Infomation
Place of Origin: Guangdong,China
Brand Name: CLX
Payment & Shipping Terms
Packaging Details: Carton Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 set/week
Product Description

100 Ports Epoxy Curing Heat Oven Fiber Optic Curing Oven For ST FC SC LC SMA Connectors




Place of Origin:ShenZhen,China



Fiber optic connector heating curing furnace is suitable for fiber optic connector manufacturers, used for heating and curing all kinds of fiber optic connectors.It can simultaneously cure 100 core joints and 42 integrated joints at one time respectively.Adopt Japanese electronic component control, temperature control is stable.Temperature controller with PID function, free setting of the benchmark temperature, temperature control accuracy up to 1℃;The heating time is adjustable.

The fiber optical curing oven suits in the fiber optic connector Manufacturer, uses in heating up each kind of optical fiber connector.


1.Used to heat cure optical fiber epoxy resin, and simultaneously cure 100 ceramic ferrules
2.The temperature controller has a self-tuning (PID) function, which can set the reference degree freely, the temperature control accuracy can reach 1 ℃, and the heating time can be adjusted.
3.Controllable temperature20 ℃ ~ 300 ℃, temperature control precision can reach 1 ℃ plus adjustable time
4.Buzzer sounds regularly to keep heating. Controlled by the time switch, press the summer key again to count time.

Quick Detail

● According to the specific needs of the production of optical fiber connectors and specially elaborate design, to avoid fiber breaking, fiber drawing and inconvenient inspection and other problems.

● Free setting of reference temperature, humidity automatic adjustment, controllable temperature 0℃ ~ 300℃, temperature control accuracy up to 1℃ heating time adjustable.

● Two control modes are available

A, continuous heating mode for a long time continuous heating, constant temperature, controlled by the main switch of the power supply.

B. Timing alarm mode Timing buzzing alarm, keep heating.Controlled by the time switch, press the reset button and reschedule.



net weight
Heating temperature (Celsius)
20℃ 〜 300℃
control precision (Celsius)
One-time processing capacity
100 ceramic ferrules or 50 fiber optic connectors
Suitable for fiber optic connector models
SC/FC/ST/LC/E2000/MU The optical fiber connector(1.25MM/2.5MM Ceramic ferrule)
Operating Voltage
working frequency
heating time
1 minute-99.99 hours

100 Ports Epoxy Fiber Optic Curing Oven For ST FC SC LC SMA Connectors 0100 Ports Epoxy Fiber Optic Curing Oven For ST FC SC LC SMA Connectors 1


1. Are you a factory or a trader?

......we are factory.

2. What is your MOQ?

......MOQ 1 piece.

3. Do you provide sample services?

......Yes, we will provide samples(Samples at prices announced by chuanglixun).

4. How will you ship to me?

....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity

5. How do we pay

......Book in advance or multiple payment methods such as T / T and T / L.

6. How long is your product warranty?

......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.

7. Do you provide customized services?

......Yes, we provide customized services, According to customer requirements and description.

100 Ports Epoxy Fiber Optic Curing Oven For ST FC SC LC SMA Connectors 2
