ABS Fiber Patch Cord Manufacturing Machine Insertion Loss Return Loss Tester

1 piece
MOQ
Negotiable
Price
ABS Fiber Patch Cord Manufacturing Machine Insertion Loss Return Loss Tester
Features Gallery Product Description Request A Quote
Features
Specifications
Certification: RoHS
Model Number: CLX-CH03
Use: Fiber Optic Connector Test
Measurement Range: 0~75dB
Measurement Tolera: ±0.4dB
Output Stability: 0.02dB /hour(@250C)
Power Supply: AC 90-260 V
Calibration Waveleng: 1310/1550nm
Material: ABS Plastic
Warranty Time: 1year
High Light:

ABS Fiber Patch Cord Manufacturing Machine

,

Fiber Patch Cord Insertion Loss Tester

,

CLX-CH03 Insertion Loss Tester

Basic Infomation
Place of Origin: Guangdong,China
Brand Name: CLX
Payment & Shipping Terms
Packaging Details: 33.5X26.5X23 cm,5.0kg,Cushions and cartons
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 piece/week
Product Description

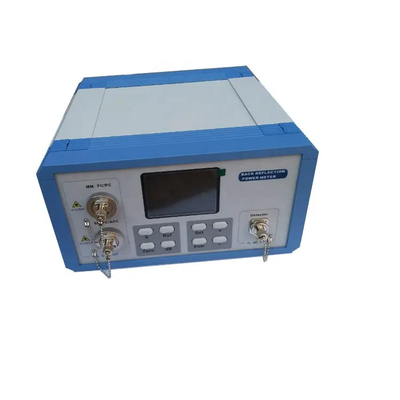

Fiber Optic Patchcords IL&RL Test Station Insertion Loss Return Loss Tester


Model:CLX-CH03

Place of Origin:ShenZhen,China


Single And Multi-Mode Benchtop Insertion Loss And Return Loss Test Bench / Optical Loss Tester

Insertion Loss and Return Loss Tester with color screen has stable and reliable performance, which integrates stable light source, high-precision power meter, insertion loss meter and return loss meter into one multifunction instrument. Based on domestic customers’ requirements, R&D team combined advantages of same type instrument within China/overseas and then developed the high-precision tester by several years’s unremitting effort. With high cost effective and state of art characteristics, it can be widely used for OEM device verification, research institutions R&D and construction maintenance in optical fiber/passive devices/optical communication system industries where demand plug loss,

Feature

1. Advanced OS
Multiple display, easy handling, fast response and stability
2. High precision
Stable output power/high detection speed/wide measurement range
3. Wavelength synchronous switching
4. Light source and power meter achieve wavelength synchronous switching under insertion/return loss mode.
5. Multiple working modes
6. Color recognition for test result
Different colors correspond different test results. Pass/Fail is available by just a glance. P
7. Easy handling
Return loss/insertion loss are synchronously measured. No buttons switching
8. Rich display interfaces
High definition LCD plus multi-level test interfaces bring rich visual experience and easing visual fatigue.
9. Easy to remove to clean the optical detector or replace with another adapter (FC / SC / ST / 2.5mm Universal / 1.25mm Universal / MT-RJ) or clean the inside of the APC adapter. Note that you only need to rotate the light source / power meter interface to remove it.
10. Clock display
Time is available to reasonably organize work
11. Communication interfaces
The tester can connect to computer and transmit test data to it. Specialized program give Pass/Fail result of jumper. Test data is available for analysis, readout and record


Applications

1. Used in pigtails and patch cords.

2. Used in optical connections in optical communication equipment rooms and optical distribution frames.

3. Used in optical connections in optical apparatus and equipments.


Specification

Optical insertion loss test
Measurement range
+3~-80dBm
Measurement tolerance
±0.03dB
Display resolution
Logarithmic: 0.01dB; linear: 0.001nW/μW/mW
Test mode
Linear and non-linear
Interface types
Removable: FC/SC/ST/generalΦ2.5mm/ generalΦ1.25mm adapters
Screen
Color LCD
Resolution
320*240
Communication interface
USB
Power supply
AC 90-260V
Work environment
temperature:-50C~+550C ;humidity<95%RH No condensation
Dimensions
265mmX265mmX140mm
Weight
3.5kg

ABS Fiber Patch Cord Manufacturing Machine Insertion Loss Return Loss Tester 0

ABS Fiber Patch Cord Manufacturing Machine Insertion Loss Return Loss Tester 1

ABS Fiber Patch Cord Manufacturing Machine Insertion Loss Return Loss Tester 2ABS Fiber Patch Cord Manufacturing Machine Insertion Loss Return Loss Tester 3ABS Fiber Patch Cord Manufacturing Machine Insertion Loss Return Loss Tester 4ABS Fiber Patch Cord Manufacturing Machine Insertion Loss Return Loss Tester 5


FAQ

1.Are you a factory or a trader?

-we are factory.

2.What is your MOQ?

-MOQ 1 piece.

3.Do you provide sample services?

-Yes, we will provide samples(Samples at prices announced by chuanglixun).

4.How will you ship to me?

-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.

5.How do we pay

-Book in advance or multiple payment methods such as T / T and T / L.

6.How long is your product warranty?

-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.

7.Do you provide customized services?

-Yes, we provide customized services, According to customer requirements and description.
