Connector Grinding Seikoh Giken Grind Patch Cords Polish Optical Polisher Fiber Optic Polishing Machine

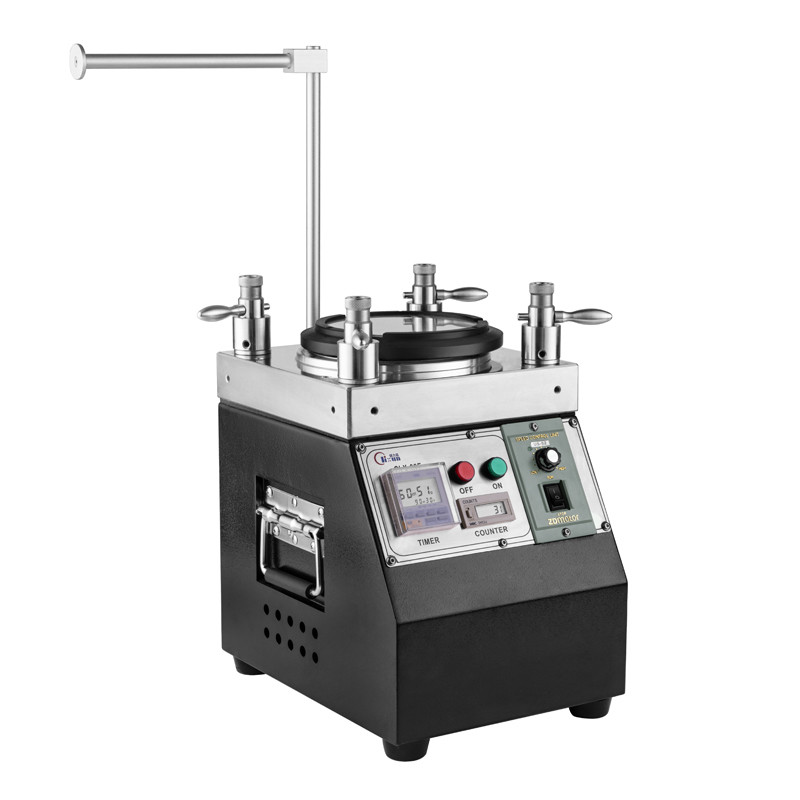

FTTH OEM Fiber Optic Polishing Machine High Efficient Adjustable Speed
Product description of Fibre Optic Connector Polished Machine
1.This machine is designed for mass production needs, and can process excellent connector end-face of LC, SC, ST, FC, MTRJ, E2000 and ect as well as angle polishing.
2.Polishing fixture adopt four coil pressure type. The pressure is controlled by the
four coils. It makes the product precision better and more consistent in quality.
3.It can produce the geometric surface meet the IEC standard requirements.
4.The polishing trails obey the planet orbit. Polishing rotation speed is adjustable
with normally 80RPM.
5.Use new I.P.C polishing fixture (every ceramic ferrule can be loadedindependently)
technology ensure the high qualified rate of production. The polishing results are
the same no matter polish one or 40pcs polishing connectors.
6.Maximum polishing capacity reaches 40pcs for MU and LC connectors.And for
SC, FC, ST. it reaches 32pcs.
Patch Cord Production Machine Product features
1. own high-tech technology, 14 years of continuous research
2. Can Quickly change polishing jigs.
3. The polishing trails obey the planet orbit. Polishing rotation speed is adjustable with normally 140RPM.
4. Maximum polishing capacity reaches 48 pcs for MU and LC connectors. And for SC, FC, ST. it reaches 36 pcs.
5. High efficiency, The first pass yield for end face quality reach 98%～100%
6. The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber optic connector polishing 3D pass rate> = 98% (100% Typical, according to IEC),
7. APC return loss ≥60dB , PC(UPC)return loss ≥55dB , Insertion loss ≤0.20dB ( typical)
8. The high quality stainless steel material after heat-treatment ensures the high precision & durability of the machine,Excellent stability, Eight or ten years lifetime
Fiber Patch Cord Polishing Machine Specifications
|
|
