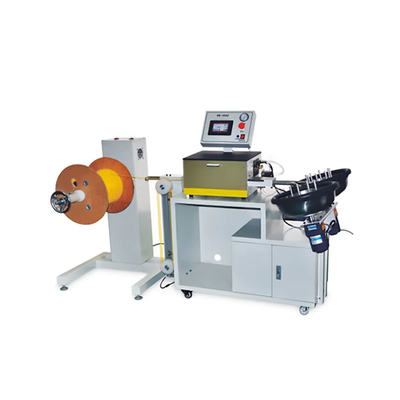

CLX-95 Automatic Fiber Optic Cable Cutting Machine Patch Cord Making Machine
Product Details
| Product Name: | Fiber Optic Cable Automatic Cutting Machine | Power Input: | 110V-220V,50/60Hz |
|---|---|---|---|
| Weight: | 175kg | Machine Size: | L200(CM)*W50(CM)*H120(CM) |
| Warranty Time: | 1 Year | Power: | 450W |
| Operation System: | Chinese And English Screen | ||
| Highlight |
Automatic Fiber Optic Cable Cutting Machine,Automatic Patch Cord Making Machine,Patch Cord Cable Cutting Machine |
||
Product Description
Automatic Fiber Optic Cable Cutting Machine FTTH Drop Wire Optical cable Cutting Machine
Model:CLX-95
Place of Origin:ShenZhen,China
Cutting machine for optic fiber cable Key Features:
CLX-95 is suitable for fiber optic cable cutting process. Customize the length of the cable, the number of cable cutters, the
number of cutters, and the stop (for pigtail marking).
Cable speed, cable speed 0-100% can be adjusted at will (60% recommended), cable size can be adjusted freely.
This device has the functions of no cable automatic alarm, automatic length tracking memory, total cable length function memory,
pigtail cable cutting, and code data.
The equipment control system is controlled by intelligent PLC module. The original original pneumatic components (Yadeke) have
been reported to be exempt from customs inspection at any time.
Product Features:
1.Set the cable cutting length, cable cutting cores,knife cutting times at user's preference.
2.Cable discharge & collect speed can be set from 0-100% (suggestuse 60%).Cable tray dia. Can be adjusted.
3.This machine has special function such as warning when not-enoughcable.Automatic tracking, cable total length, pigtail cutting, barcode printing etc.
4.This machine is registered at customs as inspection-free for exporting and importing.
Automatic Patch cord Production MachineTechnical Parameters:
|
Capacity |
| Operation System | Chinese & English, Touch Screen |
| Cutting Length | 1 to 999 mtrs |
| Cable Diameter | Φ0.9mm to Φ6.0 mm(max) |
| Cable Type | Jacket fiber, Ribbon Fiber, UTP, CAT6 |
| Running Speed(m/s) | 0.5 - 1.6 meters per second |
| Length Accuracy | no more than 3% |
| Power Consumption | 450 Watt, 220V AC, 50/60Hz |
| Pressure Source | 0.4 to 0.6Mpa |
| Load Weight | Less than 40 kgs |
| Cable Drum OD | Φ500 mm (max) |
| Cable Drum ID | 23 ~ 80 mm |
| Cable Collection Bowl Size | Φ180*110 mm |
| Assembled Machine Size | 110cm * 73cm * 125cm |
| Net & Gross Weight | 134 kgs / 175kgs |
Remark: If you have special requirement, please feel free to contact us.
Company introduction:
About shipping:
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies,
you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity.
FAQ:
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
-MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples.
4. How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay?
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
