CLX-RB05 Optical Cable Stripping Machine Half Automatic Heat Stripper Machine
Product Details
| Product Name: | Fiber Optic Heat Stripping Machine | Power Input: | 110V-220V,50/60Hz |
|---|---|---|---|
| Weight: | 4 KG | Machine Size: | (L)260*(W)250*(H)135mm |
| Warranty Time: | 1 Year | Power: | 240W |
| Temperature: | 80℃-150℃ | Material: | Bakelite, Aluminum |
| Highlight |
half automatic Optical Cable Stripping Machine,Optical Cable Heat Stripper Machine,Half Automatic Heat Stripper Machine |
||
Product Description

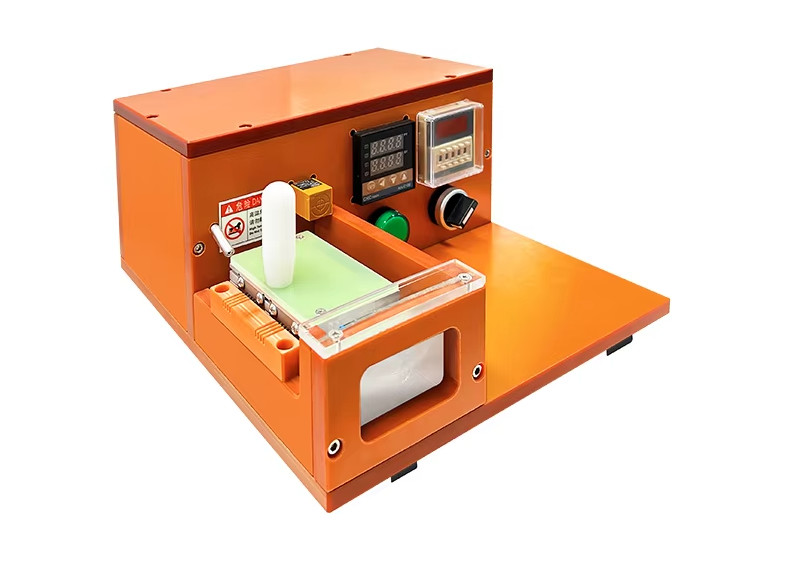

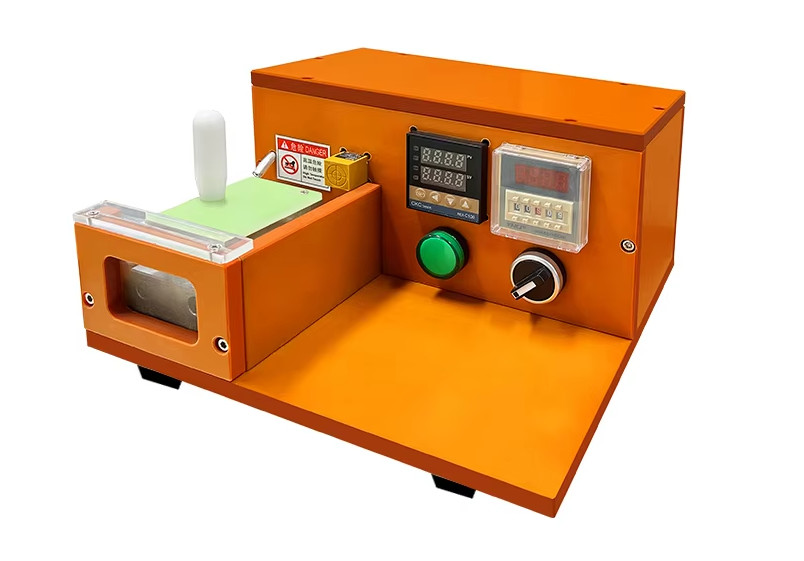

CLX-RB05 Optical Cable Stripping Machine half automatic heat stripper machine
Model:CLX-95
Place of Origin:ShenZhen,China
optical fiber thermal stripper Key Features:
This half-automatic fiber cable stripper is used to stripped the fiber cable diameter below 1.2mm, and can strip the buffer and coating of the fiber cable one time, which is widely used in fiber patch cords production and improve the fiber stripping efficiency.
Fiber Thermal stripper Product Features:
*Desk-top design, used for fiber optic patch cord massive production
*Easy to strip the coating layer and buffer of optical fiber
*8 port design, Maximize product life extension
*Various temperature adjustment based on the fiber cable jacket requirement
*Air Blowing delay adjustment
*Various LED indicators are convenient to confirm the status of wire stripping pliers
fiber thermal stripper specification:
|
1. Model number |
CLX-RB05 |
| 2. Power Supply | 110V/220V AC, 50/60Hz |
| 3. Pressure Source | 0.4 to 0.6Mpa |
| 4.Temperature | Four Temp.: 80℃-150℃ |
| 5. Environmental requirements | Humidity below 85% |
| 6. Use | Stripping Optical Fiber |
| 7. Fiber Size | Φ125/Φ250 um |
| 8. Assembled Machine Size | 260mm * 250mm * 135mm |
| 9. Net & Gross Weight | 4 kgs / 5kgs |
Remark: If you have special requirement, please feel free to contact us.
Company introduction:
About shipping:
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies,
you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity.
FAQ:
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
-MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples.
4. How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay?
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
