CLX-MT12 Fiber Tester Experiment Optical Interferometer 3d Fiber Optic Interferometer
Product Details
| Product Name: | Fiber Optic 3D Interferometer | Power Input: | 110V-220V,50/60Hz |
|---|---|---|---|
| Weight: | 5 KG | Machine Size: | (L)300*(W)150*(H)110mm |
| Warranty Time: | 1 Year | Fiber Height (mm): | 0~8 / -160~+160 |
| Apex Offset (um): | 0~500 | ROC(mm): | ≥3 |
| APC Angle *(°): | 0~8 | Testing Speed (S): | 0.4s / MT-12 With About 10s |
| Highlight |
experiment optical interferometer,Compact Size fiber tester,3d fiber optic interferometer |
||
Product Description

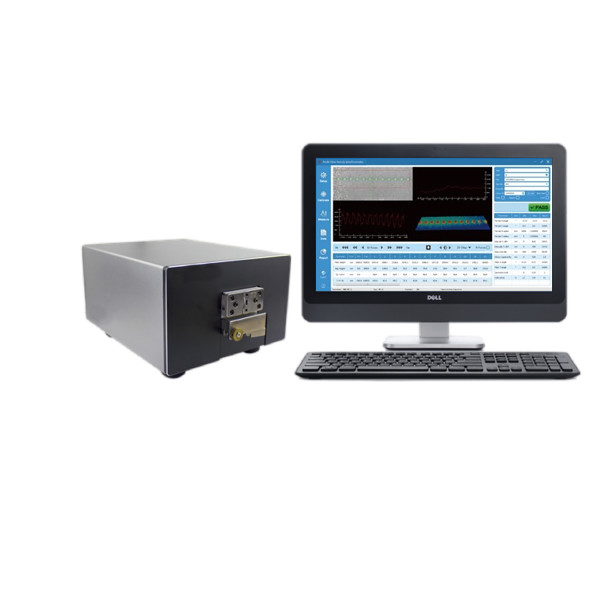

CLX-MT12 fiber tester experiment optical interferometer 3d fiber optic interferometer
Model:CLX-MT12
Place of Origin:ShenZhen,China
3D fiber optic interferometer Key Features:
CLX-MT12 is an auto-focusing, auto-calibration, contactless fiber end-face interferometer. It adopts the principle of white light and red-light interference to restore the geometry of the fiber end-face and calculate the technical parameters accurately. It is your best choice and ideal partner for measuring MPO/MTP connectors, while compatible with single-core connectors such as FC, SC, ST, LC, MU, etc.
Automatic fiber end-face 3D interferometer Product Features:
1.Powerful measuring function
It uses high-end optical microscope system and ultra-clear high-speed camera, can measure the 12X core or 16X core MPO/MTP connector. The maximum measurement is up to 72 cores, which can help you measure the products applied in 200G or 400G in the future.
2. Extremely fast measurement speed
3. Automatic focus, automatic recognition of face type of end-face
4. Perfect 3D image
understand the polishing situation of the end-face of the product directly and carry out process improvement.
5. Stable and high-speed data transmission
6. Abundant chuck
7. Complete data and reporting
fiber thermal stripper specification:
Company introduction:
About shipping:
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies,
you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity.
FAQ:
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
-MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples.
4. How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay?
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
