Simplex Fiber Thermal Stripper Hot Jacket Remover Ribbon Fiber Stripper In-built
Product Details
| Product Name: | Optical Fiber Thermal Stripper | Model: | CLX-RB02 |
|---|---|---|---|
| Material: | Stainless Steel | Dimensions: | 92.5(L) X 46(D) X 31.5(H) Mm |
| Fiber Diameter: | 125um / 900um | Weight: | 498g |
| Air Source: | 0.5-0.8 MPa | Power Supply: | DC 12V2A |
| Highlight |
Ribbon Fiber Stripper,Simplex Fiber Thermal Stripper,Hot Jacket Remover Fiber Stripper |
||
Product Description

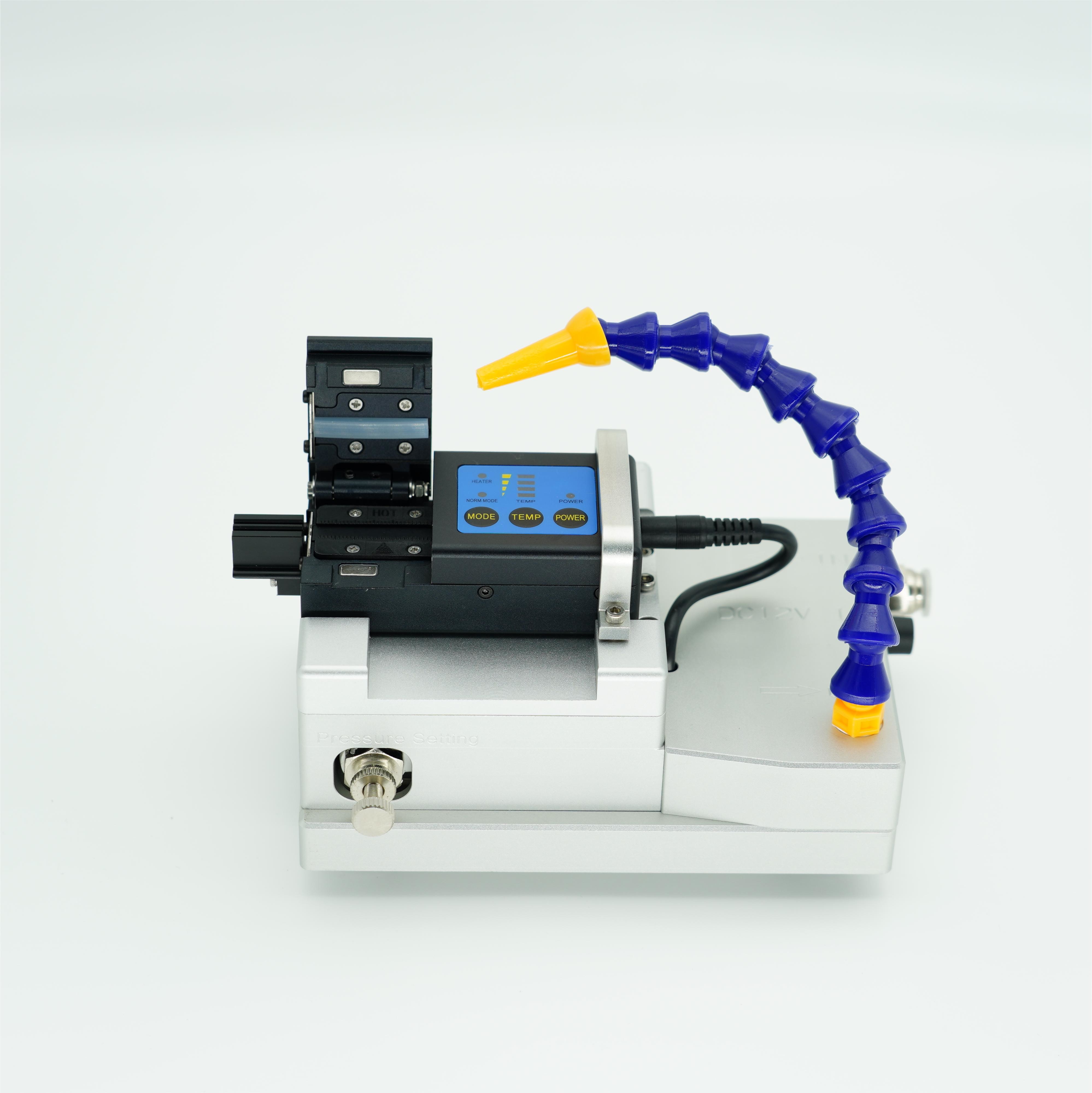

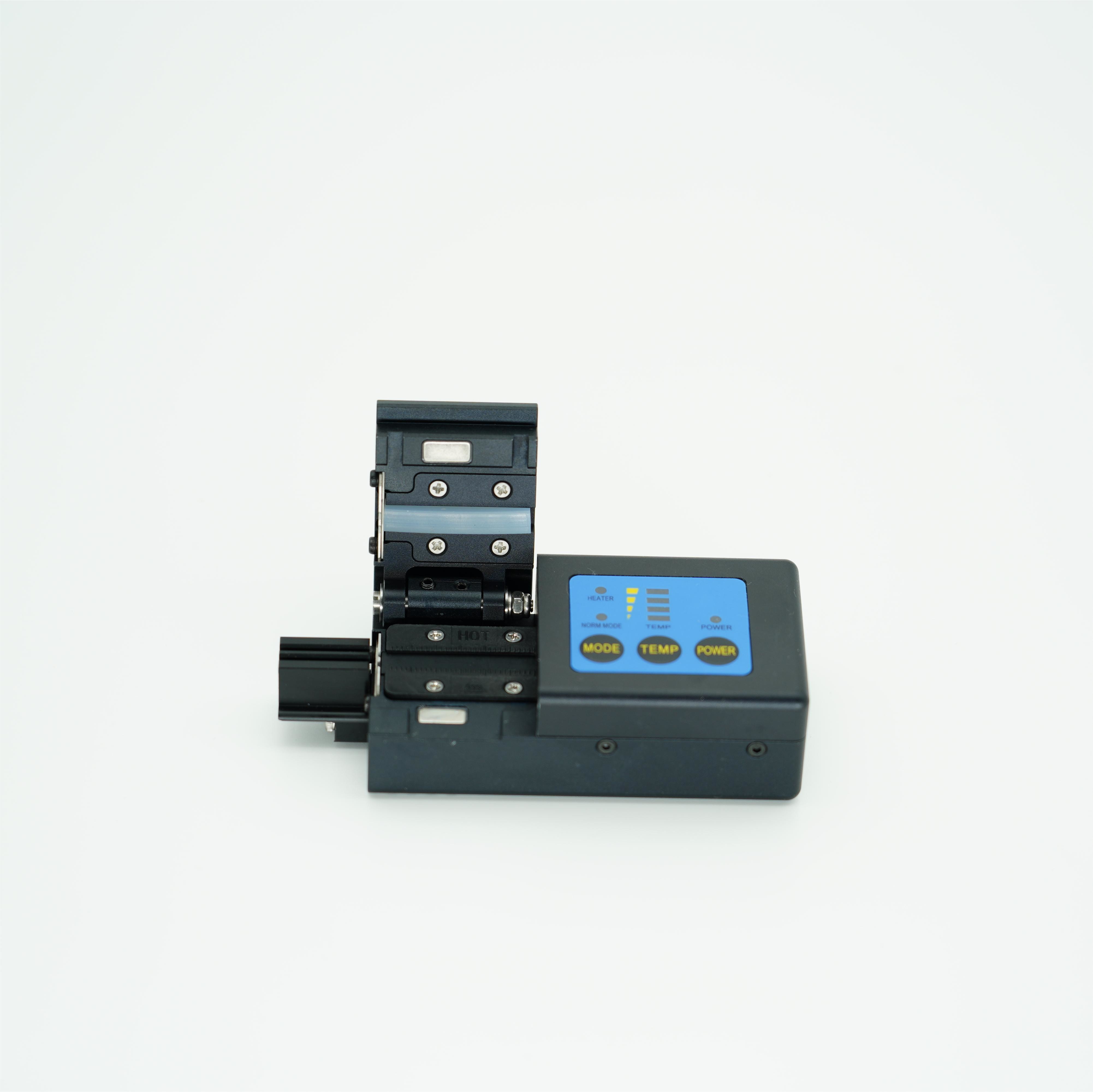

Simplex Fiber Thermal Stripper Hot Jacket Remover Ribbon Fiber Stripper In-built
Hot Ribbon Stripper Fiber Product description
CLX-RB02 single-core thermal stripper . The product with compact and light-weight design, easy to operate and reliable. Through vertical stripping, the applied force is light and stripping quality high. The blade is durable and easy to replace. Adopt guide groove and thermal stripping way to ensure no damage to the fiber, featuring easy and fast way to remove the coating layer.
heated optical stripping stripper Applicable fiber
Applicable Fiber Fiber type Silica fiber Coating material UV hardened resin Fiber- and coating thickness ≤0.9mm Fiber diameter 80-400μm
Fiber Optic Manual Thermal Stripper Features
1. Metal body, more durable. 2. Built-in lithium battery, which can be charged using a mobile phone charger. 3. 2 heating modes, 8 temperature choices, meeting a variety of fiber stripping needs. 4. The widened blade can strip multiple fibers at one time, improving work efficiency. 5. It has countdown and automatic shutdown functions.
optic thermal stripper specification
| Model number | CLX-RB02 |
| Stripped Length | Max. 30mm |
| Heating Mode | Normal mode |
| Heating Mode | Power-saving mode |
| Temperature Setting | Four Temp.: 80℃,100℃,120℃,130℃ |
| Power Supply | DC 12V2A |
| Dimensions | 92.5(L) X 46(D) X 31.5(H) mm |
| Weight | 498g |
| Environmental requirements | Humidity below 85% |
| Use | Fiber Stripping |
Company Profile
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010. Is an optical communications equipment company integrating research and development, production, after-sales service and technical services. Our main R & D and production: automatic fiber optic cable cutting machine, automatic epoxy glue injection machine, optical fiber connector polishing machine, optical fiber connector polishing fixture, optical fiber connector epoxy curing furnace, assembled pneumatic crimping machine, fiber end surface inspection Equipment, fiber connector insertion loss and return loss testers, as well as various fiber connector production equipment and all consumables and tools. We not only sell high-quality products and provide good after-sales service, but also provide free technical support to our customers. For the technical problems encountered in the production of optical fiber connectors, there are good solutions, I hope to help partners! Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. is willing to become a partner with you to reduce manufacturing costs and improve efficiency!
Certifications
About shipping:We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity
1. who are we?
We are based in Guangdong, China, start from 2010,sell to Domestic Market(50.00%),North America(10.00%),Oceania(10.00%),Southeast Asia(10.00%),South Asia(5.00%),Western Europe(5.00%),Southern Europe(5.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Polishing Machine; Fiber Optic Polishing Fixture; Fiber Optic Epoxy Curing Oven; Fiber Optic Crimping Machine; Fiber Optic End Face Detector
4. why should you buy from us not from other suppliers?
We have eleven years of R & D, design experience and technical reserves. Not only must we sell good products and provide good after-sales service, we also provide customers with free technical support (technical documents or videos)
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FAS；
Accepted Payment Currency:USD,CAD;
Accepted Payment Type: T/T,MoneyGram,Western Union;
Language Spoken:English,Chinese
