FEATURES OF D80 FIBER CABLES
* Sapphire and Air Gap Protection
* Precisely Polished D80 Fiber Connectors
* Step-index Fiber Optimized for VIS-NIR
* 0.22NA as Standard; Others on Request
APPLICATIONS OF D80 FIBER CABLES
* High-power and Flexible Laser Transmission
* Laser Welding
* Laser Cutting
* Other Fiber-coupled Laser Systems
<
>

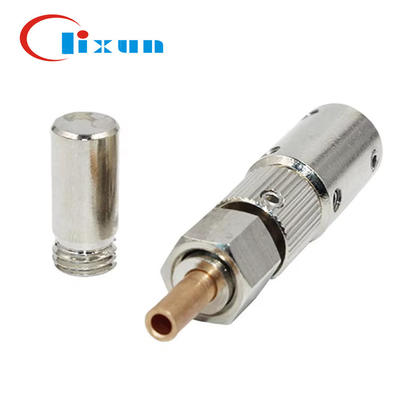

D80 Energy Optical Fiber Connector For 140um 240um 480um 660um 880um 1100um Optical Fiber
Brand Name:
CLX
Model Number:
D80
Place of Origin:
Guangdong,China
Certification:
CE RoHS SGS
Minimum Order Quantity:
10 Piece
Price:
Negotiable
Supply Ability:
10000 Piece/week
Product Details
| Product Name: | D80 Energy Optical Fiber Connector | Max Power SI600: | 600W-800W |
|---|---|---|---|
| Certification: | CE RoHS SGS | Material - Ferrule: | Stainless Steel |
| Hole Sizes: | 140 Micron To 1100 Micron | Application: | High-power And Flexible Laser Transmission |
| Used: | Medical Cosmetology & Laser Cutting | ||
| Highlight |
1100um optical fiber connector,240um optical fiber connector,140um optical fiber connector |
||
Product Description
D80 Energy optical fiber connector for 140um 240um 480um 660um 880um 1100um optical fiber
Model:D80
Place of Origin:ShenZhen,China
optical fiber connector D80 Description
D80 high power fiber laser

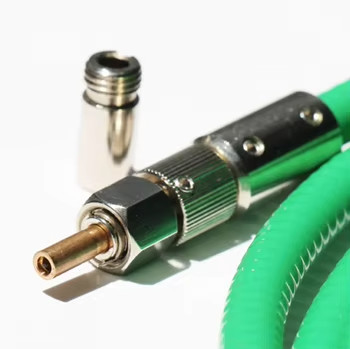

D80 fiber cables for high-power laser delivery
D80 fiber cables for high-power laser delivery are available in different fiber-core diameters from 200 microns to 800 microns(200μm, 300μm, 400μm, 600μm, 800μm). Heat dissipation plays a crucial role in the coupling of high-power. In principle, Hicorpwell D80 fiber cables use step-index double-clad fibers and ferrules of good heat-conducting copper alloys for laser transmission.
D80 Power Connector Feature
Good light through rate
Excellent anti fatigue
Large core diameter optical energy
Tensile strength
D80 Power Connector Applications
Optical measurement applications
Optical detection equipment
Detection of food safety
Factory automation
Laser cutting
Laser welding
Medical treatment
beautify
D80 Energy Optical Fiber Connector Specifications
| Connector | D80 |
| High power type | Water-cooled |
| Fiber core | 140um 240um 480um 660um 880um 1100um |
| Power | 600W-800W |
| NA | 0.22 or 0.37 |
| Cable | Armored or not |
