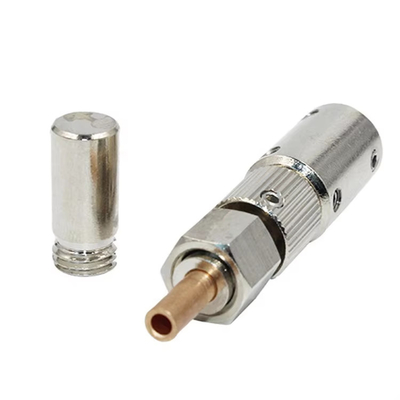

D80 Connector For 100/140um 200/240um 400/480um 600/660um 800/880um 1000/1100um D80 Fiber Cables
Product Details
| Product Name: | D80 Energy Fiber Connector | Max Power SI600: | 600W-800W |
|---|---|---|---|
| Certification: | CE RoHS SGS | Material - Ferrule: | Stainless Steel |
| Hole Sizes: | 140 Micron To 1100 Micron | Application: | High-power And Flexible Laser Transmission |
| Used: | Medical Cosmetology & Laser Cutting | ||
| Highlight |
600/660um D80 Connector,100/140um D80 Connector,1000/1100um D80 Connector |
||
Product Description
D80 Connector for 100/140um 200/240um 400/480um 600/660um 800/880um 1000/1100um D80 fiber cables
Model:D80
Place of Origin:ShenZhen,China

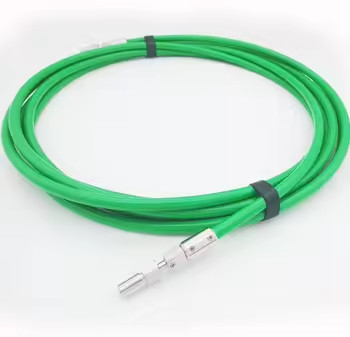

1000/1100um D80 Fiber Cables Description
D80 high power fiber laser
D80 fiber cables for high-power laser delivery are available in different fiber-core diameters from 200 microns to 800 microns(200μm, 300μm, 400μm, 600μm, 800μm). Heat dissipation plays a crucial role in the coupling of high-power. In principle, Hicorpwell D80 fiber cables use step-index double-clad fibers and ferrules of good heat-conducting copper alloys for laser transmission.
Areas of application include high power laser transmission, laser welding, laser cutting, and so onD80 fiber cables for high-power laser delivery are available in different fiber-core diameters from 200 microns to 800 microns
(200μm, 300μm, 400μm, 600μm, 800μm). Heat dissipation plays a crucial role in the coupling of high-power.
FEATURES OF D80 FIBER CABLES
* Sapphire and Air Gap Protection
* Precisely Polished D80 Fiber Connectors
* Step-index Fiber Optimized for VIS-NIR
* 0.22NA as Standard; Others on Request
APPLICATIONS OF D80 FIBER CABLES
* High-power and Flexible Laser Transmission
* Laser Welding
* Laser Cutting
* Other Fiber-coupled Laser Systems
* Medical care
* Beauty
High Power Fiber Cable Specifications
| Connector | D80 |
| High power type | Water-cooled |
| Fiber core | 140um 240um 480um 660um 880um 1100um |
| Power | 600W-800W |
| NA | 0.22 or 0.37 |
| Cable | Armored or not |
