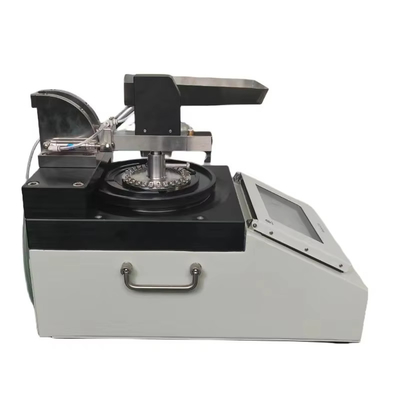

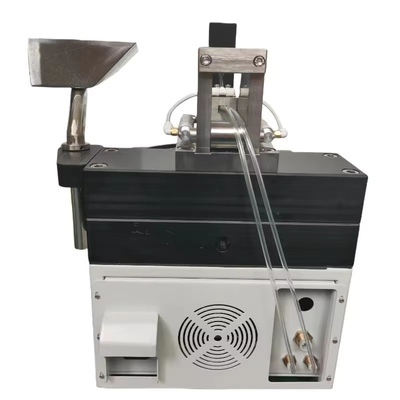

CLX-04E MPO MTP Fiber Polishing Machine For MPO MTP Connector Polishing Machine

CLX-04E MPO MTP fiber polishing machine for MPO MTP connector polishing machine

Model:CLX-04E

Place of Origin:ShenZhen,China

MPO polishing machine Product description:

CLX-04E polishing machine is developed and produced by our company for MTP/MPO patch cord and pigtail..Also apply to be used for many kinds of connectors,such as:FC/UPC,SC/UPC,ST/UPC,LC/UPC,MU/UPC,FC/APC,MT-RJ,E2000 etc. it is best for polishing MTP,MPO connectors.The polishing speed, polishing pressure and polishing time can be set separately in each process to ensure maximum process flexibility and optimal product quality. The polishing pressure is controlled by closed loop, and the stable precision can reach /-0.1LbS. Meanwhile, the time is controlled by the program controller, and the control precision is 0.1s.

MPO Fiber Optic Polishing Machine Feature:

1.Pc-based 7-inch touch screen.
2.Machine working voltage AC220V is converted into 24V; if the working voltage is 110V, pls Use a transformer to convert the
voltage.
3.Slow start, polishing compensation, program control. It can store 20 polishing processes, each of which supports 8 polishing
processes.
4.Programmable pressure and speed of slow start function.
5.Programmable polishing film counting function.
6.Programmable machine maintenance unit.
7.Pneumatic pressure control can be calibrated by feedback of pressure sensor.
8.The pressure can be compensated automatically according to the jumper number on the fixture.
9.speed Adjustable range is 10-200 RPM.
10.Process can be stored to other machines by USB.
11.Automatic alarm and stop when air pressure is low.
12.For larger loads, the machine can polishing 24 MTP/MPO connectors together, and the 3D interference pass rate is over 98%.
13.ntuitive and humanized operation interface, real-time display of current grinding process, running speed, pressure, and can
call any process at will.

MTP Fiber Optic Polisher Specification

Packaging and delivery

MPO Fiber Connector Polishing Machine Polishing Effect:

Geometry Test Result:

FPT Polarity Test:

ILRL Test Result:

Company profile:

Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010.

Is an optical communications equipment company integrating research and development,

production, after-sales service and technical services.

We not only sell high-quality products and provide good after-sales service,

but also provide free technical support to our customers. For the technical problems
encountered in the production of optical fiber patch cord, there are good solutions.

FAQ

1. Are you a factory or a trader?

-we are factory.

2. What is your MOQ?

-MOQ 1 piece.

3. Do you provide sample services?

-Yes, we will provide samples(Samples at prices announced by chuanglixun).

4. How will you ship to me?

-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.

5. How do we pay

-Book in advance or multiple payment methods such as T / T and T / L.

6. How long is your product warranty?

-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.

7. Do you provide customized services?

-Yes, we provide customized services, According to customer requirements and description.
