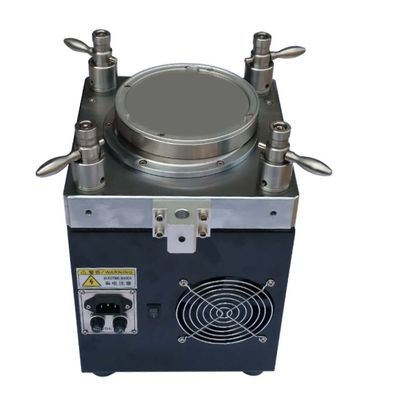

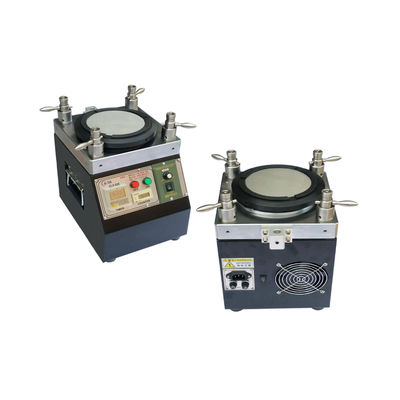

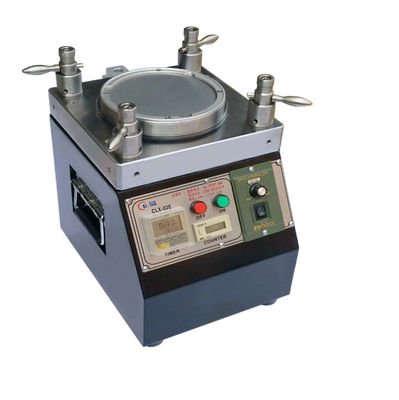

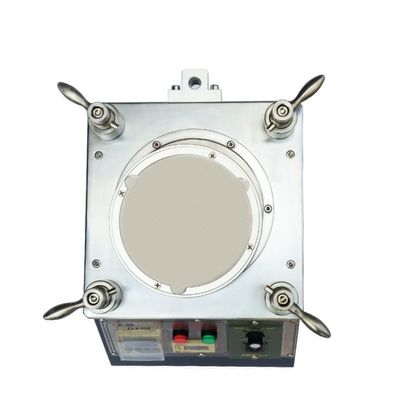

High-Precision Fiber Optic Polishing Machine with Adjustable Speed 140RPM for 48 MU/LC and 36 SC/FC/ST Connectors
Product Details
| Voltage: | 110~230VAC 50Hz/60Hz | Power: | 126W |
|---|---|---|---|
| Weight: | 27kg | Dimensions: | L 240mm X W 240mm X H 260mm |
| Connector Type: | SC/FC/ST/LC/E2000/SMA905/MU | Working Temperature: | 8°C-45°C |
| Rotation Plate O.D.: | 127 Mm (5 Inch) | Time Settings: | 99 Min 99 Sec (Max) |
| Rotation Speed: | 140 Rpm | Plate Jumpiness: | < 10 Um |
| Pressure Configuration: | 21 ~ 36 N/cm2 | Noise Level: | < 50 DB |
| Working Status Vibration: | 0.25g 5~100Hz 10min | Stopping Status Vibration: | 0.50g 5~100Hz 10min |
| Relative Humidity: | 15%~85% | ||
| Highlight |
Adjustable speed 140RPM Fiber Optic Polishing Machine,48 pcs MU/LC capacity Patch Cord Polishing Machine,36 pcs SC/FC/ST capacity Fiber Connector Polisher |
||
Product Description
- High-precision fiber optic polishing equipment

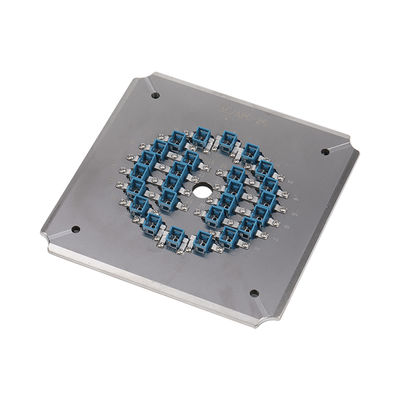

- Quick-change polishing jigs for efficient operation
- Planet orbit polishing trails with adjustable rotation speed (typically 140RPM)
- High capacity: 48 pcs for MU/LC connectors, 36 pcs for SC/FC/ST connectors
- 98%-100% first pass yield for end face quality
- IPC structure fixture with independent compression for each connector
- 3D pass rate ≥98% (typically 100% per IEC standards)
- APC return loss ≥60dB, PC(UPC) return loss ≥55dB, insertion loss ≤0.20dB (typical)
- Heat-treated stainless steel construction for precision and durability (8-10 year lifespan)
| Specification | Value |
|---|---|

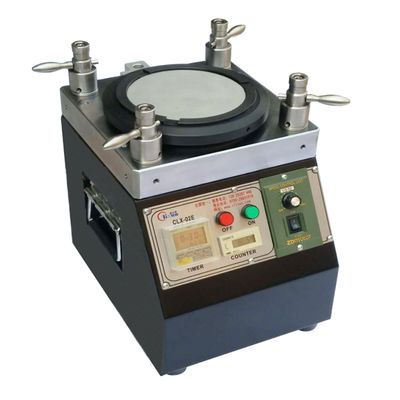

| Machine Type | CLX-02E |
| Machine Size | L 240mm × W 240mm × H 260mm |
| Net Weight | 28kg |
| Power Input | 110~230VAC 50Hz/60Hz |
| Electric Power | 126w |
| Relative Humidity | 15%~85% |
| Work Temperature | 8℃~45℃ |
| O.D. of Rotation Plate | 127 mm (5 inch) |
| Time Settings | 99 min 99 sec (Max) |
| Speed for Rotation Plate | 140 rpm |
| Height of Plate Jumpiness | < 10 μm |
| Pressure Configuration | 21 ~ 36 N/cm² |
| Noise Level | < 50 dB |
| Connector Type | SM/UPC | SM/APC | MM/UPC |
|---|---|---|---|
| Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.50dB |
| Return loss | ≥55dB | ≥55dB | ≥30dB |
| Parameters | UPC Criterion | APC Criterion |
|---|---|---|
| Radius of Curvature | 5-25mm | 5-12mm |
| Apex Offset | 0-50μm | 0-50μm |
| Fiber Height | -100~+50μm | -100~+50μm |
| Angle | n/a | 8.00+/-0.50° |
