Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production

1
MOQ
$115.23-126.15
Price
Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production
Features Gallery Product Description Request A Quote
Features
Specifications
Heating Temperature: 40-200 ℃
Temperature Accuracy: +/-5℃
Input Voltage: AC 110V Or AC 220V
Power Consumption: 200W
Curing Period: 30~45min
Curing Temperature: 80~120℃
Connector Capacity: 24 Connectors
Net Weight: 2.5 Kg
Maximum Temperature: 200℃
Curing Connectors: 1~24pcs
Dimensions: 170x140x190mm
Power: AC220V, 200W
Model Number: CLX-24D
Curing Models: FC, SC, ST, LC
Heating Block: 24 Port Block
Highlight:

40-200 ℃ Heating Temperature Fiber Optic Curing Oven

,

80-120℃ Normal Curing Temperature Epoxy Curing Oven

,

30-45min Curing Period Patchcord Production Oven
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Chuanglixun
Model Number: CLX-24D, CLX-24D
Payment & Shipping Terms
Product Description

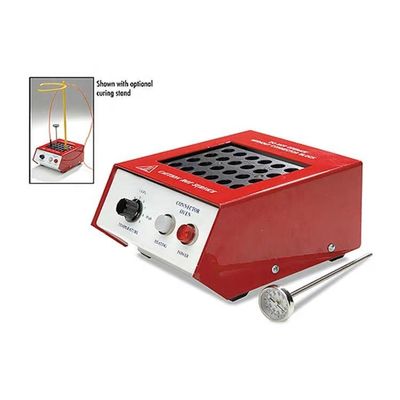

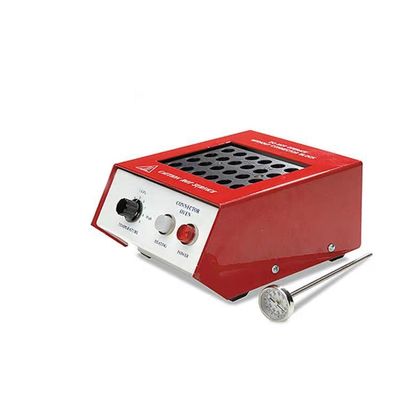

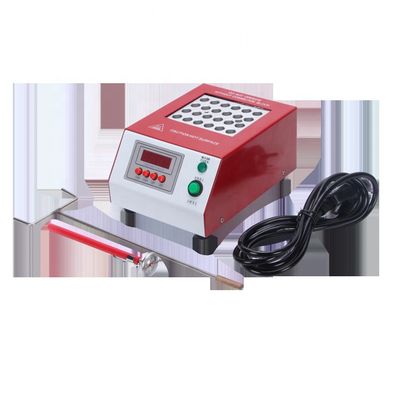

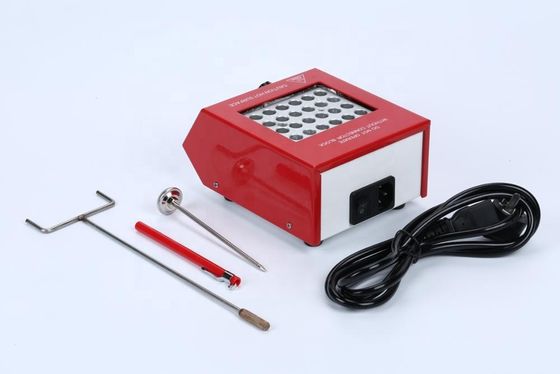

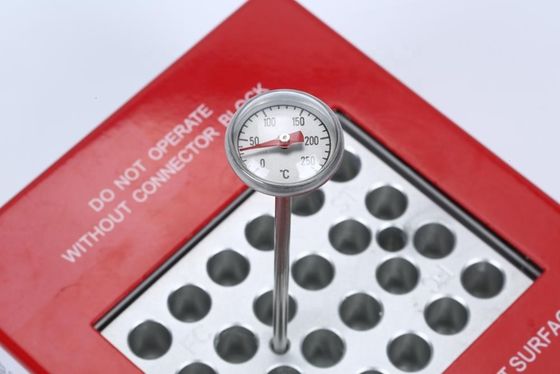

CLX-24D Fiber Optic Connector Ferrule Epoxy Curing Oven for Patchcord Production Digital Type Field Fiber Optic Oven
Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production 0
Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production 1
Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production 2
Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production 3
Product Highlights
  1. 24 connectors heating simultaneously
  2. Compatible with various connector types
  3. Heating block design minimizes heat loss
  4. Simple operation with excellent curing results
  5. Compact size for easy portability and quick heating
Key Features
  1. Specifically designed for epoxy curing of fiber optic connectors
  2. Adaptable to different connectors via interchangeable heating blocks
  3. Capacity for 24 connectors simultaneously
  4. Precise temperature control with power indicator
  5. Includes 24-port block for FC, ST, SC, SMA, D4 connectors
  6. Automatic timing with audible alarm when cycle completes
Technical Specifications
Curing Model FC, SC, ST, LC
Model Number CLX-24D
Type Fiber Optic Production Machine
Power AC220V, 200W
Maximum Temperature 200℃
Operating Temperature 80-120℃
Curing Period 30-45 minutes
Capacity 1-24 connectors
Weight 2.5kg
Dimensions 170×140×190mm
Warranty 1 Year
Applications
  • Universal curing solution for fiber optic connector manufacturers
  • Heating and solidification of various connector types
  • Epoxy curing for FC, SC, LC, MU, ST connectors
  • Suitable for both facility and field operations
Company Profile
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd., established in 2010, specializes in optical communications equipment. We integrate R&D, production, and technical services, offering a comprehensive range of fiber optic production equipment including automatic cable cutting machines, epoxy injection systems, polishing machines, curing ovens, and testing equipment. Our commitment extends beyond quality products to include exceptional after-sales support and free technical assistance for fiber optic connector production challenges.
Frequently Asked Questions
Who are we?
Based in Guangdong, China since 2010, we serve domestic and international markets including North America, Oceania, and Europe with a team of 11-50 professionals.
How do we guarantee quality?
We implement pre-production sampling and final inspection protocols before shipment.
What products do we offer?
Our portfolio includes fiber optic polishing machines, curing ovens, crimping machines, and end face detectors.
Why choose us?
With eleven years of R&D experience, we provide not only quality products but also comprehensive technical support including documentation and video resources.
What services do we provide?
We accept various delivery terms (FOB, EXW, FAS) and payment methods (T/T, MoneyGram) in multiple currencies, with support in English and Chinese.
Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production 4
