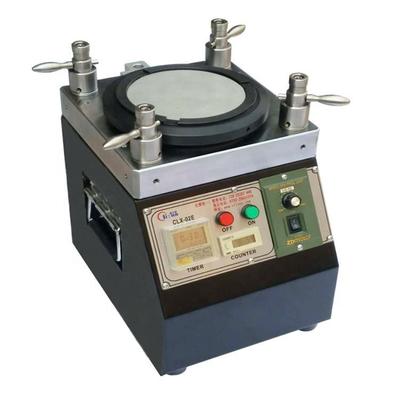

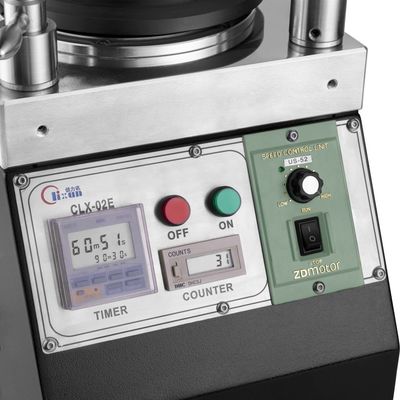

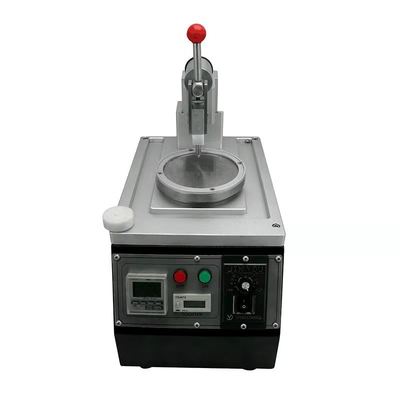

CLX02E Fiber Patch Cord Making Machine - 4 Corner Grinding Optical Fiber Polishing Machine
The Fiber Optical Polishing Machine is based on international universal standards and long-term hands-on experience. It exceeds requirements for GR-326 end face geometry and adapts to four corners compression with new I.P.C. holder technology, yielding the best results in the industry. This machine features no variability in results when polishing 1 or 24 connectors, stable jig installation, and compact size. Designed for mass production needs, it can process excellent connector end-faces for LC, SC, ST, FC, MTRJ, E2000 connectors, including angle polishing.
Key Features
High-precision fiber optic polishing equipment

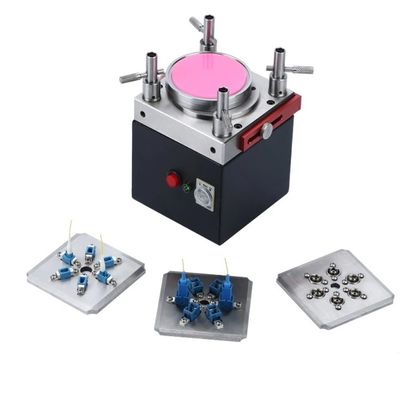

Quick-change polishing jigs for efficient operation
Planet orbit polishing trails with adjustable rotation speed (typically 140RPM)
High capacity: 48 pieces for MU/LC connectors, 36 pieces for SC/FC/ST
First pass yield for end face quality reaches 98%～100%

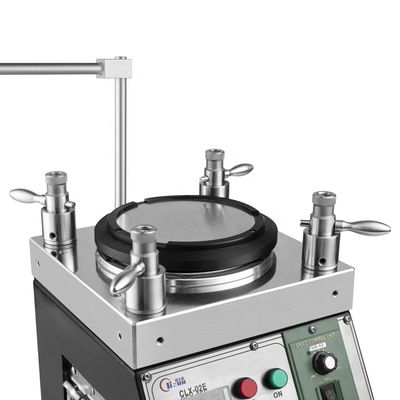

IPC structure fiber polishing fixture with independent compression for each connector
3D pass rate ≥98% (100% typical, according to IEC standards)
Excellent performance: APC return loss ≥60dB, PC(UPC) return loss ≥55dB, insertion loss ≤0.20dB (typical)
High-quality stainless steel construction with heat treatment for precision and durability
Excellent stability with 8-10 year lifespan
Technical Specifications
| Machine Type |
CLX-02E |
| Machine Size |
L 240mm × W 240mm × H 260mm |
| Net Weight |
28kg |
| Power Input |
110~230VAC 50Hz/60Hz |
| Electric Power |
126w |
| Relative Humidity |
15%~85% |
| Work Temperature |
8℃~45℃ |
| O.D. of Rotation Plate |
127 mm (5 inch) |
| Time Settings |
99 min 99 sec (Max) |
| Speed for Rotation Plate |
140 rpm |
| Height of Plate Jumpiness |
< 10 um |
| Pressure Configuration |
21 ~ 36 N/cm² |
| Noise Level |
< 50 dB |
Polishing Performance
Fiber End Face Inspection Results
High-quality end-face polishing with no white spots or scratches, clearly visible fiber edges.
IL/RL Test Results
| Connector Type |
SM/UPC |
SM/APC |
MM/UPC |
| Insertion Loss |
≤0.20dB |
≤0.20dB |
≤0.50dB |
| Return loss |
≥55dB |
≥55dB |
≥30dB |
Geometry Test Results
| Parameters |
UPC Criterion |
APC Criterion |
| Radius of Curvature |
5-25mm |
5-12mm |
| Apex Offset |
0-50μm |
0-50μm |
| Fiber Height |
-100~+50μm |
-100~+50μm |
| Angle |
n/a |
8.00+/-0.50° |
Frequently Asked Questions
Are you a factory or a trader?
We are a factory.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
We ship via DHL or FedEx in 4-6 days (may vary based on order quantity).
How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
1 year warranty (free repairs except for consumables). After warranty, we provide cost-based spare parts.
Do you provide customized services?
Yes, we provide customization according to customer requirements.
About Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd.
Established in 2010, Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. is an optical communications equipment company integrating research and development, production, after-sales service and technical services. We not only sell high-quality products with good after-sales service, but also provide free technical support and solutions for technical problems encountered in fiber optic connector production.
