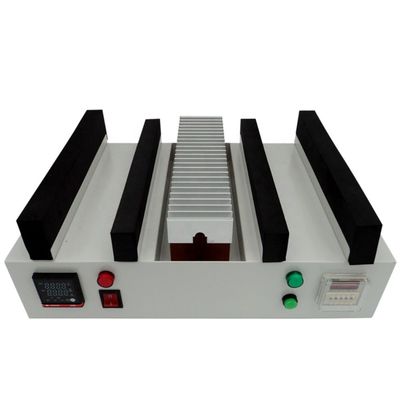

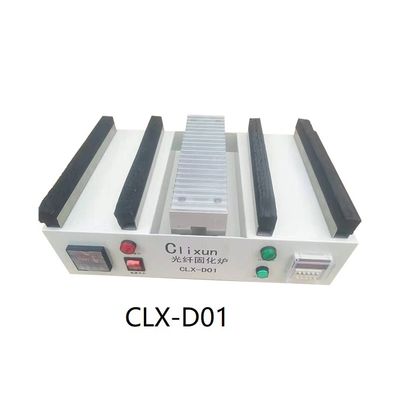

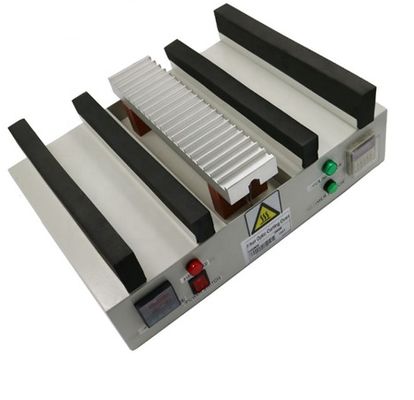

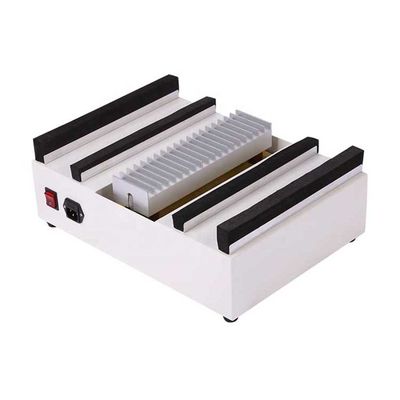

Horizontal Type Fiber Optic Curing Furnace with 40 ~ 300 ℃ Heating Temperature and 1 ℃ Control Precision

1
MOQ
$170.65-180.25
Price
Horizontal Type Fiber Optic Curing Furnace with 40 ~ 300 ℃ Heating Temperature and 1 ℃ Control Precision
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Size: 420*320*140(mm)
Accuracy: +/- 1 ℃
Power Consumption: 800w
Heating Time: 99.99 Hours Adjustable
Net Weight: 9kg
Heating Temperature: 40 ~ 300 ℃
Input Voltage: 100~120VAC, 50Hz / 200-240VAC, 50Hz
Dimensions: 425x325x150mm
Control Precision: 1℃
Processing Capacity: 100 Ceramic Ferrules Or 50 Fiber Optic Connectors
Suitable Connectors: SC/FC/ST/LC/E2000/MU (1.25MM/2.5MM Ceramic Ferrule)
Operating Voltage: AC220V
Working Frequency: 50-60Hz
Temperature Range: 20℃ 〜 300℃
Heating Modes: Continuous Heating Or Timing Alarm
Highlight:

40 ~ 300 ℃ Heating Temperature Fiber Optic Curing Furnace

,

1 ℃ Control Precision Fiber Patch Cord Curing Oven

,

800w Power Consumption Optical Fiber Heating Machine
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Chuanglixun
Model Number: CLX-D01
Payment & Shipping Terms
Product Description
Horizontal Type Curing Furnace for Optical Fiber Patch Cord
This fiber optic equipment is specially designed for heating and curing various fiber optic connectors. It features precise temperature control and high processing capacity, making it ideal for fiber optic connector manufacturers.
Key Specifications
Parameter Value
Net Weight 8 KG
Dimensions 425x325x150mm
Heating Temperature 20℃ - 300℃
Control Precision 1℃
Processing Capacity 100 ceramic ferrules or 50 fiber optic connectors
Compatible Connectors SC/FC/ST/LC/E2000/MU (1.25MM/2.5MM Ceramic ferrule)
Operating Voltage AC220V
Working Frequency 50-60Hz
Heating Time 1 minute - 99.99 hours
Power Consumption 800W
Horizontal Type Fiber Optic Curing Furnace with 40 ~ 300 ℃ Heating Temperature and 1 ℃ Control Precision 0
Product Features
  • Specially designed for optical fiber connector production to prevent fiber breaking, fiber drawing, and inspection issues
  • Adjustable reference temperature with automatic humidity adjustment (0℃ - 300℃)
  • Temperature control accuracy up to 1℃ with adjustable heating time
  • Two control modes: continuous heating mode and timing alarm mode
  • Can simultaneously cure 100 core joints or 42 integrated joints
  • Japanese electronic components for stable temperature control
  • PID function temperature controller for precise temperature management
Horizontal Type Fiber Optic Curing Furnace with 40 ~ 300 ℃ Heating Temperature and 1 ℃ Control Precision 1
Applications
This fiber optic connector heating curing furnace is suitable for fiber optic connector manufacturers, used for heating and curing all kinds of fiber optic connectors. It's ideal for high-volume production environments requiring precise temperature control.
Get a free Quotation via Us >>> GO
Frequently Asked Questions
1. Are you a factory or a trader?
We are factory.
2. What is your MOQ?
MOQ 1 piece.
3. Do you provide sample services?
Yes, we will provide samples.
4. How will you ship to me?
We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay?
Book in advance or multiple payment methods such as T/T and T/L.
6. How long is your product warranty?
The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
Yes, we provide customized services according to customer requirements and description.
Horizontal Type Fiber Optic Curing Furnace with 40 ~ 300 ℃ Heating Temperature and 1 ℃ Control Precision 2
