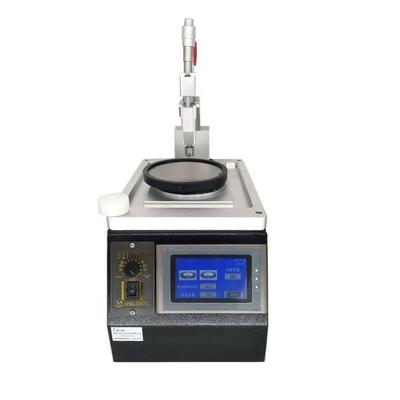

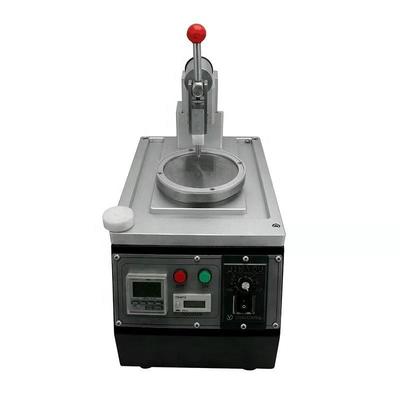

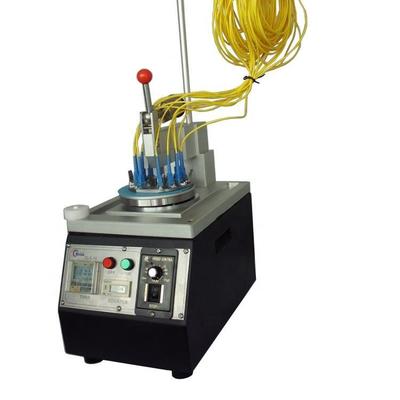

40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications
Product Details
| Power Supply: | 110~220V AC 50Hz/60Hz | Electric Power: | 40W |
|---|---|---|---|
| Size: | 340*220*460mm | Weight: | 25kg |
| Polishing Plate Size: | 127mm | Working Temperature: | 8C°-45C° |
| Relative Humidity: | 15%~85% | Time Settings: | 99 Min 99 Sec (Max) |
| Working Status: | 0.25g 5~100Hz 10min | Stopping Status: | 0.50g 5~100Hz 10min |
| Connector Type: | SC /FC /ST/LC/E2000/SMA905/MU | Model Number: | CLX-10 |
| Net Weight: | 25kg | Power Supply: | 110~220VAC 50Hz/60Hz |
| Highlight |
40W Electric Power Fiber Optic Polishing Machine,127mm Polishing Plate Fiber Optic Polishing Machine,340*220*460mm Size Fiber Optic Polishing Machine |
||
Product Description
| Model Number | CLX-10 |
| Size | 340mm × 220mm × 460mm |
| Net Weight | 25kg |
| Power Supply | 110~220VAC 50Hz/60Hz |
| Electric Power | 40W |
| Application | Fiber Optic Polishing |
| Work Temperature | 8℃~45℃ |
| Connector Type | SC/FC/ST/LC/E2000/SMA905/MU |
| Relative Humidity | 15%~85% |
| Time settings | 99 min 99 sec (Max) |
| Working Status | 0.25g 5~100Hz 10min |
| Stopping Status | 0.50g 5~100Hz 10min |
| Warranty | Two-year warranty |
| MOQ | 1 set |
Product Highlights
High Quality Multi Function Mini Buffing Bench Polishing Machine for Optical Fibers Technical Specifications Model Number CLX-10 Size 340mm × 220mm × 460mm Net Weight 25kg Power Supply 110~220VAC 50Hz/60Hz Electric Power 40W Application Fiber Optic Polishing Work Temperature 8℃~45℃ Connector Type SC...
