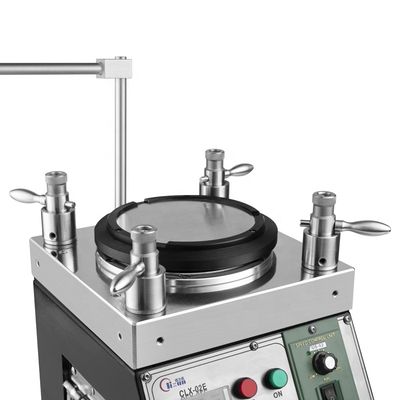

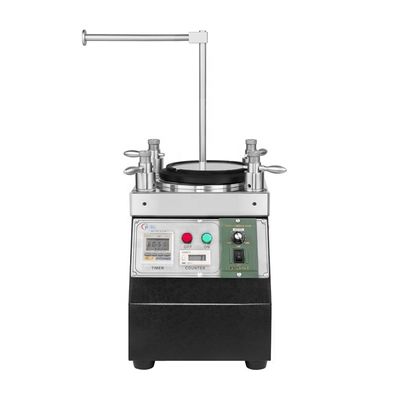

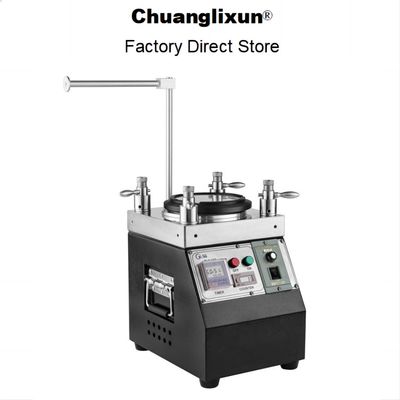

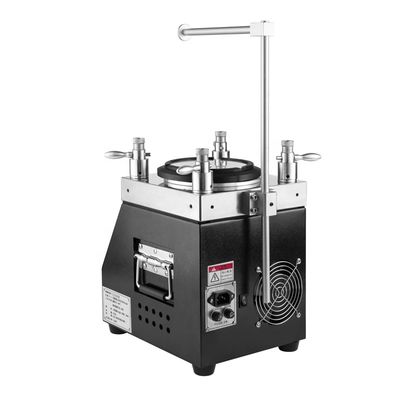

High-Capacity Fiber Optic Polishing Machine with 48 Pcs MU/LC and 36 Pcs SC/FC/ST Connector Polishing and 98% First Pass Yield
Product Details
| Machine Size: | L 240(mm) X W 240(mm) X H 260(mm) | Net Weight: | 28 Kg |
|---|---|---|---|
| Power Input: | 110~230 VAC 50Hz/60Hz | Electric Power: | 126W |
| Work Temperature: | 10° ~ 40 ° | Relative Humidity: | 15%~85% |
| Insertion Loss: | ≤0.20dB (typical) | Return Loss: | PC(UPC) ≥55dB, APC ≥60dB |
| Rotation Plate O.D.: | 127 Mm (5 Inch) | Time Settings: | 99 Min 99 Sec (Max) |
| Rotation Speed: | 140 Rpm | Plate Jumpiness: | < 10 Um |
| Pressure Configuration: | 21 ~ 36 N/cm2 | Noise Level: | < 50 DB |
| Working Status Vibration: | 0.25g 5~100Hz 10min | ||
| Highlight |

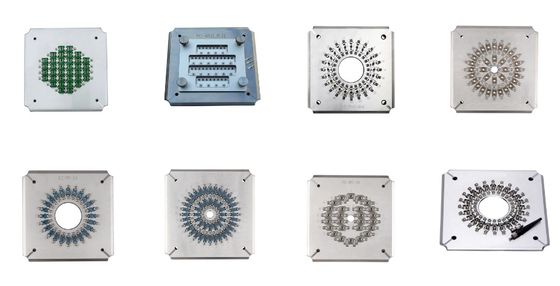

48 Pcs MU/LC Capacity Fiber Optic Polishing Machine,36 Pcs SC/FC/ST Capacity Patch Cord Polishing Machine,98% First Pass Yield Fiber Connector Polisher |
||
