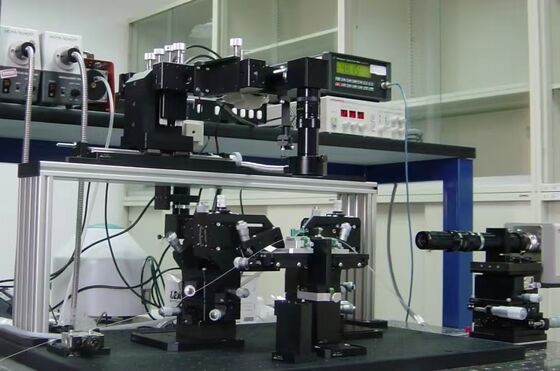

CLX High Precision ±0.1μm Seven-axis PLC Auto- Pair Optical Coupling System Fiber Alignment Equipment for Optical Communication
Model: CLX-PLC
Place of Origin:ShenZhen,China
Optical Splitter Equipment Product Descriptions
It is suitable for the alignment coupling of single or multi-core devices such as: optical fiber, optical fiber display and optical waveguide, such as PLC chip waveguide to light, AWG chip waveguide to light, covering all different products.
Based on the unique intelligent algorithm of PLC automatic optical coupling system, it effectively improves the production efficiency, low employee dependence, good product performance and high product reliability, it has been successfully applied to several major optical device manufacturers at home and abroad. The main hardware of the automation equipment of the technology platform is Japanese motor, high accuracy, long life and high reliability, and the hardware can also be selected according to customer requirements.
PLC splitter Features
(1) Provide supporting process, the product reliability can be boiled for 200
hours;
(2) Short training period, simple operation, and the production capacity can
reach 28 pcs / hour;
(3) Fast alignment speed, higher accuracy, better repeatability, and
extremely high stability in similar equipment;
(4) Simple operation, all working steps can be completed on the same platform;
(5) System modular structure, easy to maintain;
(6) High-precision sensor, control the point glue gap easily;
(7) With silicon optical waveguide coupling, AWG, spectrometer, collimator,
special optical fiber and other related optical path coupling;
(8) Observe the system components combined by microzoom lens, CCD, monitor
and other structures, which is easier to operate;
(9) High degree of automation, high-speed power meter, UVLED, driver
integrated in a control box can effectively save the space of the
station, so that the station more brief, convenient;
- 1 -(10) Different equipment solutions can be customized according to customer
needs.
MPO Patch Cord Polarity Tester Specification:
|
1. Product Name
|
PLC Equipment
|
|
2. Model
|
CLX-PLC
|
|
3. Application
|
Optical splitter Production
|
|
4. Route or Distance of
|
20 mm
|
|
4. Automatic coupling,and closing time
|
< 25 Seconds
|
|
5. vision system
|
200, all-pixel
|
|
6. Power supply
|
110VAC/220VAC 50HZ 5W
|
|
7. light power meter
|
The measurement |
|
8. Size
|
39*36*37 (cm)
|
|
9. Net Weight / Gross Weight (kg)
|
30 kgs / 35 kgs
|
Packaging and delivery
Selling Units:
Single item
Single package size:
45*36*35 cm (length x width x height)
Single gross weight:
35 KG
Company profile:
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010.
Is an optical communications equipment company integrating research and development,
production, after-sales service and technical services.
We not only sell high-quality products and provide good after-sales service,
but also provide free technical support to our customers. For the technical problems
encountered in the production of optical fiber patch cord, there are good solutions.
About shipping:
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies,
you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity
FAQ
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
-MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4. How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
