Semi-Automatic Fiber Cable Coiling Machine with Adjustable Winding Size (50-150MM) and PLC Program Control for AC220V Power Supply

1
MOQ
$599.32-618.21
Price
Semi-Automatic Fiber Cable Coiling Machine with Adjustable Winding Size (50-150MM) and PLC Program Control for AC220V Power Supply
Features Gallery Product Description Request A Quote
Features
Specifications
Power Supply Voltage: AC220V
Power Frequency: 50HZ/60HZ
Rated Power: 80W
Total Weight: 38Kg
Winding Size: 50-150MM
Winding Speed: 1-30 Gears
Number Of Windings: 1-999 Turns
Number Of Coils: 2-6 Turns
Thread Tie Speed: 1-3 Gears
Dimensions: 350x250x220mm
Maximum Diameter Range: Φ05-40mm
Cable Tie Length: 60-140mm
Protection Device: Fuse, Fault Alarm Shutdown
Machine Model: CLX-30A
Recommended Material: Coated Iron Core
Highlight:

Adjustable Winding Size Fiber Cable Coiling Machine

,

PLC Program Control Optical Fiber Binding Machine

,

AC220V Power Supply Semi-Automatic Coiling Equipment
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Chuanglixun
Model Number: CLX-30A
Payment & Shipping Terms
Product Description

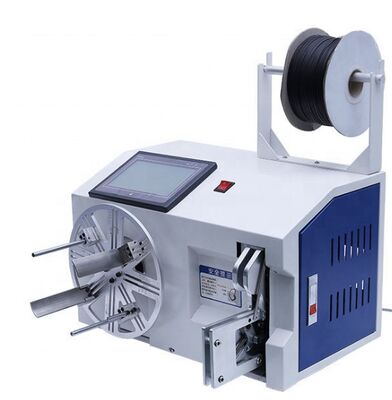

Semi-Automatic Optical Fiber Cable Coiling Machine
This advanced semi-automatic optical fiber cable coiling, pulling, and winding bundle binding machine is designed for efficient cable management and bundling operations in manufacturing environments.
Product Overview
This equipment is suitable for optical fiber connectors, optical fiber jumpers, AC power cords, DC power cords, USB data cables, earphone cables, RCA cables, video cables, HDMI high-definition cables and other transmission lines that are twisted into bundles with rubber cores. It can also be used for tapes and other applications that require rubber-coated iron core sealing.
Key Benefits
  • Reduces employee fatigue and improves work efficiency
  • Saves cable ties and reduces material costs
  • Simple operation - employees only need to place wires on winding port
  • Automatic winding and tape tying functionality
  • PLC program control with text display for parameter setting
Technical Specifications
Model Number CLX-30A
Power Supply Voltage AC220V
Power Frequency 50HZ/60HZ
Rated Power 80W
Winding Size Adjustable (50-150MM)
Winding Speed User configurable (1-30 gears)
Number of Windings User configurable (1-999 turns)
Dimensions (LxWxH) 350x250x220mm
Total Weight 38Kg
Machine Model Compatibility
Machine Model Cable Tie Length Maximum Diameter Range
CLX-30A new style 60-140 Φ05-40mm
CLX-40A new style 150-260 Φ30-70mm
CLX-25A 75-130 Φ05-25mm
CLX-35A 120-200 Φ05-40mm
Additional Settings
  • Number of coils: User configurable (recommended 2-6 turns)
  • Thread tie speed: User configurable (1-3 gears, recommendation 2)
  • Recommended PE material for cable tie: Coated iron core
  • Protection device: Fuse, fault alarm shutdown
Product Images
Semi-Automatic Fiber Cable Coiling Machine with Adjustable Winding Size (50-150MM) and PLC Program Control for AC220V Power Supply 0 Semi-Automatic Fiber Cable Coiling Machine with Adjustable Winding Size (50-150MM) and PLC Program Control for AC220V Power Supply 1 Semi-Automatic Fiber Cable Coiling Machine with Adjustable Winding Size (50-150MM) and PLC Program Control for AC220V Power Supply 2 Semi-Automatic Fiber Cable Coiling Machine with Adjustable Winding Size (50-150MM) and PLC Program Control for AC220V Power Supply 3
Shipping Information
We typically use DHL, FEDEX, UPS, EMS, TNT or Sea shipping methods. You can provide your courier account, and we will help you select the most cost-effective shipping option based on quantity.
Get a free Quotation via Us >>>GO
Frequently Asked Questions
Are you a factory or a trader?
We are a factory.
What is your MOQ?
MOQ 1 piece.
Do you provide sample services?
Yes, we will provide samples.
How will you ship to me?
We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
How do we pay?
Book in advance or multiple payment methods such as T/T and T/L.
How long is your product warranty?
The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
Do you provide customized services?
Yes, we provide customized services according to customer requirements and description.
Semi-Automatic Fiber Cable Coiling Machine with Adjustable Winding Size (50-150MM) and PLC Program Control for AC220V Power Supply 4 Semi-Automatic Fiber Cable Coiling Machine with Adjustable Winding Size (50-150MM) and PLC Program Control for AC220V Power Supply 5
