High Precision 40W Fiber Optic Polishing Machine with 127mm Polishing Plate for Ferrule Polishing

1
MOQ
$950-1,050
Price
High Precision 40W Fiber Optic Polishing Machine with 127mm Polishing Plate for Ferrule Polishing
Features Gallery Product Description Request A Quote
Features
Specifications
Net Weight: 25kgs
Power Supply: AC220-230V
Power: 40W
Machine Size: 340*220*500mm
Insertion Loss: <=0.2db
Return Loss: >=50db (PC) >=60db (APC)
Polishing Plate Size: 127mm(5 Inch)
Ferrule Diameter: 1.25mm~3mm
Voltage: AC220-240V
Frequency: 50/60Hz
Polishing Disc Diameter: 127 Mm
Polishing Runout: ±0.005mm
Polishing Speed: 0-150RPM Adjustable Speed
Control Method: Touch Screen
First Pass Yield: 98%～100%
Highlight:

High Precision Fiber Optic Polishing Machine

,

40W Ferrule Polishing Machine

,

127mm Polishing Plate Optic Fiber Polisher
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: chuagnlixun
Model Number: CLX-10, CLX-10
Payment & Shipping Terms
Product Description
High Precision Optic Fiber Bare Fiber Polishing Machine
Non-standard 2.5mm/1.25mm Ferrule Polishing Machine, 40W AC220-230V
Key Features
  • Touch screen controlled polishing procedure for easy operation and consistent quality control
  • Center pressure polishing fixture with high precision spring pressure control for superior precision and consistency
  • Planetary orbit polishing trajectory with adjustable speed range of 0-150 RPM/minute
  • High capacity: 40pcs for 2.5mm ferrules or 48pcs for 1.25mm custom ferrules
  • Exceptional first pass yield: 98% to 100% for end face quality
  • Produces geometric surfaces meeting IEC standard requirements
  • Superior performance: APC return loss ≥60dB, UPC return loss ≥55dB, Insertion loss ≤0.20dB (typical)
Technical Specifications
Model Number CLX-10
Voltage AC220-240V
Frequency 50/60Hz
Power 40W
Weight 25Kg
Size 340mm x 220mm x 500mm
Polishing Disc Diameter 127 mm
Ferrule Diameter 1.25mm - 3mm
Polishing Runout ±0.005mm
Insertion Loss ≤0.20dB
Return Loss ≥50dB (PC) / ≥60dB (APC)
Polishing Speed 0-150 RPM adjustable
Control Method Touch Screen
Application Custom Ferrule Polishing
Warranty Time 12 months
Product Images

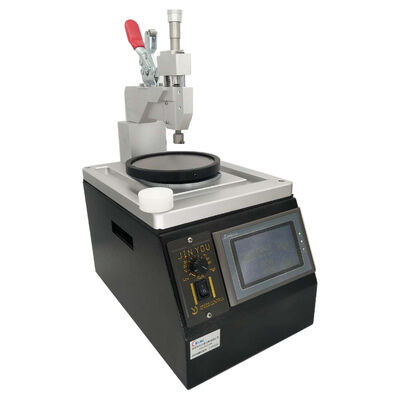

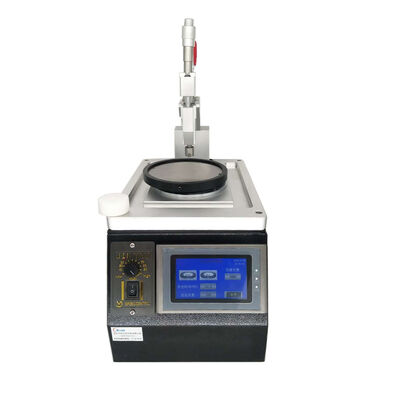

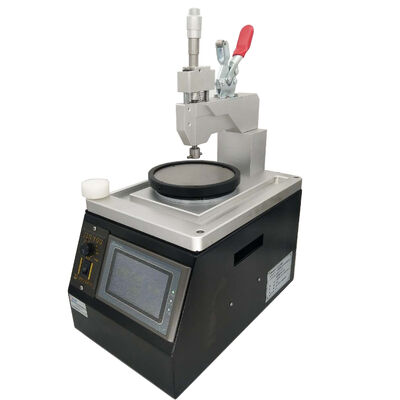

High Precision 40W Fiber Optic Polishing Machine with 127mm Polishing Plate for Ferrule Polishing 0 High Precision 40W Fiber Optic Polishing Machine with 127mm Polishing Plate for Ferrule Polishing 1 High Precision 40W Fiber Optic Polishing Machine with 127mm Polishing Plate for Ferrule Polishing 2 High Precision 40W Fiber Optic Polishing Machine with 127mm Polishing Plate for Ferrule Polishing 3 High Precision 40W Fiber Optic Polishing Machine with 127mm Polishing Plate for Ferrule Polishing 4 High Precision 40W Fiber Optic Polishing Machine with 127mm Polishing Plate for Ferrule Polishing 5
Shipping Information
We utilize major international shipping carriers including DHL, FEDEX, UPS, EMS, TNT, or Sea freight. You may provide your courier account, and we will select the most cost-effective shipping method based on order quantity.
High Precision 40W Fiber Optic Polishing Machine with 127mm Polishing Plate for Ferrule Polishing 6
Frequently Asked Questions
Are you a factory or a trader?
We are a factory.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
Shipping typically takes 4 to 6 days via DHL or FedEx, with timing adjusted based on order quantity.
How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
The warranty period is 1 year (covering free repairs, excluding consumables). After warranty expiration, we continue to provide accessories at cost price.
