Fiber Optic Patch Cord Production Equipment

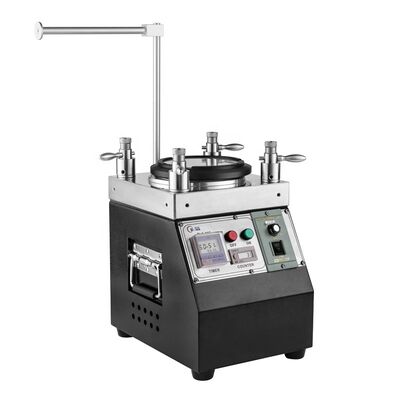

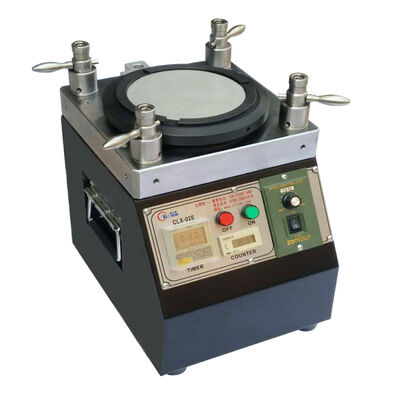

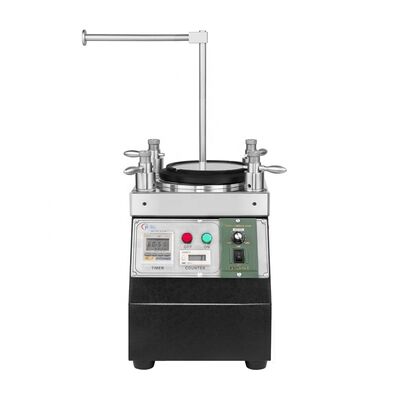

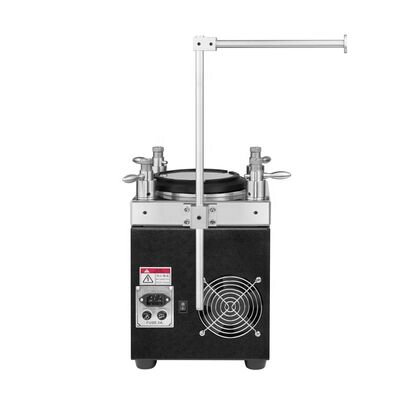

Professional fiber optic polishing machine designed for mass production of high-quality connector end-faces including LC, SC, ST, FC, MTRJ, E2000 and angle polishing applications.
Key Features

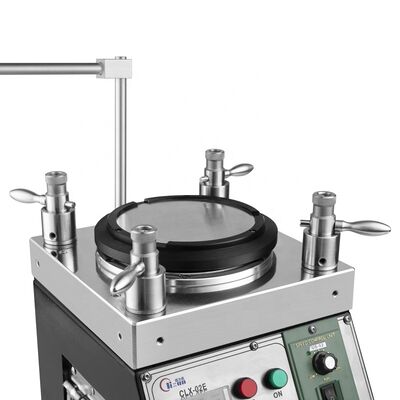

- High-precision fiber optic polishing equipment meeting GR-326 standards
- Quick-change polishing jigs for efficient operation

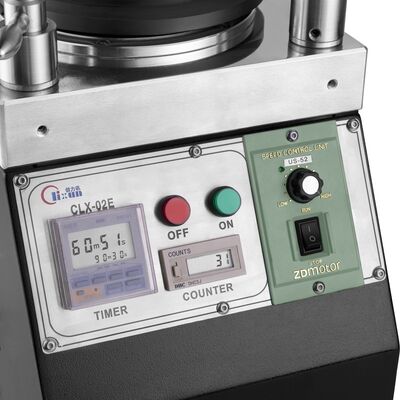

- Planetary orbit polishing motion with adjustable rotation speed (140RPM)
- High capacity: 48 pcs for MU/LC connectors, 36 pcs for SC/FC/ST connectors
- 98-100% first pass yield for end face quality
- IPC structure with independent compression for each connector
- Excellent performance: APC return loss ≥60dB, PC/UPC return loss ≥55dB
- High-quality stainless steel construction for durability and 8-10 year lifespan
Technical Specifications
| Parameter |
Specification |
| Machine Type |
CLX-02E |
| Machine Size |
240mm × 240mm × 260mm |
| Net Weight |
28kg |
| Power Input |
110-230VAC 50Hz/60Hz |
| Electric Power |
126W |
| Relative Humidity |
15%-85% |
| Work Temperature |
8℃-45℃ |
| Rotation Plate O.D. |
127mm (5 inch) |
| Time Settings |
99 min 99 sec maximum |
| Rotation Speed |
140 rpm |
| Pressure Configuration |
21-36 N/cm² |
| Noise Level |
<50 dB |
Get a free Quotation via Us >>> GO
Polishing Performance Results
High-quality end-face polishing with no white spots or scratches, clearly visible fiber edges
Insertion Loss & Return Loss Test Results
| Connector Type |
SM/UPC |
SM/APC |
MM/UPC |
| Insertion Loss |
≤0.20dB |
≤0.20dB |
≤0.50dB |
| Return Loss |
≥55dB |
≥55dB |
≥30dB |
Geometry Test Results
| Parameter |
UPC Criterion |
APC Criterion |
| Radius of Curvature |
5-25mm |
5-12mm |
| Apex Offset |
0-50μm |
0-50μm |
| Fiber Height |
-100~+50μm |
-100~+50μm |
| Angle |
n/a |
8.00+/-0.50° |
Get a free Quotation via Us >>> GO
