High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector

1
MOQ
$750-800
Price
High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Light Source Wavelength: MM:850nm/1300nm SM:1310/1550/650,850 1310/1490/1550
Storage Temperature: -5~+60℃
Access Port: RS232/GPB(Optional)
Resolution: ±0.3dB
Photo Detector: InGaAs
Power Supply: 110VAC/220VAC 50HZ
Measurement Range: +3 ~ -75dBm
Dimension: 265x260x120(mm)
Weight: 3kg
Return Loss Range: 14.8 ~ 75dB
Output Stability: 0.05dB(1 Hour@25°C)
Measurement Accuracy: 0.25dB
Wavelength Range: 800~1700nm
Operation Temperature: -5℃~+55℃
Communication Port: USB
Highlight:

High Measurement Accuracy IL/RL Tester

,

Multiple Working Modes Fiber Optic Test Station

,

Universal Optical Connector Insertion Loss & Return Loss Test Station
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Chuanglixun
Model Number: 7420B
Payment & Shipping Terms
Product Description
IL/RL Tester Patch Cord Fiber Optics Connector Test Station
Professional benchtop insertion loss and return loss test station for fiber optic cables and connectors.

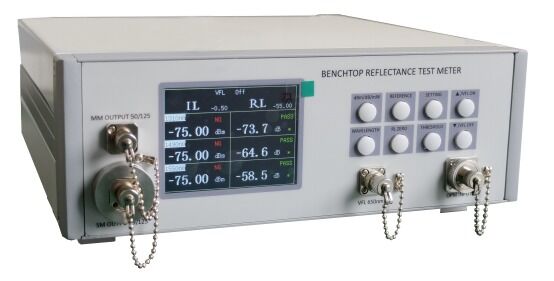

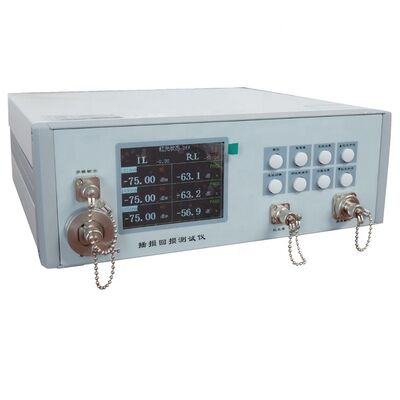

High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector 0 High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector 1
Key Features
  • High measurement accuracy for precise testing
  • Synchronously auto-setting wavelength
  • Multiple working modes for versatile applications
  • Easy operation with intuitive interface
  • Human engineering design for user comfort
  • Universal optical connector with easy cleaning
  • USB port for data transfer and connectivity
High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector 2 High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector 3
Applications
  • Testing pigtails and patch cords
  • Optical connections in communication equipment rooms
  • Optical distribution frames testing
  • Optical apparatus and equipment connections
Technical Specifications
Product Name Insertion and Return Loss Test Station
Origin China
Optical Return Loss Test Wavelength: 1310/1550nm
Optic Connector FC/APC
Return Loss Measurement Range 14.8 ~ 75dB
Output Stability 0.05dB (1 hour @25°C)
Measurement Accuracy 0.25dB
Resolution ±0.3dB
Optical Power & Insertion Loss Test Wavelength Range: 800~1700nm
Calibrated Wavelength 850/1300/1310/1550nm (others optional)
Optic Connector (Power Meter) Interchangeable FC/SC/ST/2.5mm Universal /1.25mm adaptors
Photo Detector InGaAs
Display Modes dBm/dB/xW
Measurement Range +3 ~ -75dBm
Resolution Non-linear: 0.001dB; Linear: 0.001nw/µW/mW
Measurement Accuracy ±5%
Communication Port USB
Power Supply AC 90-260V, 50~60Hz
Operation Temperature -5℃ ~ +55℃
Storage Temperature -25℃ ~ +70℃
Dimensions 360×240×130mm
Weight 2.8kg
High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector 4 High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector 5 High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector 6 High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector 7 High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector 8 High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector 9
Shipping Information
We utilize major international carriers including DHL, FEDEX, UPS, EMS, TNT, or Sea freight. You may provide your courier account, and we will select the most cost-effective shipping method based on quantity and destination.
Frequently Asked Questions
  • Who are we?
    Based in Guangdong, China since 2010, serving Southeast Asia (38%), North America (38%), and Northern Europe (2%) with 11-50 dedicated professionals.
  • How do we guarantee quality?
    Pre-production samples before mass production and final inspection before shipment ensure consistent quality standards.
  • What can you buy from us?
    Optical fiber connector manufacturing equipment, fiber jumpers, manufacturing tools and supplies, fiber optic connector adapters, and technical services.
  • Why choose us over other suppliers?
    Eleven years of R&D, design experience, and technical expertise. We provide excellent products, comprehensive after-sales service, and free technical support including documentation and videos.
  • What services do we provide?
    Accepted delivery terms: FOB, EXW, FAS
    Accepted payment: USD, CAD via T/T, MoneyGram, Western Union
    Languages: English, Chinese
