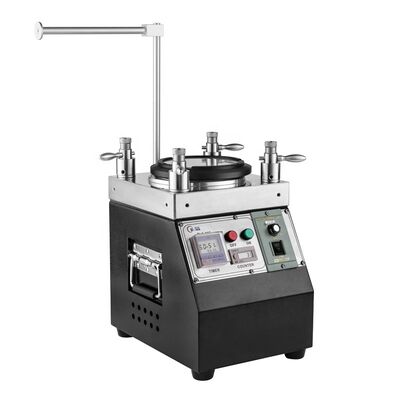

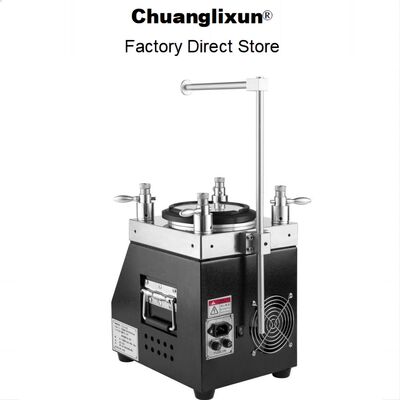

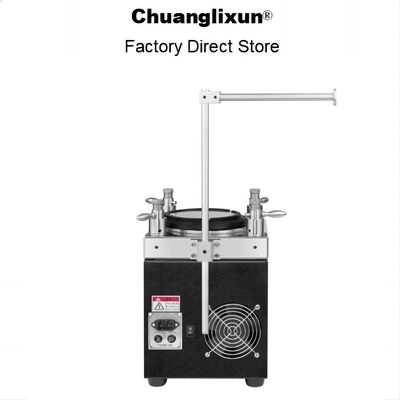

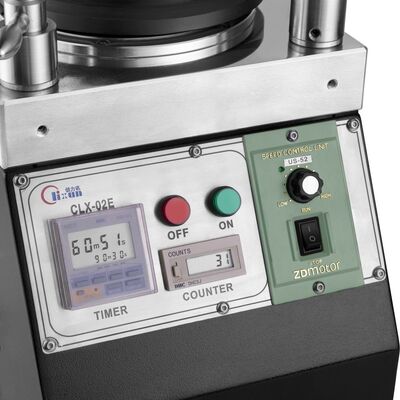

CLX-02E Optical FTTH Patch Cord Pigtail Production Fiber Optic Polishing Machine
The CLX-02E Fiber Optical Polishing Machine is engineered based on international universal standards and extensive hands-on experience. This advanced equipment exceeds GR-326 end face geometry requirements and incorporates four-corner compression with innovative IPC holder technology, delivering industry-leading results.
Designed for mass production environments, this machine consistently produces excellent connector end-faces for LC, SC, ST, FC, MTRJ, E2000 connectors and supports angle polishing applications. Performance remains consistent whether polishing 1 or 24 connectors simultaneously.
Key Features
- High-precision fiber optic polishing equipment with planetary orbit polishing trails
- Quick-change polishing jigs for efficient operation
- Adjustable polishing rotation speed (typically 140 RPM)
- Maximum capacity: 48 pieces for MU/LC connectors, 36 pieces for SC/FC/ST connectors
- First-pass yield rate of 98-100% for end face quality
- IPC structure with independent compression for each connector
- 3D pass rate ≥98% (typically 100% per IEC standards)
- APC return loss ≥60dB, PC/UPC return loss ≥55dB
- Insertion loss ≤0.20dB (typical)
- High-quality heat-treated stainless steel construction for precision and durability
- Excellent stability with 8-10 year operational lifetime
Technical Specifications
| Machine Size |
L 240mm × W 240mm × H 260mm |
| Net Weight |
28 kg |
| Power Input |
110-230VAC 50Hz/60Hz |
| Electric Power |
126 W |
| Relative Humidity |
15%-85% |
| Work Temperature |
10℃-40℃ |
| Material |
Stainless Steel |
| Time Settings |
99 min 99 sec (Maximum) |
| Speed for Rotation Plate |
140 rpm |
| Height of Plate Jumpiness |
<10 μm |
Get a free Quotation via Us >>> GO
Polishing Performance Results
Fiber End Face Inspection Results
High-quality end-face polishing with no white spots, no scratches, and clearly visible fiber edges.
Insertion Loss & Return Loss Test Results
| Connector Type |
SM/UPC |
SM/APC |
MM/UPC |
| Insertion Loss |
≤0.20dB |
≤0.20dB |
≤0.50dB |
| Return Loss |
≥55dB |
≥55dB |
≥30dB |
Geometry Test Results
| Parameter |
UPC Criterion |
APC Criterion |
| Radius of Curvature |
5-25mm |
5-12mm |
| Apex Offset |
0-50μm |
0-50μm |
| Fiber Height |
-100~+50μm |
-100~+50μm |
| Angle |
n/a |
8.00+/-0.50° |
