High-precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity and 98% First Pass Yield for Patch Cord Production

1
MOQ
$729.65-765.25
Price
High-precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity and 98% First Pass Yield for Patch Cord Production
Features Gallery Product Description Request A Quote
Features
Specifications
Model: CLX-02E
Net Weight: 28 Kgs
Machine Size: L*W*H 240*240*260mm
Polishing Plate Size: 127mm(5 Inch)
Polishing Capacity: SC 36 Max,LC 52 Max
Height Plate Jump: <10um
Power Input: 110~230VAC 50Hz/60Hz
Electric Power: 126w
Relative Humidity: 15%~85%
Work Temperature: 8℃~45℃
Rotation Plate Speed: 140 Rpm
Pressure Configuration: 21 ~ 36 N/cm2
Noise Level: <50 DB
Insertion Loss: ≤0.20dB
Return Loss: ≥55dB
Highlight:

High-precision Fiber Optic Polishing Machine

,

48 pcs MU/LC capacity Optical Fiber Polisher

,

98% first pass yield Patch Cord Polishing Machine
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: CLX
Model Number: CLX-02E
Payment & Shipping Terms
Product Description

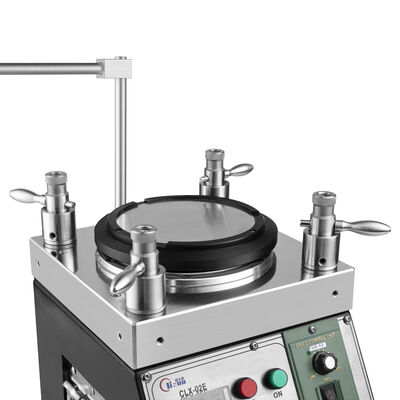

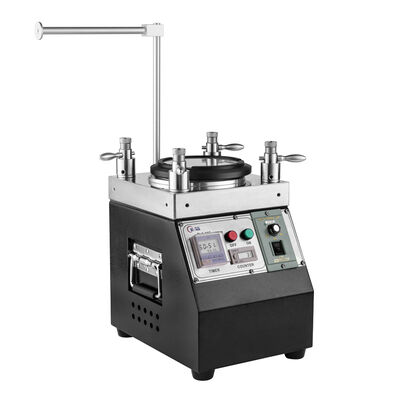

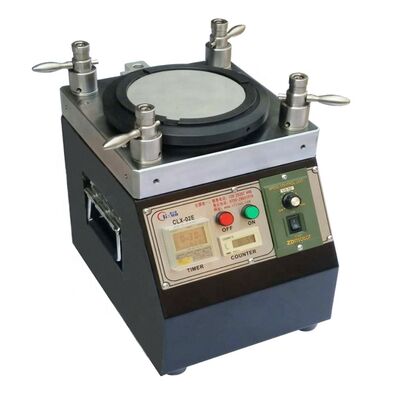

Four Corner Optic Cable Connector Polisher
Professional Optical Fiber Polishing Machine for Patch Cord Manufacturing
High-precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity and 98% First Pass Yield for Patch Cord Production 0
Product Overview
This fiber optical polishing machine is engineered based on international universal standards and extensive hands-on experience. It exceeds GR-326 end face geometry requirements and features advanced four corners compression with new I.P.C. holder technology, delivering industry-leading results.
Key Features
  • High-precision fiber optic polishing equipment
  • Quick-change polishing jigs for efficient operation
  • Planet orbit polishing trails with adjustable rotation speed (140RPM standard)
  • High capacity: 48 pcs for MU/LC connectors, 36 pcs for SC/FC/ST connectors
  • Exceptional first pass yield: 98%～100% end face quality
  • IPC structure with independent compression for each connector
  • 3D pass rate ≥98% (100% typical per IEC standards)
  • APC return loss ≥60dB, PC/UPC return loss ≥55dB
  • Insertion loss ≤0.20dB (typical)
  • High-quality stainless steel construction with 8-10 year lifespan
High-precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity and 98% First Pass Yield for Patch Cord Production 1 High-precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity and 98% First Pass Yield for Patch Cord Production 2 High-precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity and 98% First Pass Yield for Patch Cord Production 3 High-precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity and 98% First Pass Yield for Patch Cord Production 4
Technical Specifications
ParameterSpecification
Machine TypeCLX-02E
Machine Size240mm × 240mm × 260mm
Net Weight28kg
Power Input110~230VAC 50Hz/60Hz
Electric Power126W
Relative Humidity15%~85%
Work Temperature8℃~45℃
Rotation Plate O.D.127mm (5 inch)
Time Settings99 min 99 sec maximum
Rotation Speed140 rpm
Plate Jumpiness< 10 μm
Pressure Configuration21 ~ 36 N/cm²
Noise Level< 50 dB
Polishing Performance Results
Fiber End Face Inspection:
High-precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity and 98% First Pass Yield for Patch Cord Production 5
High-quality end-face polishing with no white spots, no scratches, and clearly visible fiber edges.
Insertion Loss & Return Loss Test Results:
High-precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity and 98% First Pass Yield for Patch Cord Production 6
Connector TypeInsertion LossReturn Loss
SM/UPC≤0.20dB≥55dB
SM/APC≤0.20dB≥55dB
MM/UPC≤0.50dB≥30dB
Geometry Test Results:
High-precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity and 98% First Pass Yield for Patch Cord Production 7
ParameterUPC CriterionAPC Criterion
Radius of Curvature5-25mm5-12mm
Apex Offset0-50μm0-50μm
Fiber Height-100~+50μm-100~+50μm
Anglen/a8.00+/-0.50°
Get a Free Quotation via Us >>> GO
Manufacturer Profile
High-precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity and 98% First Pass Yield for Patch Cord Production 8
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010 as an optical communications equipment company integrating research and development, production, after-sales service and technical services. We provide high-quality products, comprehensive after-sales service, and free technical support for optical fiber connector production challenges.
