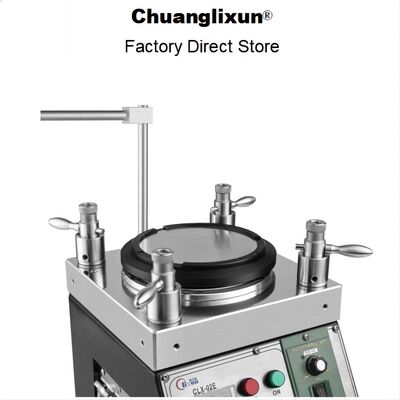

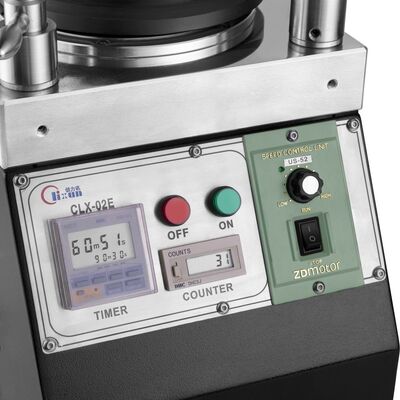

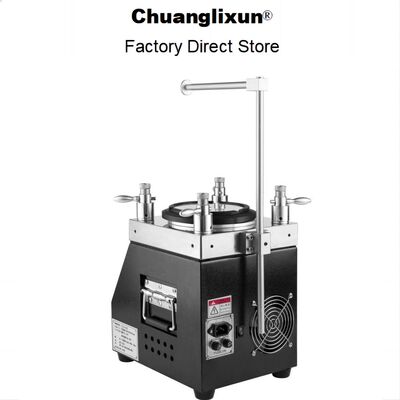

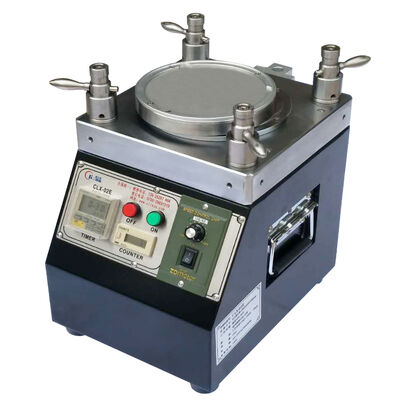

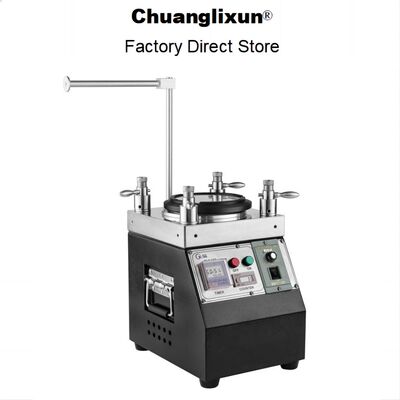

CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm
Product Details
| Power Supply: | 110~120VAC 220~230VAC 50Hz/60Hz | Power: | 126W |
|---|---|---|---|
| Weight: | 28kg | Size: | 290mm(L)*220mm(W)*340mm(H) |
| Working Temperature: | 10C°~40C° | Rotating Speed: | 0-150rpm |
| Connector Type: | SC/FC/ST/LC/E2000/SMA905/MU | Machine Size: | L 240mm × W 240mm × H 260mm |
| Relative Humidity: | 15%~85% | Rotation Plate O.D.: | 127 Mm (5 Inch) |
| Time Settings: | 99 Min 99 Sec (Max) | Rotation Plate Speed: | 140 Rpm |
| Plate Jumpiness Height: | < 10 Um | Noise Level: | 50 DB Libration |
| Insertion Loss: | ≤0.20dB (typical) | ||
| Highlight |
48 pcs MU/LC capacity Fiber Optic Polishing Machine,98% first pass yield Optical Fiber Polisher,Adjustable speed 140rpm Fiber Connector Polisher |
||
Product Description
- High-precision fiber optic polishing equipment
- Quick-change polishing jigs for efficient operation
- Planetary orbit polishing trails with adjustable rotation speed (typically 140RPM)
- Maximum capacity: 48 pieces for MU/LC connectors, 36 pieces for SC/FC/ST connectors
- High efficiency with 98%–100% first-pass yield for end face quality
- IPC structure fiber polishing fixture with independent connector compression
- Fiber optic connector polishing 3D pass rate ≥98% (typically 100% per IEC standards)
- Performance metrics: APC return loss ≥60dB, PC/UPC return loss ≥55dB, insertion loss ≤0.20dB (typical)
- High-quality heat-treated stainless steel construction for precision and durability
- Excellent stability with 8-10 year operational lifetime
| Parameter | Specification |
|---|---|
| Machine Type | CLX-02E |
| Machine Size | L 240mm × W 240mm × H 260mm |
| Net Weight | 28kg |
| Power Input | 110~230VAC 50Hz/60Hz |
| Electric Power | 126W |
| Relative Humidity | 15%~85% |
| Work Temperature | 8℃~45℃ |
| O.D. of Rotation Plate | 127 mm (5 inch) |
| Time Settings | 99 min 99 sec (Max) |
| Speed for Rotation Plate | 140 rpm |
| Height of Plate Jumpiness | < 10 μm |
| Noise Level | < 50 dB |
| Connector Type | SM/UPC | SM/APC | MM/UPC |
|---|---|---|---|
| Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.30dB |
| Return Loss | ≥55dB | ≥60dB | ≥30dB |
| Parameter | UPC Criterion | APC Criterion |
|---|---|---|
| Radius of Curvature | 5-25mm | 5-12mm |
| Apex Offset | 0-50μm | 0-50μm |
| Fiber Height | -100~+50μm | -100~+50μm |
| Angle | n/a | 8.00+/-0.50° |
Established in 2010, Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. is an optical communications equipment company integrating research and development, production, after-sales service, and technical services. We not only sell high-quality products and provide excellent after-sales service, but also offer free technical support to our customers. We provide effective solutions for technical problems encountered in optical fiber connector production.
Product Highlights
High-precision CLX-02E fiber optic polisher delivers 98-100% first-pass yield, supports SC/FC/ST/LC/E2000 connectors, and features adjustable speed (0-150rpm) with IEC-compliant geometry. Built with durable stainless steel for mass production, includes 1-year warranty and custom options.
