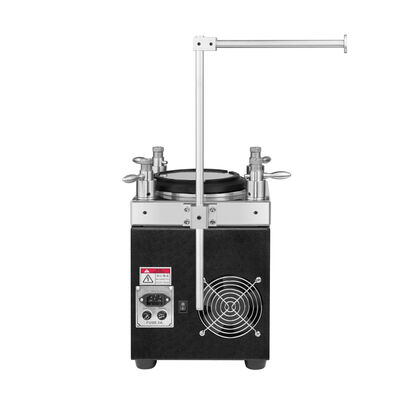

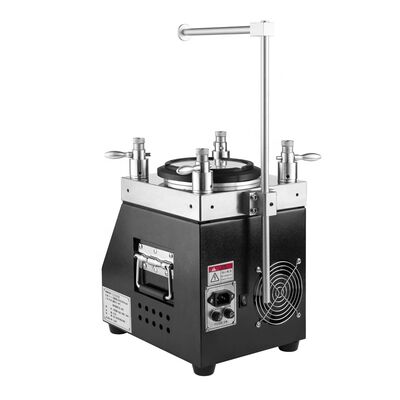

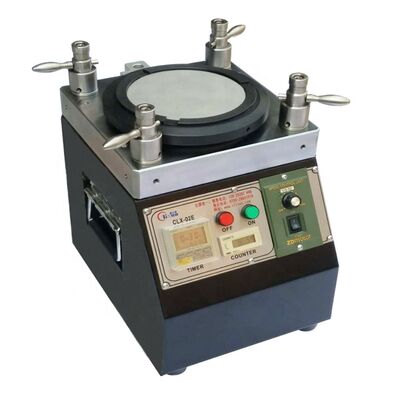

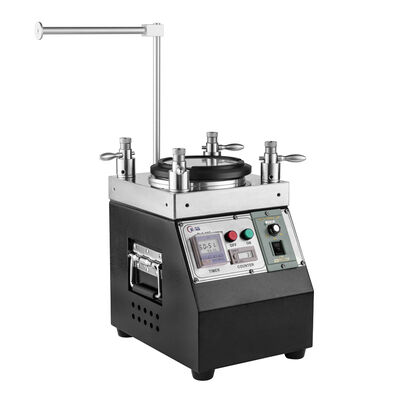

High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm for Fiber Patch Cord Manufacturing
Product Details
| Power Supply: | 220-230VAC 50Hz/60Hz | Weight: | 28 Kg |
|---|---|---|---|
| Polishing Plate Size: | 127mm | Rotating Speed: | 0-150rpm |
| Working Temperature: | 8C°-45C° | Machine Size: | L 240mm × W 240mm × H 260mm |
| Electric Power: | 126w | Relative Humidity: | 15%~85% |
| Time Settings: | 99 Min 99 Sec (Max) | Speed For Rotation Plate: | 140 Rpm |
| Height Of Plate Jumpiness: | < 10 Um | Pressure Configuration: | 21 ~ 36 N/cm2 |
| Noice Unloading Less: | 50 DB Libration | Working Status: | 0.25g 5~100Hz 10min |
| Stopping Status: | 0.50g 5~100Hz 10min | ||
| Highlight |
48 pcs MU/LC capacity Fiber Optic Polishing Machine,98% first pass yield Fiber Patch Cord Manufacturing Machine,Adjustable speed 140rpm Optical Fiber Connector Polishing Machine |
||
Product Description
- High-precision fiber optic polishing equipment
- Quick-change polishing jigs for efficient operation
- Planetary orbit polishing trails with adjustable rotation speed (140RPM standard)
- High capacity: 48 pcs for MU/LC connectors, 36 pcs for SC/FC/ST connectors
- 98-100% first pass yield for end face quality
- IPC structure with independent compression for each connector
- Excellent performance: APC return loss ≥60dB, PC/UPC return loss ≥55dB, insertion loss ≤0.20dB
- Durable heat-treated stainless steel construction with 8-10 year lifespan
| Parameter | Specification |
|---|---|
| Machine Type | CLX-02E |
| Machine Size | 240mm × 240mm × 260mm |
| Net Weight | 28kg |
| Power Input | 110-230VAC 50Hz/60Hz |
| Electric Power | 126W |
| Relative Humidity | 15%-85% |
| Work Temperature | 8℃-45℃ |
| Rotation Plate Diameter | 127mm (5 inch) |
| Time Settings | 99 min 99 sec maximum |
| Rotation Speed | 140 rpm |
| Plate Jumpiness Height | < 10 μm |
| Pressure Configuration | 21-36 N/cm² |
| Noise Level | < 50 dB |
| Connector Type | SM/UPC | SM/APC | MM/UPC |
|---|---|---|---|
| Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.50dB |
| Return Loss | ≥55dB | ≥55dB | ≥30dB |
| Parameter | UPC Criterion | APC Criterion |
|---|---|---|
| Radius of Curvature | 5-25mm | 5-12mm |
| Apex Offset | 0-50μm | 0-50μm |
| Fiber Height | -100 to +50μm | -100 to +50μm |
| Angle | n/a | 8.00±0.50° |
Product Highlights
High-precision CLX-02E fiber optic polishing machine ensures 98-100% first-pass yield with GR-326 compliance. Handles LC, SC, ST, FC connectors with IPC holder technology. Features adjustable speed (0-150rpm), 2-year warranty, and 8-10 year lifespan for mass production.
