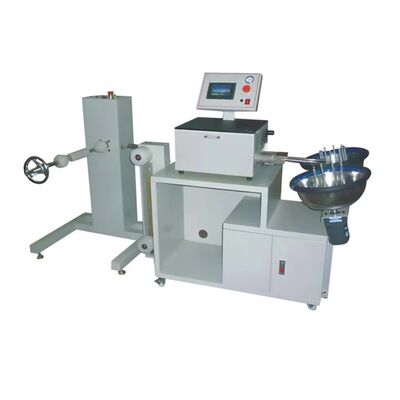

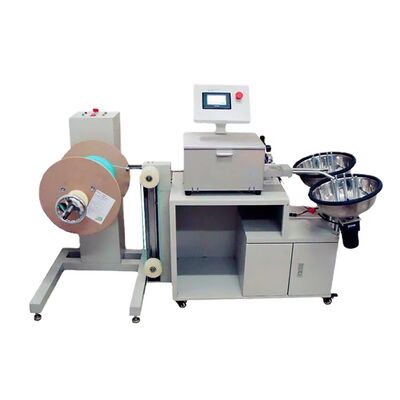

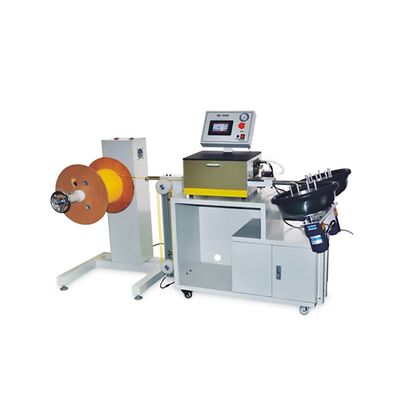

CLX-96 Automatic Fiber Optic Cable Cutting Machine with 1.6-2.1m/S Speed for 0.9MM-6MM Patch Cords and Touch Interface
Product Details
| Weight: | 135 KG | Power Supply: | 110~220V 50/60Hz |
|---|---|---|---|
| Space Size: | 200cm*65cm*95cm | Power: | 1500W |
| Cutting Accuracy: | Lam≤2‰ | Operating System: | GD94 Chinese And English Touch Interface |
| Cable Diameter: | 0.9MM-6MM | Cutting Speed: | 1.6-2.1m/S |
| Cutting Length: | 1 To 2000 Mtrs | Tolerance Cutting Length: | +/-0.3% |
| Pressure Source: | 0.4 To 0.6Mpa | Load Weight: | CSM: 75 Kgs, CRM:45 Kgs |
| Cable Drum OD: | Φ500 Mm (max) | Cable Drum ID: | 50 ~ 80 Mm |
| Working Temperature: | 0~40 Degree Centigrade | ||
| Highlight |
1.6-2.1m/S Cutting Speed Fiber Optic Cable Cutting Machine,0.9MM-6MM Cable Diameter Automatic Fiber Optic Cutter,Chinese & English Touch Interface Patch Cord Manufacturing Machine |
||
Product Description
- Specifically designed for ø 0.9MM to ø 6MM optical fiber patch cords production
- Fully automatic operation with customizable cable length and cutter configuration
- Adjustable cable speed from 0-100% (60% recommended for optimal performance)
- Intelligent PLC module control system with automatic length tracking memory
- No cable automatic alarm and total cable length function memory
- Pigtail cable cutting and code data capabilities
- High-quality original pneumatic components with customs inspection exemption
| Parameter | Specification |
|---|---|
| Language Interface | Chinese & English Touch Screen |
| Cutting Length Range | 1 to 2000 meters |
| Cable Diameter Range | Φ1.00mm to Φ9.00mm (maximum) |
| Cutting Speed | 1.5 m/s |
| Cutting Length Tolerance | ±0.3% |
| Pressure Source | 0.4 to 0.6 MPa |
| Load Weight | CSM: 75 kg, CRM: 45 kg |
| Cable Drum Dimensions | OD: Φ500 mm (max), ID: 50-80 mm |
| Cable Collection Bowl | Φ180×110 mm |
| Machine Dimensions | 2m × 0.65m × 0.95m |
| Power Requirements | 110-220V AC 50/60Hz, 1500W |
| Weight | Net: 135 kg, Gross: 175 kg |
| Working Temperature | 0-40°C |
| Package Dimensions | 2200×850×1100 mm |
| Component | Model | Unit | Quantity |
|---|---|---|---|
| Cable Host | CLX-96 | set | 1 |
| Cable Dispenser | - | set | 1 |
| Machine Base | - | set | 1 |
| Manual | - | part | 1 |
| Warranty Card | - | part | 1 |
| Nine Core Wire | 3M | Pieces | 1 |
| Fifteen Core Wire | 1.5M | Pieces | 1 |
| Six Spoons | 1.5-10 | Pieces | 1 |
| Cable Cutter | - | Pieces | 2 |
| Power Cable | Standard | Pieces | 2 |
| Close | - | Pieces | 2 |
| Foot Switch | FS-01 | Pieces | 1 |
Product Highlights
CLX-96 automatic fiber optic cable cutter for FTTH patch cords. Handles 0.9-6mm cables with ±0.3% accuracy at 1.6-2.1m/s speed. Features PLC control, touch interface, and custom length settings. 1-year warranty.
