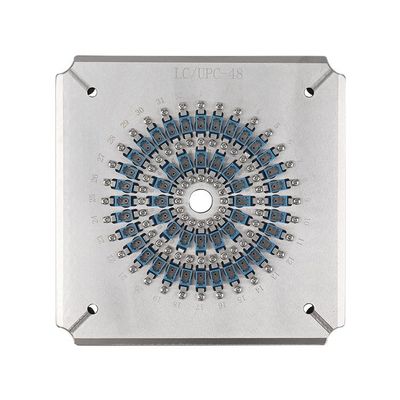

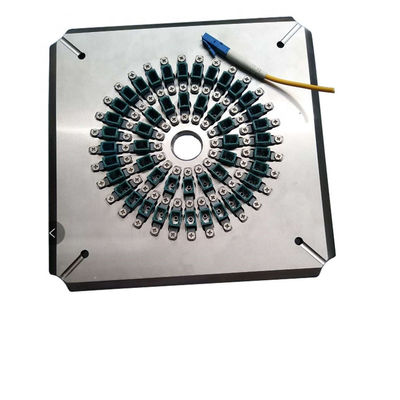

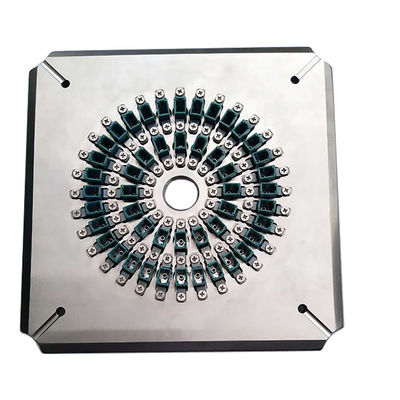

48 Ports LC UPC Polishing Fixture Jig Wear Resistant For Fiber Optical Connector
Product Details
| Machine Size: | 174*174*26mm | Net Weight: | 1.2kg |
|---|---|---|---|
| Max Capactiy: | 48 Connectors A Time | Application: | LC/UPC Connector Polishing |
| Suitable Machine: | CLX-02E And SEIKOH GIKEN SFP-550 Serials | Materials: | Harden Stainless Steel S136 |
| Highlight |
48 Ports UPC Polishing Fixture,Wear Resistant Polishing Fixture,48 Ports Polishing jig |
||
Product Description
48 Ports LC UPC polishing fixture for fiber optical connector polishing
Model:LC/UPC-48
Place of Origin:ShenZhen,China
Quick Detail:
• Designed for polishing manner with planet tray
• Using a new I.P.C jig technology (every ferrule is pressed singly) and making the finished yield rate much higher
• Dual APC &UPC polishing and Accommodating most styles of connectors
• High efficiency to deal with all kinds of connectors. The maximum polishing quantity for MU and LC connectors is 48 pcs; And maximum polishing quantity for SC, FC and ST connectors is 36 pcs
• The polisher was made by high quality stainless steel with heat treatment and it is high accuracy and durability
• Quick to change jigs, Easy and flexible to operate
• APC return loss as low as -70 dB, UPC return loss as low as -60 dB, Insertion loss 0.2 dB typical
• Super centering accuracy
• Excellent connector end-face polishing quality
Description
The IPC mechanism offers precise polishing pressure control for each ferrule being polished and provides a high quality polishing finish regardless of ferrule length. It enables the user to polish from 1 pc up to 48pcs at once without adjusting polishing pressure. Also there is no need to control ferrule length in case of re-polishing. For SC, LC ,FC,MU connectors, we use durable snap-in mechanism, which achieves reduced cycle time by easier and faster installation of connectors.
Specifications
| 1. Machine Size | 174*174*26mm |
| 2. Net Weight | 1.2kg |
| 3. Max capactiy | 48 connectors a time |
| 4. Application | LC/UPC connector polishing |
| 5. Suitable Machine | CLX-02E and SEIKOH GIKEN SFP-550 Serials |
| 6. Materials | harden stainless steel S136 |
Applications
1. Polishing LC conncetor for fiber optic patchcords manufacturing
2. LC/UPC connector polishing for fiber optic pigtail
FAQ
1. Are you a factory or a trader?
......we are factory.
2. What is your MOQ?
......MOQ 1 piece.
3. Do you provide sample services?
......Yes, we will provide samples(Samples at prices announced by chuanglixun).
4. How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity
5. How do we pay
......Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
......Yes, we provide customized services, According to customer requirements and description.
