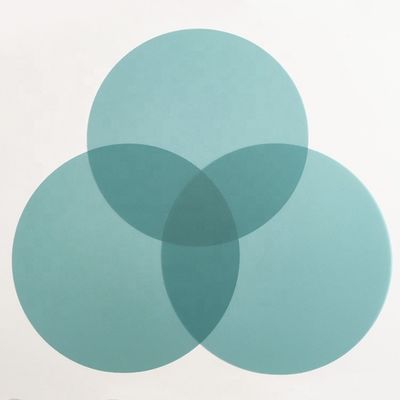

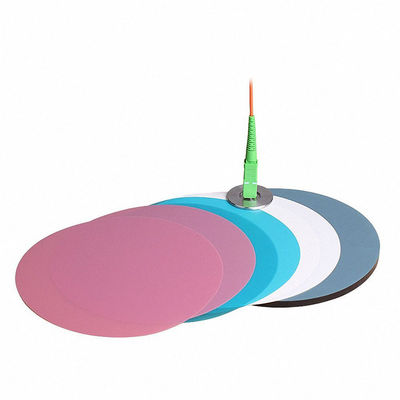

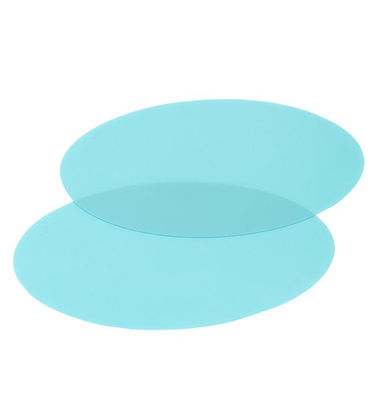

D9 9um Fiber Optic Diamond Lapping Paper Lapping Film For Optical Patch Cord

100 piece
D9 9um Fiber Optic Diamond Lapping Paper Lapping Film For Optical Patch Cord
Features Gallery Product Description Request A Quote
Product Name: Fiber Optic Polishing Films
Type: Fiber Optic Production Tools
Material: Diamond
Color: Green
Size: 127mm
Article Grade: 9 Um
Application: Epoxy Removal
Operating Temperature: -20℃ -- +60℃
High Light:

Patch Cord 9um Diamond Lapping Paper


Optical Patch Cord Diamond Lapping Paper


9um Fiber Optic Lapping Film

Basic Infomation
Place of Origin: Guangdong,China
Brand Name: CLX
Model Number: D9-9um
Payment & Shipping Terms
Packaging Details: Pe bag + outer box, or customized requirements
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 100000 Piece/Week
Product Description

D9 9um Fiber Optic Diamond Polishing Film Lapping Film for Optic Patch Cord


Fiber optic diamond polishing films are produced by using the latest ultra-precision coating technology. They are often used for precision polishing of optical fiber jumpers, semiconducting materials, metal rollers, etc.


1. Uniform dispersion of abrasive particles.

2. Good strength and flexibility.

3. High polishing accuracy.

4. Stable product quality, small difference in batch nails

5. Suitable for polishing with dry, water or oil.


Product description product name Diamond polishing film model D30,D9,D1
specification Circle diameter 127mm colour D30 green, D9 orange, D1 off-white
Use range This product evenly disperses the diamond prepolymer and the new polymer material, coats the surface of the high-strength film and then processes it by a high-precision cutting process. It is used for degumming, rough grinding and fine grinding of the optical fiber connector's fiber ferrule end face.
Main feature

1.High self-sharpness and stability, can provide continuous grinding force;

2.Large cutting force, short grinding time and high efficiency;

3.The coating has high adhesion, good scratch resistance and long service life;

4.After polishing, the end face of the fiber is fine, which is good for the next polishing.

Storage conditions Storage temperature 0-35 ℃ Storage humidity 20-80%
Shelf life 2 years
Service life 50 ~ 80 times, different service life according to different models of polishing machine and grinding process

1.Before use, clean the fiber polishing rubber pad, moisten it with a small amount of water, and attach a polishing film on it.
2.Wipe the coating surface of the polishing film with water, and squeeze out the air between the polishing film and the polishing pad;

3. Set the grinding time and pressure during use, please clean the surface after each use

Precautions Do not use organic solvents to scrub the surface of the polishing film

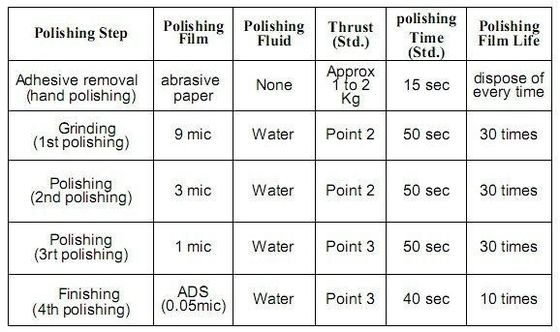

D9 9um Fiber Optic Diamond Lapping Paper Lapping Film For Optical Patch Cord 0

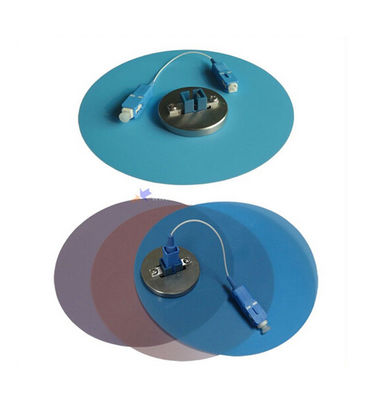

1. Cutting angle of fiber optic connector, rough grinding, medium grinding, fine grinding

2. Grinding and polishing of optical lens, crystals, LED and LCDs.

3. Polishing of Motor shafts, steering devices, Metal rollers & shafts, magnetic head, HDD, semiconducting materials, etc.


Part Number Material Application Packing
GA5D-30um Silicon Carbide Epoxy Removal 20pcs/pack
DR5D-9um Diamond Coarse Polishing 20pcs/pack
DG5D-5um Diamond Medium Polishing 20pcs/pack
DH5D-3um Diamond Medium Polishing 20pcs/pack
DI5D-1.5um Diamond Fine Polishing 20pcs/pack
DJ5D-1um Diamond Final Polishing 20pcs/pack
XF5D-0.02um Silicone Dioxide UPC Final Polishing 100pcs/pack
D30-30um Diamond Adhesive Removal 50pcs/pack
D9-9um Diamond Coarse Polishing 50pcs/pack
D5-5um Diamond Medium Polishing 50pcs/pack
D3-3um Diamond Medium Polishing 50pcs/pack
D1-1um Diamond Fine Polishing 50pcs/pack
ADS-127 Silicone Dioxide Final Polishing 100pcs/pack
SC-16um Silicon Carbide Medium Polishing 50pcs/pack
SC-3um Silicon Carbide Medium Polishing 50pcs/pack
SC-1um Silicon Carbide Fine Polishing 50pcs/pack
AA1-MFPS Flocked Film Without Abrasive MPO Polishing 50pcs/pack
CE1-MFPS Flocked Film Without Abrasive MPO Polishing 50pcs/pack
MFP610 Flocked Film Without Abrasive MPO Final Polishing 50pcs/pack
Remark: (1) All polishing films could be manufactured according to custom design.
(2) If you could not find the polishing films you want, please feel free to contact us via email or phone.
